• Model NO.：P2.6 mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Average Power Consumption：250W,Sqm
• Pixel Density：147456 Pixels,Sqm
• Scanning Mode：1,16 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC, ETL
• IP Rate：IP65
• Power Supplu：200W
• Brightness：5500nits
• Cabinet Size：500X500mm
• Minimum View Distance：2.6m
• Refresh Rate：>1920Hz
• Transport Package：Wooden Case Package
• Specification：Customized
• Trademark：JC
• Origin：Shenzhen, China
• HS Code：8531200000
• Production Capacity：50000PCS Per Month
• Package size per unit product：55.00cm * 55.00cm * 10.00cm
• Gross weight per unit product：8.800kg

Basic Info.

Model NO. P2.6 mm Pixel Configuration 1R, 1G, 1B Display Function Video Display, Image & Text Display, Text Display, Market Display Average Power Consumption 250W/Sqm Pixel Density 147456 Pixels/Sqm Scanning Mode 1/16 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, CCC, ETL IP Rate IP65 Power Supplu 200W Brightness 5500nits Cabinet Size 500X500mm Minimum View Distance 2.6m Refresh Rate >1920Hz Transport Package Wooden Case Package Specification Customized Trademark JC Origin Shenzhen, China HS Code 8531200000 Production Capacity 50000PCS Per Month

Packaging & Delivery

Package size per unit product 55.00cm * 55.00cm * 10.00cm Gross weight per unit product 8.800kg

Product Description

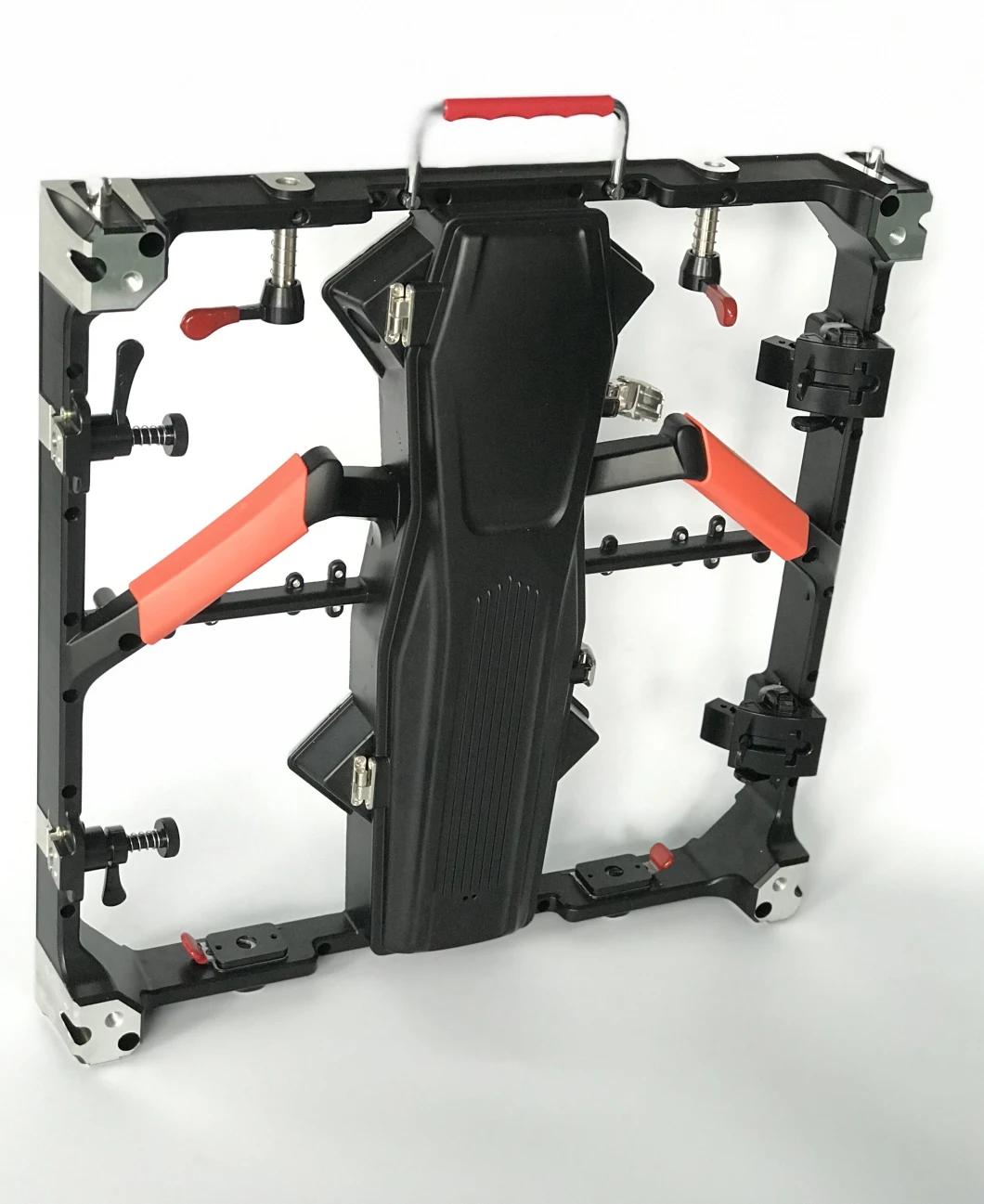

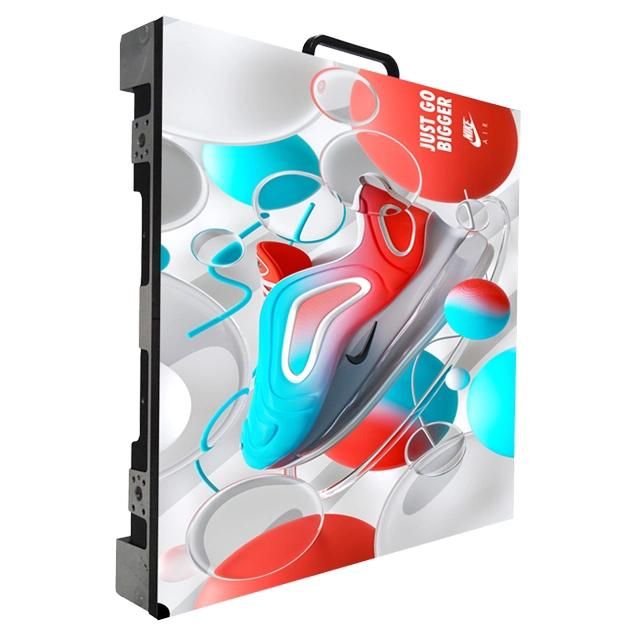

Curve Screen P2.6 Kinglight 500X500mm LED Cabinet Indoor LED Display Screen

Feature and Advantage

1.High brightness Contrast:4000:1, which is a very high level to ensure a vivid image of our LED display screen system

2. First-class LED chip: Supplied by Cree & other high strictly selected LED chip to ensure the long lift-time and high brightness of our LED display screen system

3.Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROIof  your LED display screen's investment.

4.Long-term Brightness:More 7000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.

5.Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system

6.Convenient Servicing: Front and rear cabinet access make the maintance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.

LED Screen Parameter

Technical DataModel	PH2.6
Pixel Pitch	2.6mm
Physical Density(pixels/m²)	147456
LED Shape & Size	SMD 3 in 1
LED Arrangement	1R1G1B
Module Size(mm)	250x250
Module Resolution	96*96
Drive Mode	Dynamic 1/30 Duty Constant Current
Brightness	≥2000cd/m²
Contrast(cd/m²)	≥2000:1
View Angle, 50% Brightness	140°/140°
Minimum View Distance	2.6m
Grey Scale	10bits/1024levels
Color Capacity	1.07billion
Maximum Power Consumption	1000W/m²
Ave.Power Consumption	380W/m²
Operation Power Source	AC90-260V 50-60HZ
Frame Frequency	60-85HZ
Refresh Rate	>1920HZ
Brightness Adjustment	0-100% 8 levels automatic
Gamma Correction	-5.0-5.0
Correction Scale Level	16bits
Color Temperature	5000-9300K
Brightness Correction	Pixels, Module, Cabinet Correction
Input Source Support	Composite, S-Video,Component,VGA,DVI,HDMI,SDI, HD_SDI
Control Distance	UTP CAT5E:100m;Multi-mode Fiber:50m;Single-mode Fiber:10km
Operating Temperature	-40°C - 65°C
Operating Humidity	10-90%RH
Operating Life Span	100,000Hours
MTBF	5000 Hours
Protection Ratings	IP45
Out of Control Rate	0.01%

Quick Details

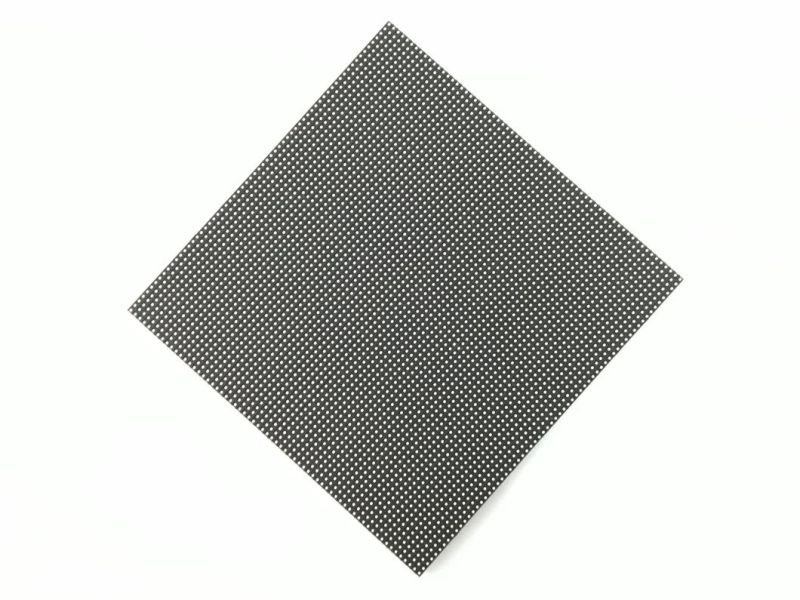

Led module

• Pixel:P2.6mm
• Size:250mmx250mm
• Resolution:96*96

Company information:

JINGCAN led factory's main products areconsist of rental led display, advertising led screen,
football stadiumperimeter, stage background video wall, traffic guiding display, special-shaped display like curve and round, led moving light, led Par light, led modules andlaser light, etc.

The outstanding features of our led products areenvironmental-friendly, energy-saving and long life-span. All of our LEDproducts have approved by CCC, CE, ROHS, FCC, ISO9001 quality certificates authorities. Furthermore, our LED products were exported to more than 90countries till now such as Sweden, USA, Brazil, France, Japan, Thailand, Italy,Australia, Spain and etc. Those LED products were widely used in both indoorand outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.

JINGCAN LED FACTORY Main LED Display Product Lines - Automatical Machines


Qualification Honor:

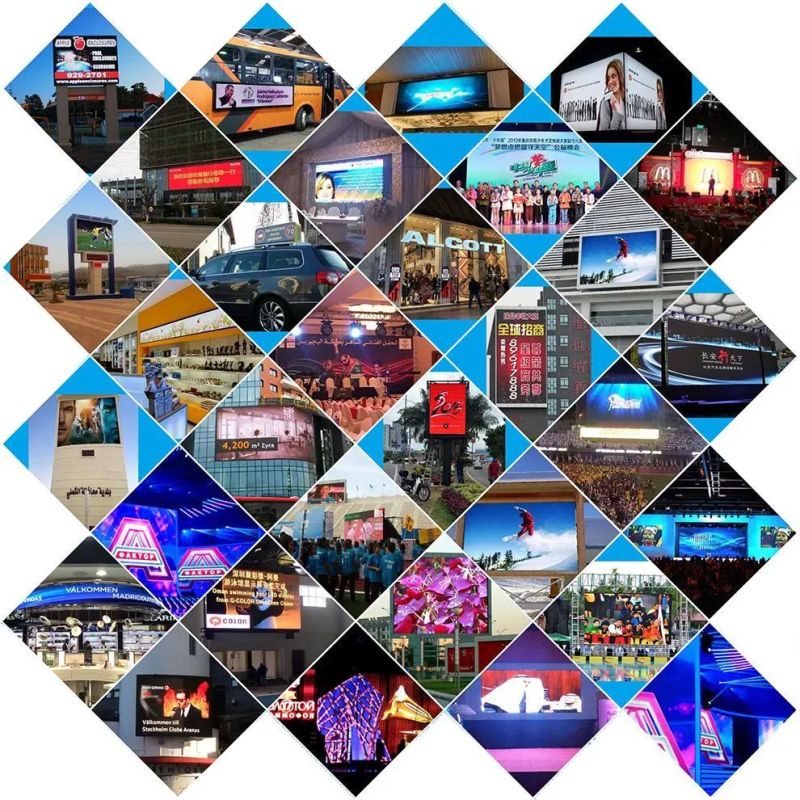

Product Project:


Packing and Shipping:





FAQ:
Q1. Can I have a sample order for led Screen?

A: Yes, we welcome sample order to test and check quality. Both for LED moduel or
a whole screen.

Q2. What about the lead time?

A:About 7~10 working days.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1 square meter or a moudle checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We mostly accectp FOB train term, but we can help you order and arrange shipping agent.
It usually take 20 30 day on sea. a few days for customer clearance

Q5. How to proceed an order for led Screen?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document  and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.

Q7: How to deal with the faulty?

A: Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.

Our service:
1. Your inquiry about our products or the price will be replied within 24 hours!
2. We provide 2 years for warranty and lifelong maintaining, you will appreciate our warm after-sale service.
3. We will delivery goods as you demand, you can choose the cheaper and more convenient way!
4. Apart from the Outdoor LED Display, Visionled also can offer you LED Pharmacy Cross Display,
LED Flexible Display, Indoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs
