• Model NO.：Outdoor LED Display P8
• Pixel Density：15625dots,M2
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Stage Performance
• Certification：CE, RoHS, CCC
• Product Name：Outdoor LED Display P8
• Driver IC：High Refresh IC
• Bightness CD/Sqm：5000CD,M2
• Grey Scale：65536 Degree
• Life Time：More 100, 000 Hours (50%)
• Mtbf：More 50, 000 Hours
• Operating Temperature：-30~-60t
• Humidity：10%-95%
• Color Temperature：12000-9500K
• Transport Package：The Factory Packaging
• Specification：256*128mm
• Trademark：hongking
• Origin：Shenzhen Chine
• HS Code：8528591090
• Production Capacity：5000 Sqm,Year

Basic Info.

Model NO. Outdoor LED Display P8 Pixel Density 15625dots/M2 Scanning Mode 1/4 Scan Display Type LED Video Display Application Stage Performance Certification CE, RoHS, CCC Product Name Outdoor LED Display P8 Driver IC High Refresh IC Bightness CD/Sqm 5000CD/M2 Grey Scale 65536 Degree Life Time More 100, 000 Hours (50%) Mtbf More 50, 000 Hours Operating Temperature -30~-60t Humidity 10%-95% Color Temperature 12000-9500K Transport Package The Factory Packaging Specification 256*128mm Trademark hongking Origin Shenzhen Chine HS Code 8528591090 Production Capacity 5000 Sqm/Year

Product Description

     Outdoor Fixed LED Advertising Signs Billboard P8 LED giant screen

1.Most of our product use material as follow:
    MBI 5124 IC or ICN2038S Driver IC
    g-energy power supply
    pcb 1.6mm ,mask and base
    2-3years warranty.
    Nationstar and king light LED lamp

 2. If you have interests in buying, pleased send A complete inquiry need to show:
      1. led screen panel pixel pitch, if you dont know how to choose, contact us
      2. led screen size:length ___m; width___m,or cabinet quantity;
      3. use for indoor or outdoor;  fixed installation or rental?
      4. intallation place pictures will be better;




Product Model	Outdoor Fixed F10	Outdoor Fixed F8	Outdoor Fixed F6	Outdoor Fixed F5	Outdoor Fixed F4
Pixel Pitch	10 mm	8 mm	6 mm	5 mm	4 mm
Module Size	320x160 mm	256x128 mm	192x192 mm	160x160 mm	256x128 mm
Module Resolution	32x16 pixels	32x16 pixels	32x32 pixels	32x32 pixels	64x32 pixels
LED	SMD3535	SMD3535	SMD3535 or SMD2727	SMD2727	SMD2525
Standard Cabinet Size	960x960 mm	1024x1024 mm	768x768 mm	960x960 mm	1024x1024 mm
Standard Cabinet Resolution	96x96 pixels	128x128 pixels	128x128 pixels	192x192 pixels	256x256 pixels
Standard Cabinet	Iron	Iron	Iron	Iron	Iron
Physical Density	10000 Pixels/m2	15625 Pixels/m2	27777 Pixels/m2	40000 Pixels/m2	62500 Pixels/m2
White Balance Luminance	≥6500 nits	≥7000 nits	≥6500 nits	≥6000 nits	≥6000 nits
Gray Scale per Color	65536 grades gray(16 bit)	65536 grades gray(16 bit)	65536 grades gray(16 bit)	65536 grades gray(16 bit)	65536 grades gray(16 bit)
Contrast	5000:01:00	5000:01:00	5000:01:00	5000:01:00	5000:01:00
Refresh Frequency	≥1920 Hz	≥1920 Hz	≥1920 Hz	≥1920 Hz	≥1920 Hz
Visual Angle(Horizontal/Vertical)	140°/140°	140°/140°	140°/140°	140°/140°	140°/140°
Max Power	600 W/m2	650 W/m2	900 W/m2	1000 W/m2	1000 W/m2
Average Power	200 W/m2	250 W/m2	300 W/m2	350 W/m2	350 W/m2
Input Voltage(AC)	110 V -240 V	110 V -240 V	110 V -240 V	110 V -240 V	110 V -240 V
Working Environment Temperature	-20ºC~50ºC	-20ºC~50ºC	-20ºC~50ºC	-20ºC~50ºC	-20ºC~50ºC
Operating Humidity	10%RH~95%RH	10%RH~95%RH	10%RH~95%RH	10%RH~95%RH	10%RH~95%RH
Control System	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI,SDI,DP

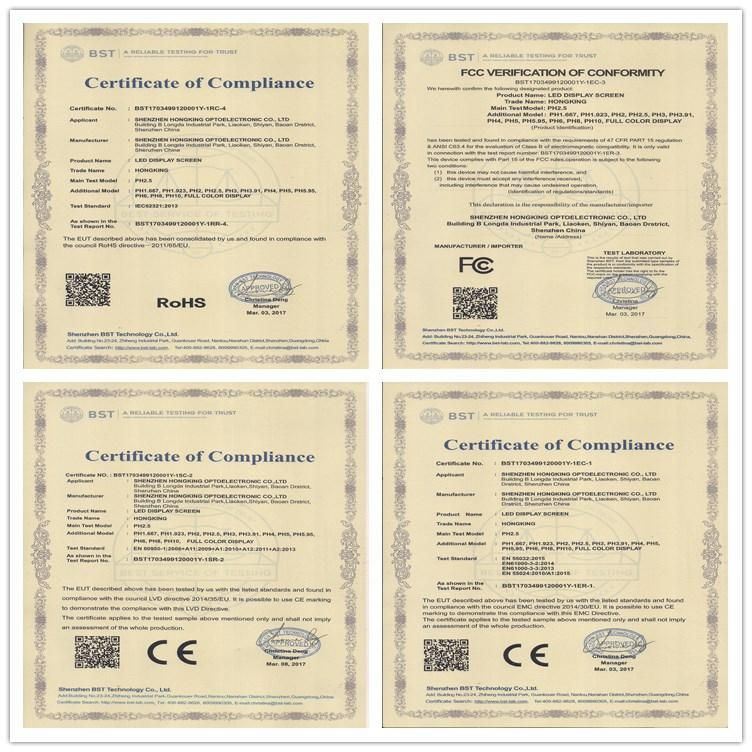

certification :

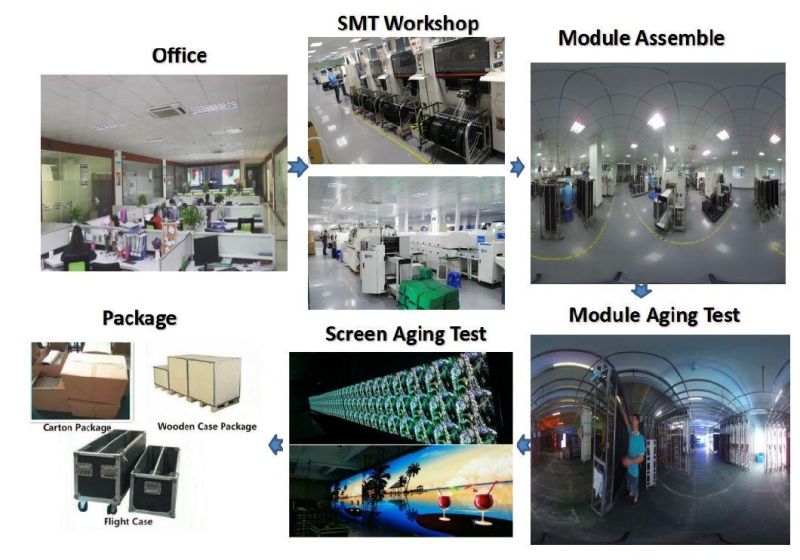

company  workshop :



Packaging :
Product is packed by carton, wooden case or flight cases.



Professional production:
Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen

Company descripition:
HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 6 years, we have made steady progress. Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC. We are fully certified by ISO standards.
