Outdoor Front Service LED Display Screen

Shenzhen Noveled Technology Co., Ltd.
  • Tube Chip Color：Full Color
  • IP Rating：IP65
  • Pixel Pitch：10mm
  • Pixel Configuration：1R, 1G, 1B
  • Display Function：Video Display
  • Average Power Consumption：300W , m²

Base Info

  • Model NO.：P10 Outdoor Front Service LED Display Screen
  • Pixel Density：10000 dot , m²
  • Scanning Mode：1,4 Scan
  • Display Type：LED Video Display
  • Application：Advertising
  • Certification：CE, RoHS, CCC
  • Module Size：160*160
  • Cabinet Size：1280*960
  • Cabinet Material：Steel or Aluminum
  • Warranty：Two Years
  • Transport Package：Wooden Case or Flight Case
  • Specification：CE ROHS CCC
  • Trademark：Noveled
  • Origin：Shenzhen China
  • HS Code：85312000
  • Production Capacity：3000 PCS,Week

Description

Front Service  Outdoor  LED displayPixel Pitch(mm)10mm12mm16mm20mmPixel density(/m2)10000694439063906LED TypeDIP346Viewing angle:H:120°,V:60°Brightness(nits)≥6500≥5000≥7000≥5500Drive Method1/4StaticColor Depth(nits)16384Refresh Rate(Hz)22002800Module Size(mm)160×160x28.5192×192x28.5256×256x28.5320×320x28.5Cabinet Size(mm)1280×960x178.51024×1024x178.51280×960x178.5Cabinet MaterialSteel/ Alumium Cabinet weight(kg)505568Voltage110/220VAverage.power(W / m2)250170250220Max.power(W / m2)750500750650IP GradeIP65/IP54Operating temperature/humiditytemperature:-20ºC~ 50ºC humidity:10~90%RHStorage temperature/humiditytemperature:-40ºC~ 60ºC humidity:10~90%RHLifetime(h)≥50000Compliant StandardCCC,CE,RoshFeatures of Outdoor Front Service LED Display Screen :
1 Front access design makes the installation and maintenance easier so that reduces the cost of money and time
2 Light weight with aluminum cabinet can make it amount in the wall or lift against the wall
3Advanced coated techniques of cabinet ensure display to operate in all weather and looks more fashion and luxurious

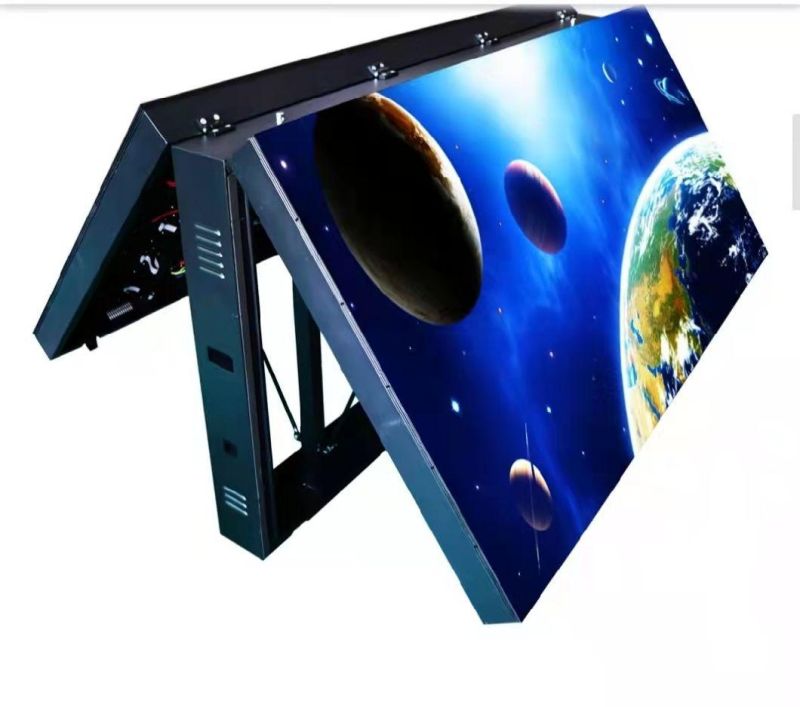

4 It can also make double sides front service LED signs

Outdoor Front Service LED Display Screen
