Outdoor Waterproof Billboard Outdoor HD Full Color LCD Screen LED Light Pole Advertising Screen for Smart City
Shenzhen Glare-LED Optoelectronics Co., Ltd.- Tube Chip Color:Full Color
- IP Rating:Frontside IP65,Backside IP54
- Pixel Pitch:6mm
- Pixel Configuration:1R, 1G, 1B
- Display Function:Video Display, Image & Text Display, Text Display, Market Display
- Average Power Consumption:1200W,480W
Base Info
- Model NO.:GLG-DG-060F
- Pixel Density:27777
- Scanning Mode:Static Scan
- Display Type:LED Dot Matrix Display
- Application:Eunnel, Urban Roadxpressway T
- Certification:CE, RoHS, CCC
- Brightness:5000CD,M2
- Size of PCB Board:192mm*192mm
- Display Area:960*1536
- Resolutions:160*256
- Weight:110kg
- LED Display Dimension:1030mm*1696mm*180mm
- Storage Capacity:4G,8g
- Transport Package:Wooden Carton
- Specification:16*8
- Trademark:GLG-LED
- Origin:China
- HS Code:8531200000
- Production Capacity:50000PCS,Month
Description
Street Lighting Pole LED Display Screenis a road light pole as the installation carrier, integrated with outdoor advertising, energy-saving display, public broadcasting, information release and other smart applications, can be customized.
Equipped with LED advertising media special system, it can realize LED intelligent lamp pole screen cluster control and advertising release. The terminal adopts T series full-color asynchronous control card, integrates 3G/4G wireless Internet access mode, and can access the Internet without any external devices, so as to realize intelligent wireless management and intelligent information release.
Product features
1,outdoor highlighting, HD, power saving;
2,3G/4G/ cluster control, remote synchronization update;
3, (light sensor) brightness automatic adjustment;
4, WIFI wireless network control;
5,Mobile APP control;
6,Smoke, humidity, temperature, PM2.5;
7, multi-window painting painting;
8,Energy saving,Automatically adjust brightness timing switch machine;
9,Dazzle colour,Dazzling hd, high brush highlight to meet the high speed camera sail shooting;
10,Convenient,Phone controls plug in emergency notifications at any time;
11,Synchronous,GPS images are played synchronously.
Product parameters
P6 Intelligent lamp pole screen parametersProduct model GLG-ZHDG P6 LED packaging SMD2727 Viewing Angle 140° Brightness ≥5000CD/M2 Pixel pitch 6mm Pixel density 27777pixels/M2 Pixel composition 1R1G1B Size of pcb board 192mm*192mm Display area 960*1536 Resolutions 160*256 Power Consumption 1200W/480W Weight 110KG Led display Dimension 1030mm*1696mm*180mm Display category Single sided Installation Back Hoop installation Storage capacity 4G/8G Viewing distance ≥6m Waterproof level Frontside IP65,Backside IP54 Temperature control system Air cooling Cabinets Material Galvanized sheet Protective glass NO The standard color Black Using the environment Outdoor The input power AC100/200 50/60HZ Working temperature -20ºC~+50ºC Working humidity 10~90%RH The working life 100000Hours Refresh rate ≥960HZ The control mode
4G/Lora Sync/ APP Control Software language English/Chinese etc

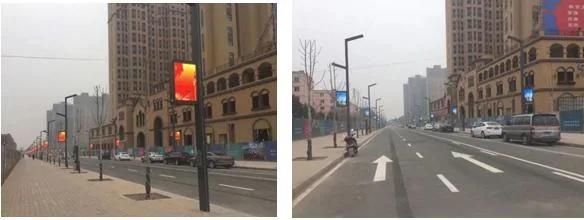

Application places
Pedestrian street, shopping malls, tourist attractions, bus stations and other application scenes: park light pole, commercial street light pole, pedestrian street light pole, tourist scenic spot light pole, low speed roadside light pole, citizen square light pole, commercial square light pole, tourist scenic spot light pole, smart community light pole, smart university light pole, commercial wall, etc.
Equipped with LED advertising media special system, it can realize LED intelligent lamp pole screen cluster control and advertising release. The terminal adopts T series full-color asynchronous control card, integrates 3G/4G wireless Internet access mode, and can access the Internet without any external devices, so as to realize intelligent wireless management and intelligent information release.
Product features
1,outdoor highlighting, HD, power saving;
2,3G/4G/ cluster control, remote synchronization update;
3, (light sensor) brightness automatic adjustment;
4, WIFI wireless network control;
5,Mobile APP control;
6,Smoke, humidity, temperature, PM2.5;
7, multi-window painting painting;
8,Energy saving,Automatically adjust brightness timing switch machine;
9,Dazzle colour,Dazzling hd, high brush highlight to meet the high speed camera sail shooting;
10,Convenient,Phone controls plug in emergency notifications at any time;
11,Synchronous,GPS images are played synchronously.
Product parameters
P6 Intelligent lamp pole screen parameters
Application places
Pedestrian street, shopping malls, tourist attractions, bus stations and other application scenes: park light pole, commercial street light pole, pedestrian street light pole, tourist scenic spot light pole, low speed roadside light pole, citizen square light pole, commercial square light pole, tourist scenic spot light pole, smart community light pole, smart university light pole, commercial wall, etc.
