• Model NO.：P3.91 led display
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP43
• Certification：CE, RoHS, CCC, ISO9001
• Product Name：P3.91-16s Indoor LED Display
• Driver IC：Mbi5124,Icn2153IC
• Bightness CD/Sqm：4000
• Grey Scale：65536 Degree
• Life Time：More 100, 000 Hours (80%)
• Mtbf：More 50, 000 Hours
• Operating Temperature：-30~-60t
• Humidity：10%-95%
• Color Temperature：6500K-9500K
• Warranty：Three Years Warranty
• Transport Package：Wooden Case Flight Case and Carton
• Specification：250*250mm
• Trademark：hongking
• Origin：Shenzhen China
• HS Code：8528591090
• Production Capacity：5000 Sqm,Year

Basic Info.

Model NO. P3.91 led display System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, RoHS, CCC, ISO9001 Product Name P3.91-16s Indoor LED Display Driver IC Mbi5124/Icn2153IC Bightness CD/Sqm 4000 Grey Scale 65536 Degree Life Time More 100, 000 Hours (80%) Mtbf More 50, 000 Hours Operating Temperature -30~-60t Humidity 10%-95% Color Temperature 6500K-9500K Warranty Three Years Warranty Transport Package Wooden Case Flight Case and Carton Specification 250*250mm Trademark hongking Origin Shenzhen China HS Code 8528591090 Production Capacity 5000 Sqm/Year

Product Description

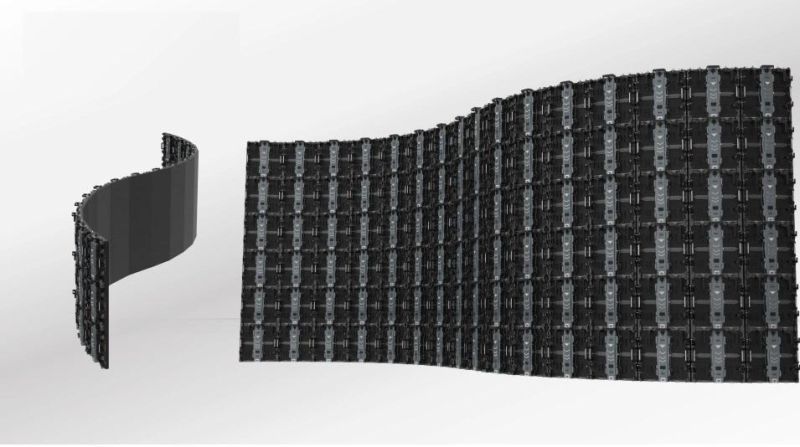

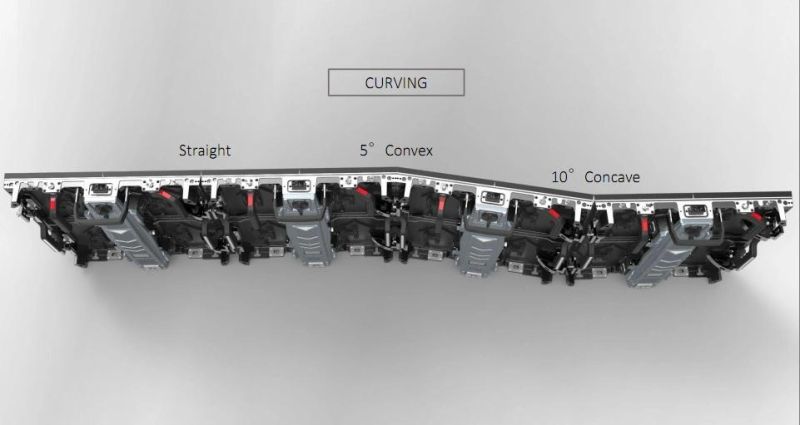

P3.91 Curve LED Display Screen Signage for Advertising

1.Most of our product use material as follow:
    MBI5124IC  Driver IC
    g-energy power supply
    pcb 1.6mm ,mask and base
    All our product have three years warranty.

• Contact person : Phebe
• Mobile phone: 00 86 177 2460 2807





NO.:	Product name	P3.91  rental led display
1	Pixel Pitch(mm)	3.91mm
2	Pixel configuration	1R1G1B/SMD1921
3	Pixel density	65536 dots/m2
4	Brightness	4000cd/m2
5	Module size(W*H)	250 mm×250mm
6	Module Resolution (W*H)	64dots x 64dots
7	Module weight	400g
8	Cabinet size (W*H)	500mm×500mm
9	Drive IC	MBI5124
10	Drive mode	1/16 scan
11	Viewing Angle(V/H)	140 ºC
12	Grey Scale	65536 degree
13	Life time	>100,000 Hours (50%)
14	MTBF	>50,000 Hours
15	Operating Voltage	AC110V/220V±10%
17	Screen Power Consumption	Max: 780w/m2; Average:280w/m2
18	Input Power Frequency	50/60Hz
19	Operating temperature	-30--60ºC
20	Humidity	10%-95%
21	Refresh Rate	≥1920HZ
22	Control Method	Synchronized with computer monitor
23	Color Temperature	6500K-9500K
24	LED control system	LINSN,Nova-star,Colorlight is selectable
25	Control Distance	100 m (no repeating); Optical fiber transmission: 500m- 15km
26	Accepting signal with video processor	PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI
27	Systems Operating Platform	Windows Xp / Windows 7 / windows 8 /8.1 / windows 10

Professional production:
Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen


    HONGKING is a professional manufacturer of LED display screens over 6 years. We have strong R&D to ensure high end products with user-friendly design .
    The prices are very competitive due to our large-scale procurement of raw material.   We can help you to win more orders if you are distributors.End users will also be satisfied with our quality and price.
    We have CE, FCC and Rohs certificates. Our products are exported over 85 countries .We have rich experience in handling all possible problems when you import goods from China .
    We have a wide variety of products for you to choose from .All products are strictly tested before release to market and we test every LED screen 72 hours before delivery.
    Our sales are well trained to offer professional advice on your specific projects. Processional engineers are on standby, can offer guidance, on site technical support as requested.
    We offer 2-3 years warranty and life time maintenance .Even when warranty time expires , we only charge material costs
