• Model NO.：P0.9 to P10
• Pixel Density：160000 Pixels,M2
• Scanning Mode：1,16
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• LED Lamps：Epistar
• Driver IC：Constent Current
• PSU：5V 40A 5V 60A
• System：Nova,Linsn
• Brightness：800-6500nits
• Cabinet：Alu,Steel
• IP Rate：IP65 - IP31
• Weight：35kg,M2 (Aluminium)
• Refresh Rate：1920Hz-3840Hz
• Contrast Rate：3000:1
• Voltage：AC110-240V
• Viewing Distance：10-50meters
• Service Solution：Front + Rear Service
• Installation：Back Bolted Hanging
• Software OS：Windows
• Transport Package：Plywood Cases
• Specification：960*960mm
• Trademark：LEDventure
• Origin：China
• HS Code：8528591090
• Production Capacity：2000sqm,Month

Item

Full Color Indoor Outdoor Advertising Rental Curved Digital Mobile Flexible SMD Poster Window TV Perimeter Sport LED Screen Display with P1.2 P1.8 P2.5 Price

Model Number

P0.9 to 10mm

Pixel Pitch

P0.9 to 10mm

Pixel Density(pixels/M2)

10000-1137777 pixels

Pixel Configuration

SMD 3 IN 1

LED Type

Epistar, SMD

Module size(mm)

320x320mm/250x250mm/320x160mm/300*168.75mm

Module Resolution(pixels)

32*16 pixels/320*168 pixels

Min.Viewing Distance(m)

0.9-10m

Brightness(nits)

800-6500nits

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

400

Scan Mode

Constant current

Protection Level

IP65/IP54/IP31

Cabinet Size(mm)

960x960mm / 960x640mm / 960x1280mm / 1280x960mm



Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50HZ|60hz

Refresh Rate

1920hz-3840HZ

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

<100 meters

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

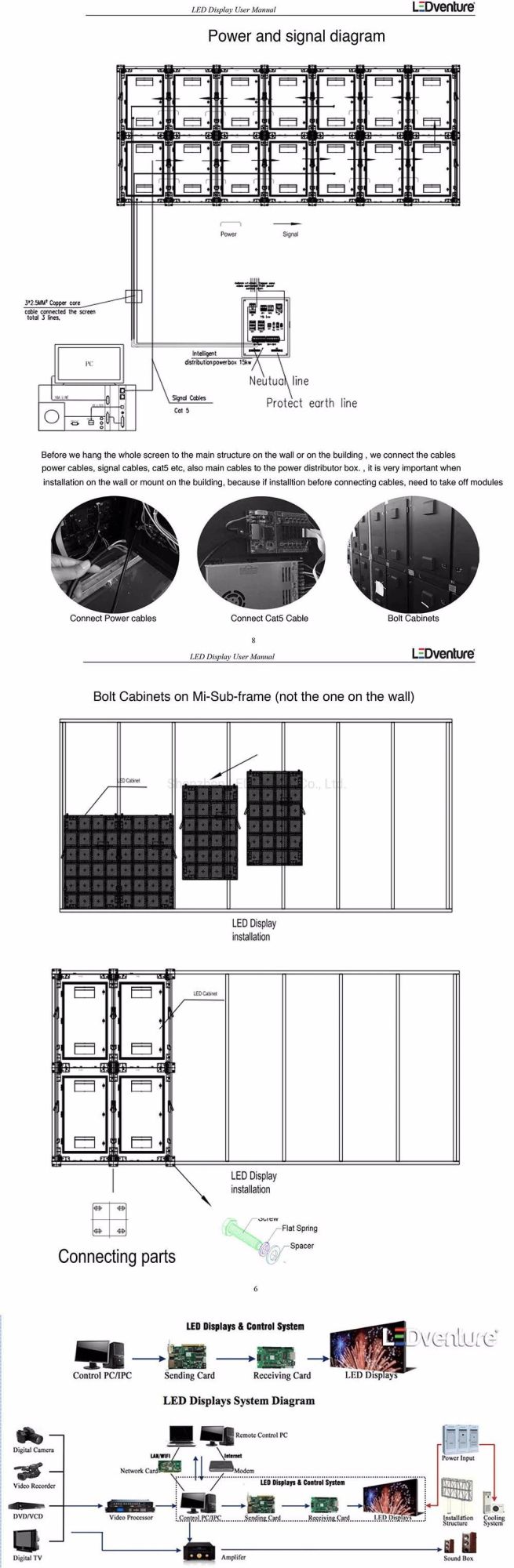

Part 5: Installation methods, outdoor front service back service LED Display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.

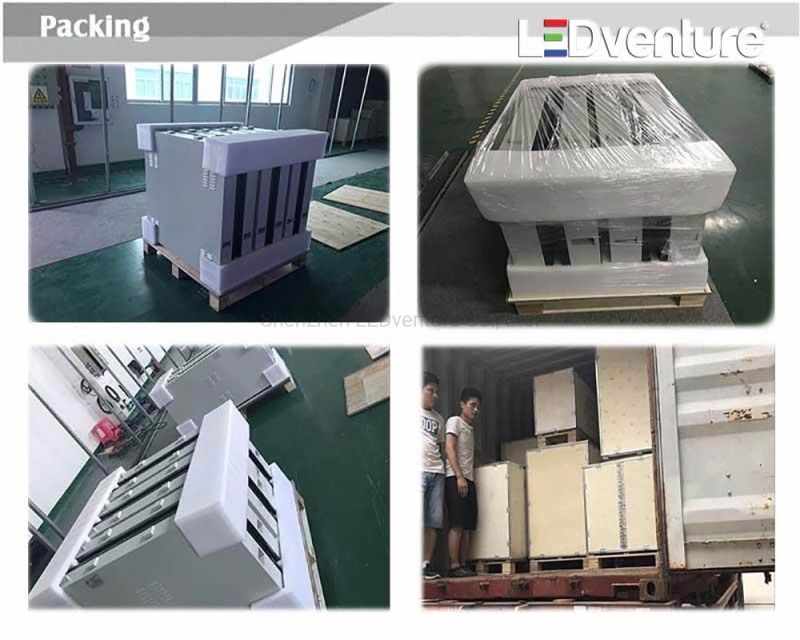

Part6: Packing information by plywood cases, packing well and easy to load,


Part7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part8: About LEDventure.

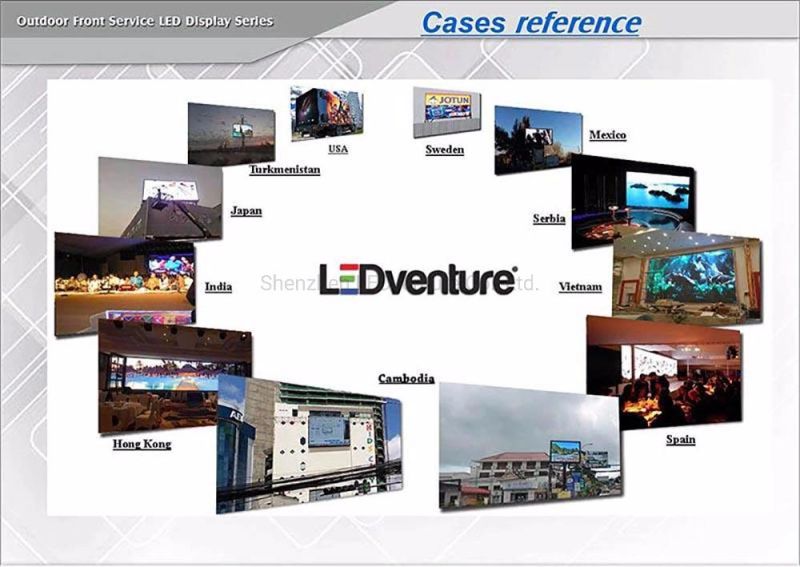

Part9 : LED display screen installation cases.

Most of our led display exported to Europe with high standards, and small percent to USA and Asia,




Address: LEDventure Buliding,Lebao Industrial Park,Fengxin RD,Guangming New District,Shenzhen,China.
