• Model NO.：P8, P10, P12, P16
• Pixel Density：3906 Pixels,Sq.M
• Scanning Mode：Static Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS
• Transport Package：Flight Case, Plywood Case, Carton.
• Specification：CE, ROHS, ISO9001
• Trademark：BST
• Origin：Shenzhen, China
• HS Code：8528591090
• Production Capacity：5000sqm,Month

Basic Info.

Model NO. P8, P10, P12, P16 Pixel Density 3906 Pixels/Sq.M Scanning Mode Static Scan Display Type LED Video Display Application Advertising Certification CE, RoHS Transport Package Flight Case, Plywood Case, Carton. Specification CE, ROHS, ISO9001 Trademark BST Origin Shenzhen, China HS Code 8528591090 Production Capacity 5000sqm/Month

Product Description

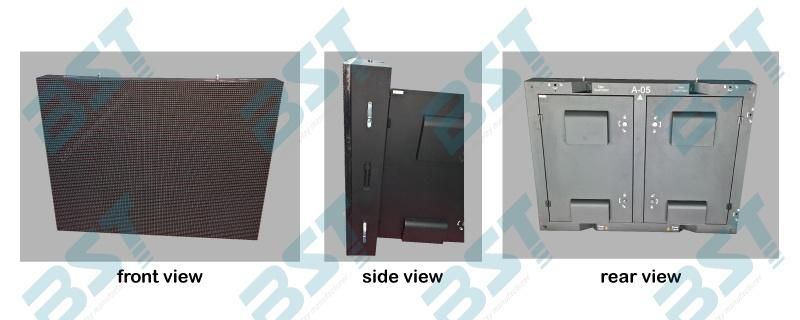

Fast delivery P16 DIP Full Color Outdoor Advertising LED Billboard


Key Benefits

Description:

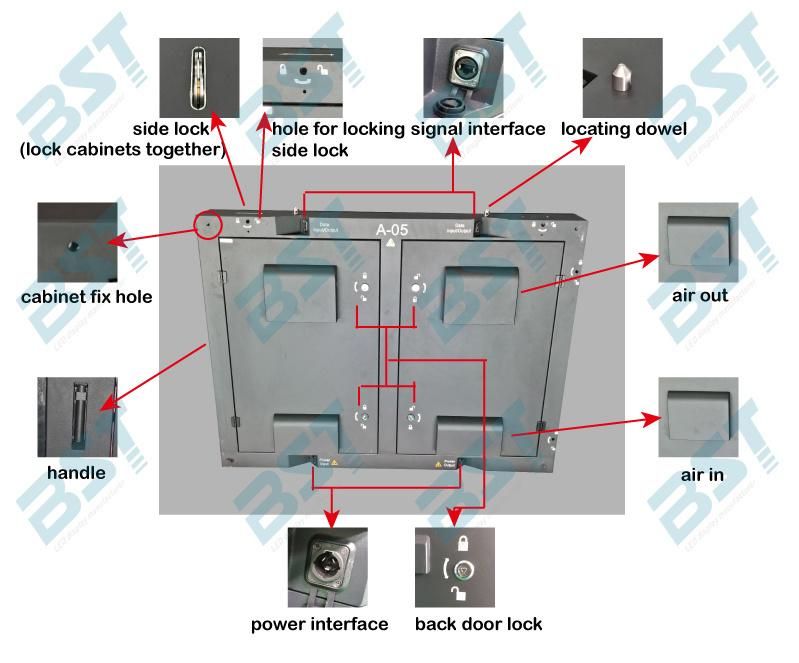

1. Front or rear maintenance option
Front or rear maintenance option, realizing module, power supply and receiving card front or rear maintenance, saving your maintenance cost.
2. Energy Saving≥50%, Environment Protection
Adopt top high brightness with low power consumption LED lamp, energy saving≥30%, if adopt 28 kinds of main patent technique, entire energy saving ≥50%, environment protection. Pioneer in outdoor mature HD LED Display, all advanced specifications 2 years earlier than others, successful cases around the world.
3. Free Back Service Path, Excellent Display Effect
Adopt dual service techniques, free back service path for all kinds of installation surroundings.
Broadcast level color scale, color temperature and brightness adjustable intelligent, smooth color, high color ratio, nature pictures.
4. IP65, Fast Installation and Maintenance
IP65 for modules, meets outdoor naked installation requirements.
Design based on module, which saves installation and maintenance cost, fast speed, maintenance with power on.
5. Firm, Flat and Backup Solution
Dark black surface, firm and flat, anti-UV module parts, which guarantees screen in firm shape.
Power supplier and control system, backup solution is available to guarantee.
Camera optional, Lan cable, 3G, WIFI, Multi-control, Ethernet for data transmittance options.
6. Antiseptic and durable, can be used outdoor in all weather.
7. LED module has easy & simple installation interface and user friendly software to ensure the user
friendly interface of the LED display system.
8. With full aluminum alloy structure for light weight and waterproof advantages, BST outdoor LED display
is an perfect external multimedia LED display system designed for changeable and adverse outdoor
environment.

LED DISPLAY, LED STADIUM SCREEN, LED OUTDOOR SCREEN, OUTDOOR BILLBOARD

Model	PH16
Pixel  Pitch	16mm
Unit  Size	1024mm x 1024mm
LED  Type	1R1G1B
Pixel / Unit	64x64
Unit  Weight	68kg(steel) or 48kg(Aluminum)
Viewing  Angle	H140°   V70°
Application	Storage-40~60° C,     Working-20~50° C
Protection  Level	IP65
Power  Consumption	840W/panel  Max
	420W/Panel  Ave.
Driving	Static
Frame  Refresh	≥60Hz
Data  Refresh  Rate	1200~4000Hz
Processing	16bit
Max    Brightness	5500-6500nits
Power  Supply	AC90-240V,   50~60Hz
MTBF	≥1000  Hours
Life  Span	≥50000  Hours
Pixel  Failure	< 0.0003

Why did you choose us?



1. Quality advantage: From material to finished product, from design to produce, we control all steps
2.Price Advantage: we have both the most competitive price in the market and better quality.
3. Performance Advantage: Best Equality, high consistency, Big viewing angle.
4. Service advantage:
a) Better service at same situation, better cooperation at same service.
b). We offered technical advice to our customers before buying our products.
c). Help customers to choose suitable products within budget with most economy benefit.
d). Design the framework structure to install our led products with technical drawing.
e). We offered software customization for our customer's specific usage.



FAQ



1. How to choose the rational product model of the LED display Corresponding with the LED display's best viewing distance, size, application & installation, there will be many optional product models fit for each specific project. ROI & Budget is also very important factors.



2. What is best viewing distance, how to calculate the best viewing distance of the LED display Best viewing distance refers to the distance from the LED display, where the people can see a whole and clear picture of the image on the LED display. There's 2 ways to calculate the best viewing distance: one is by the pixel pitch, one is by the diagonal. There's also the reason why there's different viewing distance for same model LED display, also different viewing distance for same size LED display.



3. Why there's different viewing distance for same model of the LED display & different viewing distance for same size of the LED display. There's 2 ways to calculate the best viewing distance: one is by the pixel pitch, one is by the diagonal. There's also the reason why there's different viewing distance for same model LED display, also different viewing distance for same size LED display.



Basic knowledge of 1RG1B led display:



A. What is LED?
LED is the abbreviation leds (LIGHT EMITTING DIODE), it's emit visible wavelengths led in the led video display industry
B. what is a pixel and pixel pitch?
The pixel is the smallest unit of light-emitting, consists of red, green and blue colors. The same as ordinary computer monitors.
Pixel pitch refers to the center of the distance between two adjacent pixels.
C. what is the DIP, SMT and SMD?
DIP is DOUBLE IN - LINE PACKAGE, dual-in-line assembly
SMT is FACE SURFACE MOUNTED technology, Is currently one of the most popular technology in the electronic assembly industry;
SMD is SURFACE MOUNTED DEVICE.
D. what is the LED display module?
The base unit determined by circuit and installation structure, has the display function, can simple assembling.
E. What is 3 in 1? What is its advantages and disadvantages?
is the RGB color of LED chips encapsulation SMT light vertical tied together according to certain spacing.
The advantages are: simple production, display effect is good,
The disadvantage is spectral color separation difficult, high cost;
