• Model NO.：p3.33
• Pixel Density：91818
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Size：1010*399*109mm
• Weight：14 Kg,PC
• Brightness：More Than 5000CD
• Control System：Andriod+4G+Ap+WiFi+GPS+8GB Flash
• Control Way：Asynchronies with PC,Mobile,Lab Top,Pad
• View Angle：V140 H140
• Transport Package：Plywooden Case
• Specification：one plywooden case contain 5 pc
• Trademark：NVD
• Origin：China
• HS Code：8531200000
• Production Capacity：5000PC , Month

Basic Info.

Model NO. p3.33 Pixel Density 91818 Scanning Mode 1/8 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, UL, CCC, ETL Size 1010*399*109mm Weight 14 Kg/PC Brightness More Than 5000CD Control System Andriod+4G+Ap+WiFi+GPS+8GB Flash Control Way Asynchronies with PC/Mobile/Lab Top/Pad View Angle V140 H140 Transport Package Plywooden Case Specification one plywooden case contain 5 pc Trademark NVD Origin China HS Code 8531200000 Production Capacity 5000PC / Month

Product Description

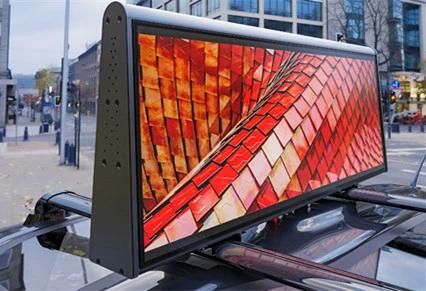

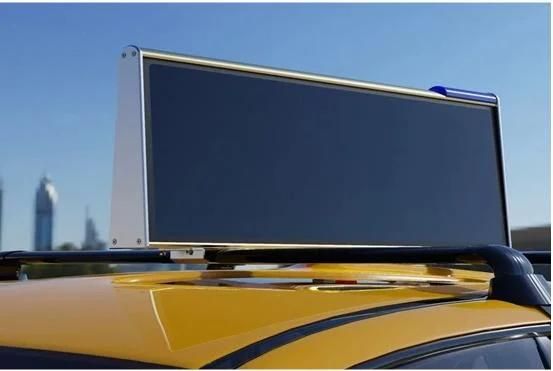

P3.33  Car top double face  LED Display
Specification

Item	TAXI-P3.33
Pixel pitch (mm)	3.33
LED type	SMD
Pixel density	91818
Module dimension (W*H)	480*320mm

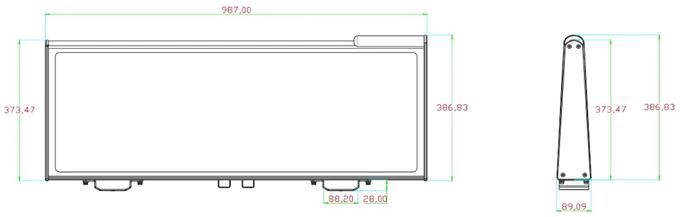

Cabinet dimension (W*H*D)	1010*399*109mm
Cabinet resolution (W*H*s)	384*128*2 pixels  ( double face)
Cabinet weight	14kg
Cabinet material	Aluminium
Access	Front access
Ingress protection	IP65
Brightness	>=5000
Viewing angle	V140° H140°
Contrast ratio	5000:1
Max.power	250W
Ave.power	150W
Input voltage	DC12V
Driving method	1/8
Refresh rate (HZ)	7680
Gray scale (Bit)	>16
LED lifespan (Hrs)	100000
Operation temperature (ºC)	-30~60
Storage temperature (ºC)	-40~80
Working humidity (RH)	15%~95%
Storage humidity (RH)	15%~85%
Control PC	Windows, Andriod, Mac OS, Chrome
Control way	Asynchronies with PC/Mobile/Lab top/PAD
Control system	Andriod+4G+AP+WiFi+GPS+8GB Flash

Product features

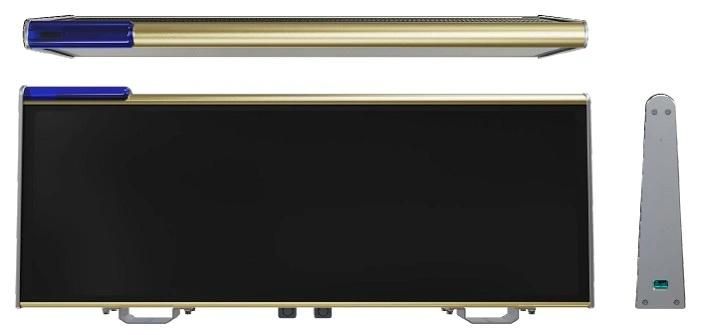

Light and thin  Slim and light architecture, cabinet weighs only 14kg;  The thinnest part of the cabinet measures only 3.8cm, aerodynamic design results in low wind load.


Exclusive design on outdoor , High Ingress protection
Wireless and remote control, smart play list Ingress protection rating up to 56, together with the transparent PC cover to protect diodes, Taxi roof LED display is totally weatherproof and shockproof. The power module embedded under the aluminum alloy, heat generated inside can be conducted through it. Noveled taxi roof LED display also featuring electrostatic prevention and lighting protection to make it more durable for the long-term usage.

Front access, effortless maintenance   Track design, slidable angle
Cabinet is accessible and serviceable from the side while module can be accessed from front, making the maintenance to be finished instantly and effortlessly.
LED display is fixed on the car by a track on it and the position of the display is slid able to make the display more flexible and content more readable.


Auto rightness, save power consumption
Brightness is adjustable based on different time and environment by the built brightness sensor .During daytime , the brightness is automatically increase up to Maximum brightness . During nighttime, brightness is automatically decrease to save energy.

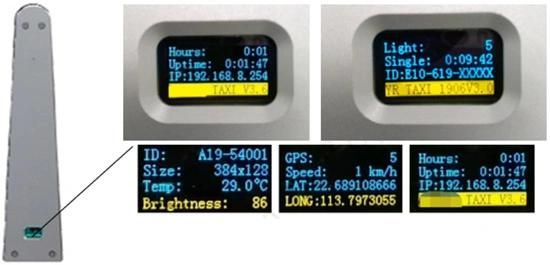

OLED display real-time information
GPS:  Speed,Longitude,Latitude,Altitude,GPS Number
Display: Brightness,Temperature,Total time,Uptime
Controller: Card ID,IP,Pixels
