• Model NO.：IX-P2.604S
• System Operating Platform：Windows
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP31
• Certification：CE, RoHS, UL, CCC, ETL
• Cabinet Material：Aluminum
• Weight：7 Kg,PCS
• Viewing Distance：3 Meters
• Brightness：1000-4500nits
• Refresh Rate：3840Hz
• Contrast Rate：3000:1
• Voltage：AC110-240V
• LED Lamps：Epistar
• Driver IC：Constent Current
• PSU：MW
• Service Solution：Front Service
• Installation：Back Bolted Hanging
• System：Nova
• Software OS：Windows
• Transport Package：Plywood Cases
• Specification：1000x250mm (optional)
• Trademark：LEDventure
• Origin：China
• HS Code：852859109
• Production Capacity：2000sqm,Month

Item

Indoor HD Pixels Series Window Advertising LED Video Wall

Model Number

Pixel Pitch

2.604mm

Pixel Density

147456 pixels/M2

Pixel Configuration

1R1G1B

LED Type

Epistar, SMD

Module Size

250x250 mm

Module Resolution

96*96 pixels

Min.Viewing Distance

3 meters

Brightness

1000-4500nits

Viewing Angle(

≤140°

Average Power Consumption

250 W/M2

Scan Mode

1/16 Scan

Protection Level

IP31

Cabinet Size

1000x250mm(Optional)

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50Hz/60Hz

Refresh Rate

3840hz

Color

65535 Levels

Horizontal/Vertical Viewing Angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

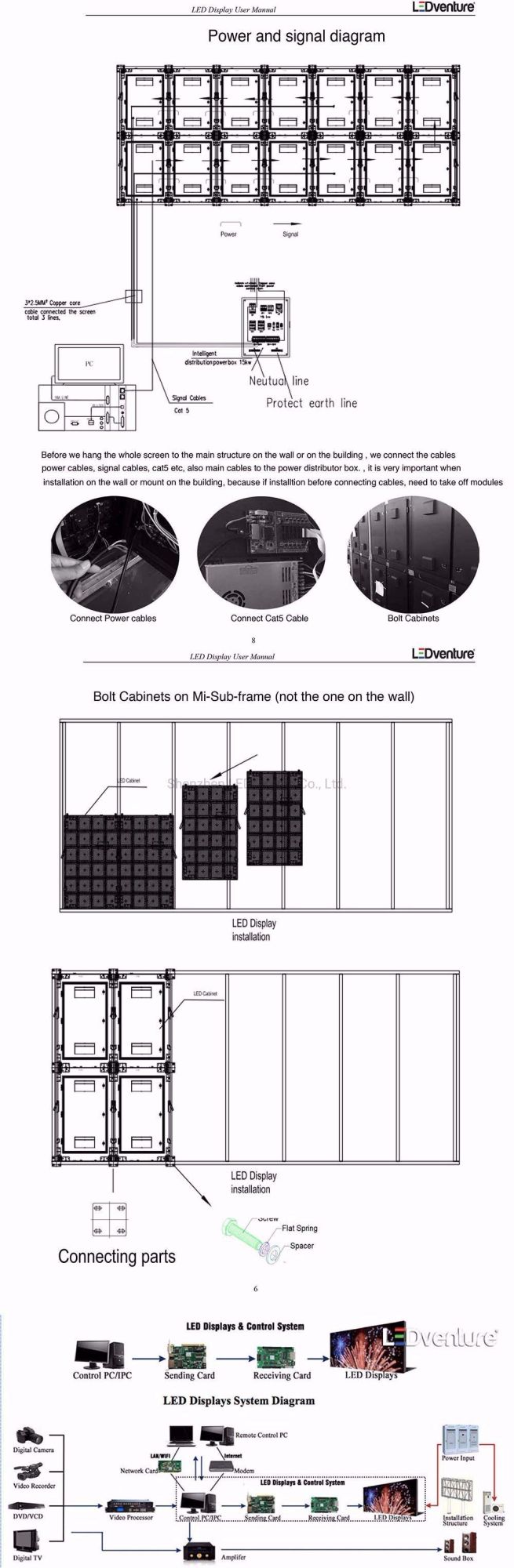

Part 5: Installation Methods.

Indoor led video wall available fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc



Part 6: Packing Information.

Packing by plywood cases, packing well and easy to load

Part 7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part 8: About LEDventure.

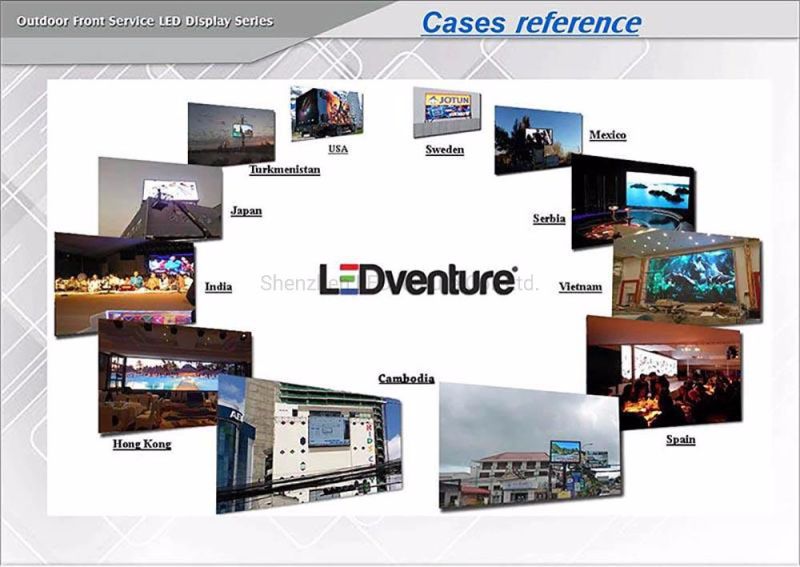

Part 9: LED Display Screen Installation Cases.

Most of our led display exported to Europe with high standards, and also exported to USA, South America and Asia

Address: LEDventure Buliding,Lebao Industrial Park,Fengxin RD,Guangming New District,Shenzhen,China.
