• Model NO.：P3.9
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP31
• Certification：CE, RoHS, UL, CCC, ETL
• Transport Package：Plywood Case
• Specification：1000x500mm Cabinet
• Trademark：LEDventure
• Origin：China
• HS Code：8528591090
• Production Capacity：4000m2,Month

Basic Info.

Model NO. P3.9 System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP31 Certification CE, RoHS, UL, CCC, ETL Transport Package Plywood Case Specification 1000x500mm Cabinet Trademark LEDventure Origin China HS Code 8528591090 Production Capacity 4000m2/Month

Product Description

P3.9 Indoor Transparent Glass Led Display Board

1.Main Features And Functions

Transparent LED display series is specially designed for windows advertising and building facades, which has high transparence, HD resolution for brand marketing and advertising, this series led display is very light weight, panel thickness only 60mm to ensure the less space during installation

High Transparence
70%-85% transparence
HD Resolution
High resolution,P3.91-P16mm
Thin & Light Weight
60mm thickness,5-7KG each panel
Energy Saving
30% lower consumption than traditional led display series.
High Refresh Rate
Good refresh rate for events and shops
Easy Installation
Standard connector,hang,or stack-up,convenient.


2. Main Technical Specifications

PARAMETERS	DESCRIPTION
Brightness	≥3000 Nits
Viewing angle	H: 120°; V: 120°
Panel weight	7kg
Panel size	W500mm x H1000mm
Panel material	Aluminum
Ingress protection	Front/Rear: IP43
Operating Temperature/Humidity	-20ºC - +50ºC/ 10-90%RH
Storage Temperature/Humidity	-40ºC - +60ºC/ 10-90%RH
Pixel configuration	1R1G1B
Pixel Pitch	3.91mm-7.81mm
Pixels per panel	128x128Dots
Physical density	32768pixels / m 2
Recommended viewing distance	4M
Color	4.4 trillion
Gray scale	65536 levels per color
Brightness control	256 levels of each color(manually),8 levels of each color(automatically)
Contrast ratio	1000:1
Processing depth	16bits
Video frame rate	1920Hz
Input voltage	110-220VAC+-10%
Input power frequency	50-60Hz
Input power <max>	450watts
Input power <typical>	160watts
Life Time	≥100,000 Hours
LED Wavelength	R:620-625nm  G:525-529nm  B:472-478nm
Driving Method	1/16 scan
LED Encapsulation	SMD1921
Input signal	RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION, etc
Certifications	CCC,CE,FCC,ETL,IP65,EMC

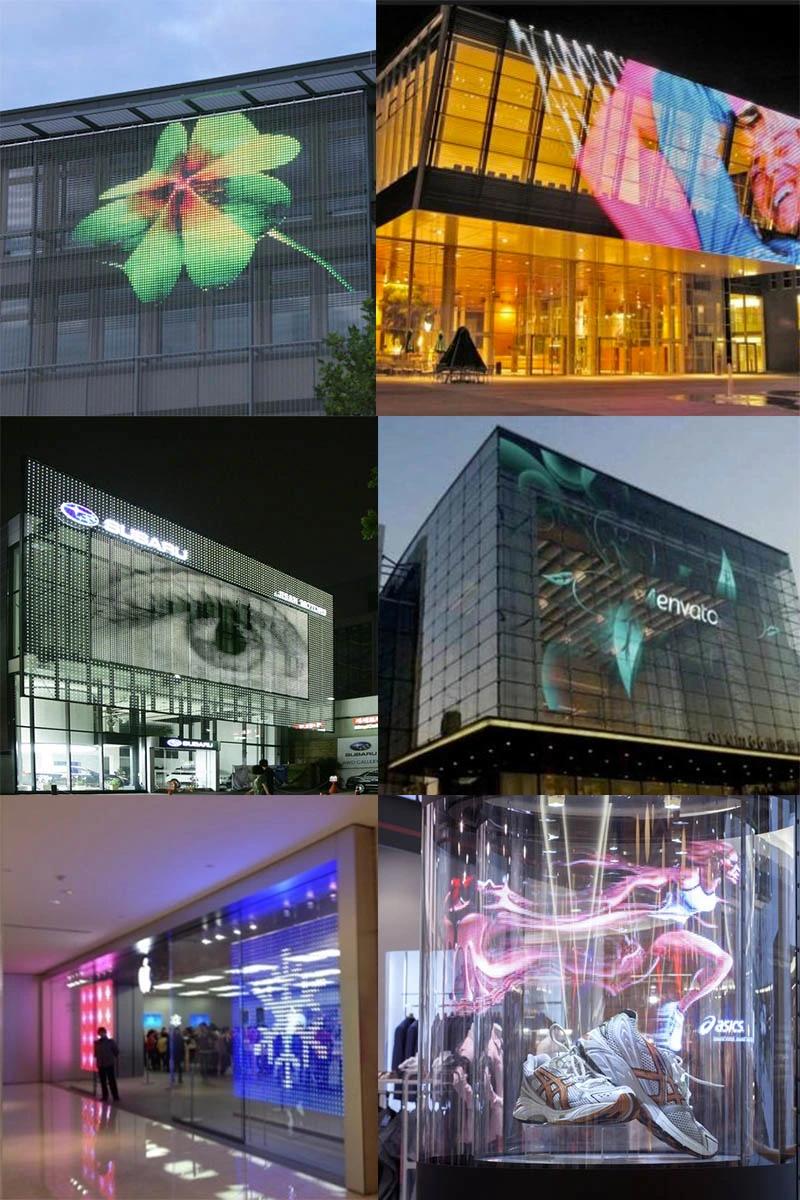

3. Application
LED transparent screen to retain the traditional LED display with easy control, low voltage DC drive, the combination of rich color performance, long life and other advantages at the same time. But also because of its unique advantages in the application of glass curtain wall, is widely used in urban lighting engineering, large-screen display system. At the same time can be used as indoor display curtain wall, is widely used in large-scale square lighting, stage sets, bars, high-end dance halls, urban landmarks, municipal buildings, airports, cars 4S shops, hotels, banks,
brand chain, Glass display both the practicality of the display, but also a certain degree of beauty and concealment.
