Full Color Outdoor P8 LED Electronic Display Panel Advertising Billboard Screen
Shenzhen LEDventure Co., Ltd.- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：8mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Average Power Consumption：220W , m²
Base Info
- Model NO.：OF-P8
- Pixel Density：15625 DOT,M2
- Scanning Mode：1,4 Scan
- Display Type：LED Video Display
- Application：Advertising
- Certification：CE, RoHS, UL, CCC, ETL
- Cabinet：Alu,Steel
- Weight：35,50 Kg,M2
- Brightness：>6500nits
- Refresh Rate：>1920Hz
- Viewing Distance：8m
- LED Lamps：SMD 3 in 1
- PSU：5V 60A
- Contrast Rate：3000:1
- Voltage：AC110-240V
- System：Nova
- Driver IC：Constent Current
- Transport Package：Plywood Cases
- Specification：960x960mm
- Trademark：LEDventure
- Origin：China
- Production Capacity：2000sqm,Month
Description
Overview
Product Description
Application Scenarios
Detailed Photos
Material Quality Level
Technical SpecificationItem Full Color Outdoor P8 LED Electronic Display Panel Advertising Billboard Screen Module Number P8mm Pixel Pitch 8mm Pixel Density 15625 pixels/M2 Pixel Configuration 1R1G1B LED Type Epistar,SMD Module Size 320x160mm Module Resolution 40*20 pixels Min. Viewing Distance 8m Brightness >6500nits Viewing Angle(degree) Installation Methods

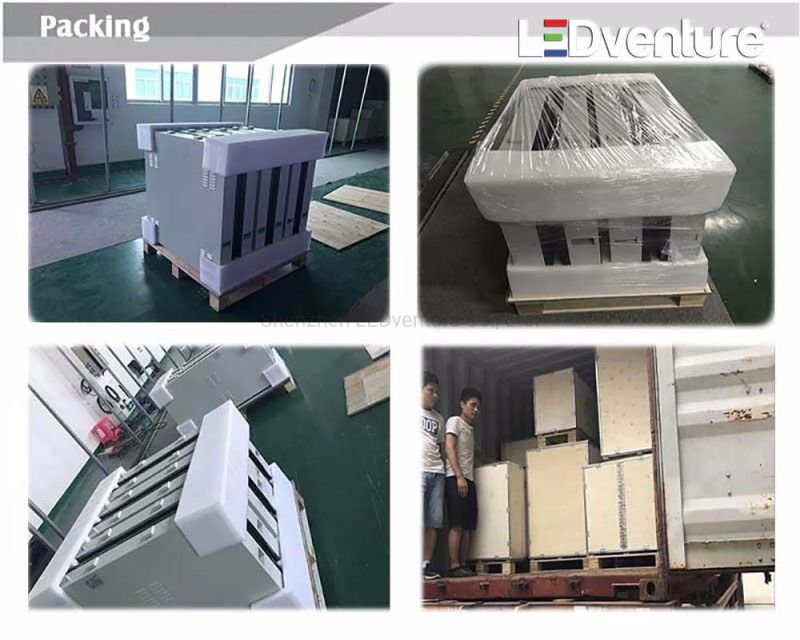

Packing Information
By plywood cases, packing well and easy to load.
FAQ
Q1: Can I get a sample before official order?
A: Sample orders are available for quality check and market test.
Q2: What is your payment method?
A: Our usually practice for payment is by T/T for the mass order. At least 30-50 % deposit in advance, and the balance should be paid before delivery.
Q3: What is your shipping and packing way?
A: We do plywood case or flight case as per customers' requests. For the mass order ( fit for a container), we do shipment by Sea and for others usually by express or airline.
Q4: Can we make any size of led display?
A: Nope, according the led module size or cabinet size.
Q5: How to install led display?
A: We will provide drawing of steel structure or hanging truss according to your requirements, you can install the led display according to the installation guide.
Q6: Is Available to print customer required logo on your LED product?
A: Surely it is. Please inform and confirm the logo design details with our team ahead of the production. Then, we will follow your requirements.

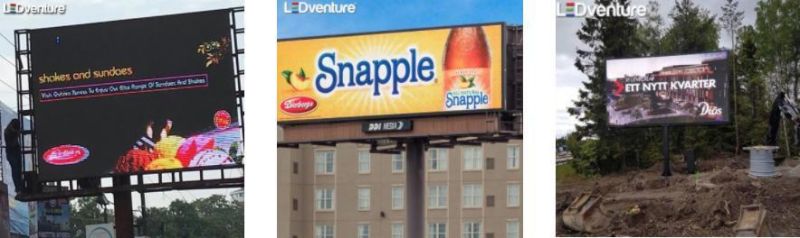

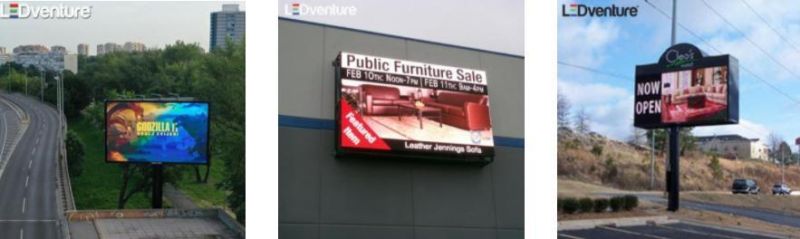

Application Scenarios

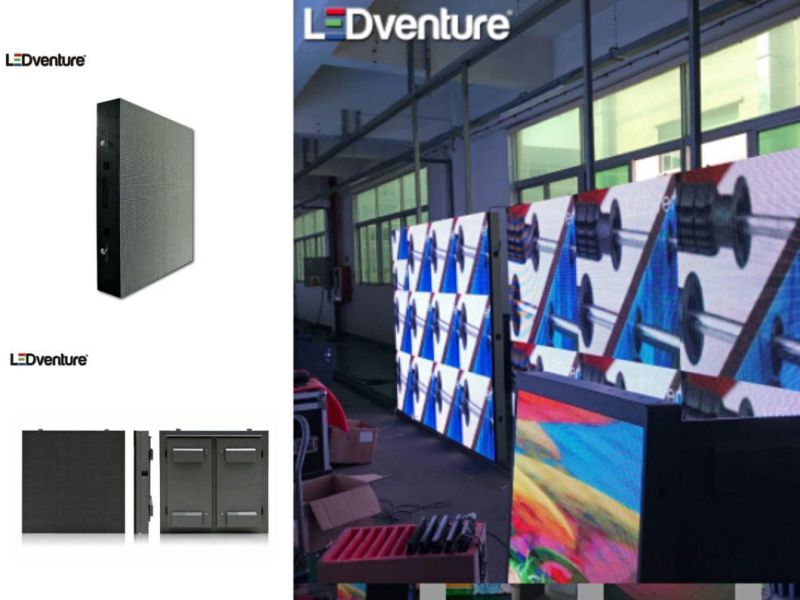

Detailed Photos
Material Quality Level
All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.
Technical Specification
Indoor led video wall available fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.
Packing Information
By plywood cases, packing well and easy to load.
FAQ
Q1: Can I get a sample before official order?
A: Sample orders are available for quality check and market test.
Q2: What is your payment method?
A: Our usually practice for payment is by T/T for the mass order. At least 30-50 % deposit in advance, and the balance should be paid before delivery.
Q3: What is your shipping and packing way?
A: We do plywood case or flight case as per customers' requests. For the mass order ( fit for a container), we do shipment by Sea and for others usually by express or airline.
Q4: Can we make any size of led display?
A: Nope, according the led module size or cabinet size.
Q5: How to install led display?
A: We will provide drawing of steel structure or hanging truss according to your requirements, you can install the led display according to the installation guide.
Q6: Is Available to print customer required logo on your LED product?
A: Surely it is. Please inform and confirm the logo design details with our team ahead of the production. Then, we will follow your requirements.
