• Model NO.：OX-P10
• Pixel Density：10000 Pixels,M2
• Scanning Mode：1,2 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Brightness：>6500nits
• LED Lamps：SMD 3 in 1
• Driver IC：Constent Current
• PSU：5V 60A
• Cabinet：Alu,Steel
• Refresh Rate：>3840Hz
• Contrast Rate：3000:1
• System：Nova
• Voltage：AC110-240V
• IP Rate：IP65
• Transport Package：Plywood Cases
• Specification：960x960mm
• Trademark：LEDventure
• Origin：China
• HS Code：8528591090
• Production Capacity：2000sqm,Month

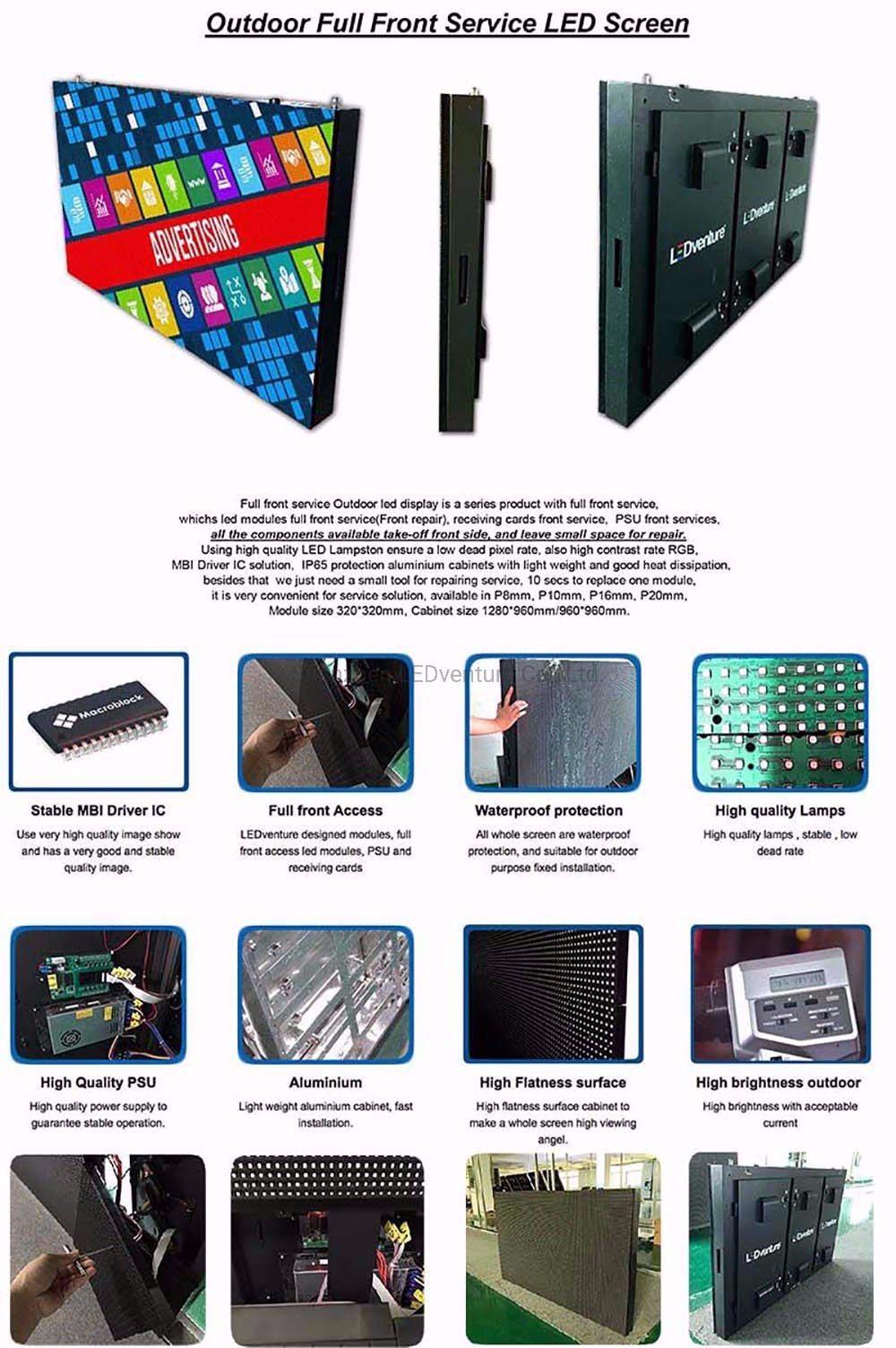

P3.91 P4.44 P4.81 P5.33 P6.67 P10 Full Color Outdoor Front Service LED Advertising Display Screen Billboard is very hot sale for outdoor media solution series, it is very cost effective, and high refresh rate more than 3840hz , also light weight design cabinet for options, image quality is top, running stable, resolution is high density, plus simple installation to make this series more and more popular in indoor outdoor media screens.

P3.91 P4.44 P4.81 P5.33 P6.67 P10 Full Color Outdoor Front Service LED Advertising Display Screen Billboard Product detail images.




All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.





Item

Pixel Pitch

10mm

Pixel Density

10000 pixels/M2

Pixel Configuration

SMD 3 IN 1

Module Size

320x320mm

Module Resolution

32*32  pixels

Min.Viewing Distance

10m

Brightness

>6500 nits

Viewing Angle(degree)

≤140°

Average Power Consumption

220 W/M2

Scan Mode

1/2 Scan

Protection Level

IP65/IP54

Cabinet Size

960x960mm

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50HZ|60hz

Refresh Rate

> 3840hz

Color

65535 Levels

Horizontal/Vertical Viewing Angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

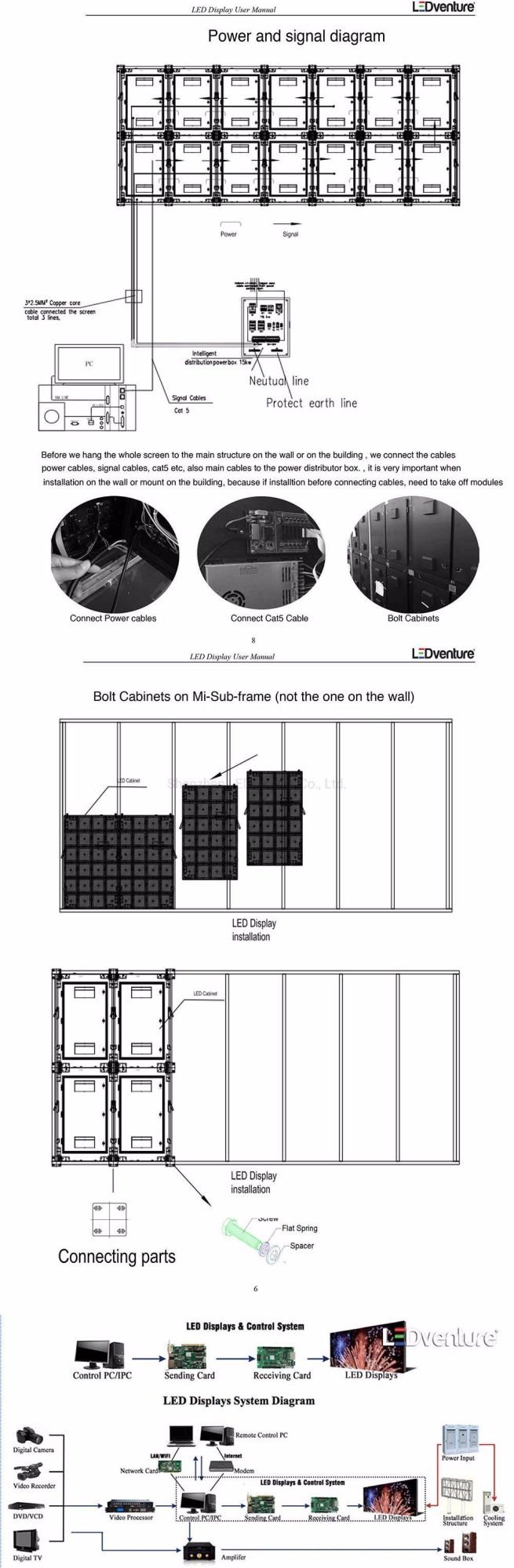

Outdoor front service back service LED Display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.

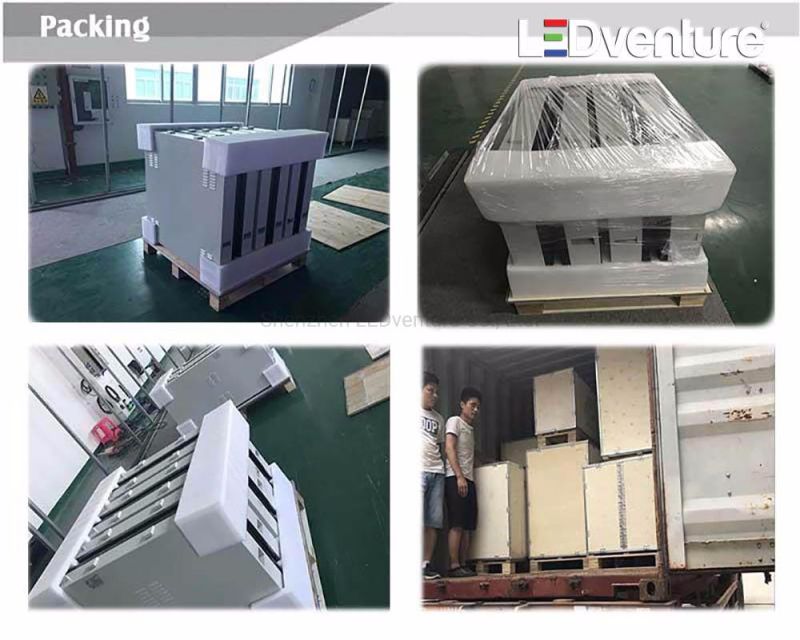

By plywood cases, packing well and easy to load.





ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.
