• Model NO.：P10 Outdoor LED Display
• Pixel Density：40000dots,M2
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Stage Performance
• Certification：CE, RoHS, CCC, ISO9001 ISO14001 FCC001 ISO14001 FCC

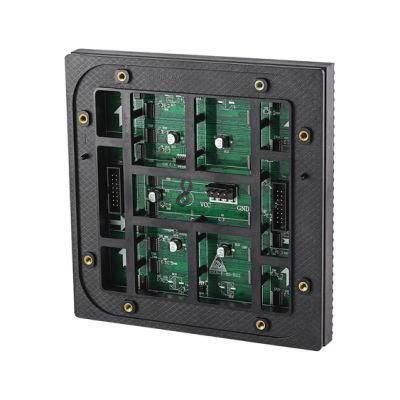

• Module Size：320*160mm
• Driver IC：Mbi5124 or Icn 2038s
• Bightness CD/Sqm：5000CD,M2
• Grey Scale：65536 Degree
• Life Time：More 100, 000 Hours (80%)
• Mtbf：More 50, 000 Hours
• Operating Temperature：-30~-60t
• Humidity：10%-95%
• Color Temperature：6500-9500K
• Refreshing Rate：1920Hz
• Transport Package：Flight Case, Wooden Case, Carton
• Specification：Outdoor LED Display P10
• Trademark：hongking
• Origin：China Shenzhen
• HS Code：8528591090
• Production Capacity：5000 Sqm,Year

Outdoor P10 led displayPixel Pitch(mm)10mmPixel configuration1R1G1B/SMD3535Pixel density10000dots/sqmBrightness 5000cd/sqmModule size(W*H)320mm×160mmModule Resolution (W*H)32 dots x 16dotsModule weight500gDrive ICMBI5124Drive mode1/4 scanViewing Angle(V/H)140 ºCGrey Scale65536 degreeLife time>100,000 Hours(80%)MTBF>50,000 HoursOperating VoltageAC110V/220V±10%Screen Power ConsumptionAverage:220w/sqmInput Power Frequency50/60HzOperating temperature -30--60degreeHumidity10%-95%Refresh Rate≥1920HZControl MethodSynchronized with computer monitorColor Temperature6500K-9500KLED control systemLINSN,Nova-star,Colorlight is selectableSupport  ModeHDMI 2.0(4k),DP 2.0(4K),HDMI 1.3(1080P),DP 1.2(1080P),3G-SDI(1080P),DVI(1080P),VGA(1080P),CVBS,USB drive,IP,4G,WIFISystems Operating PlatformWINDOWS(WIN7/8/10),MacOS,iOS,Android

company introduction :

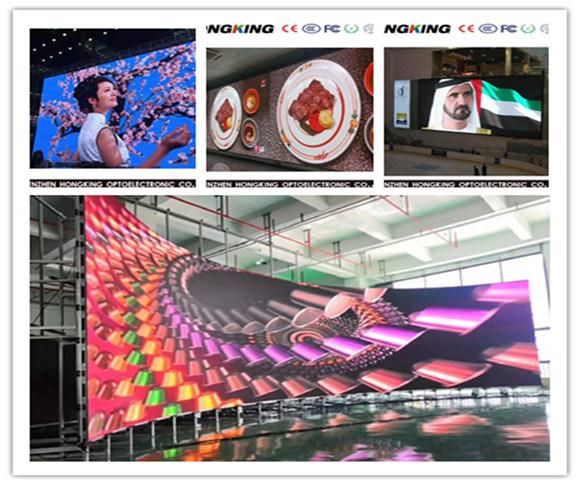

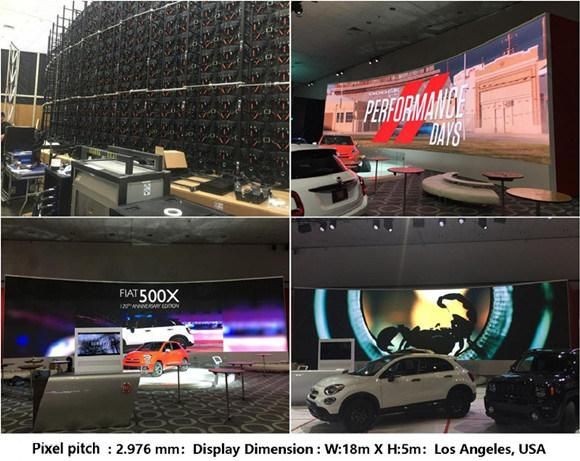

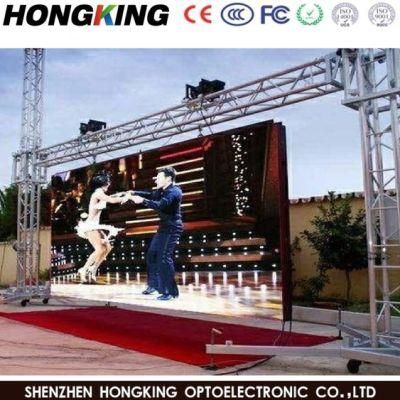

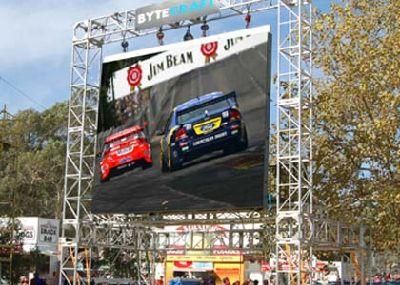

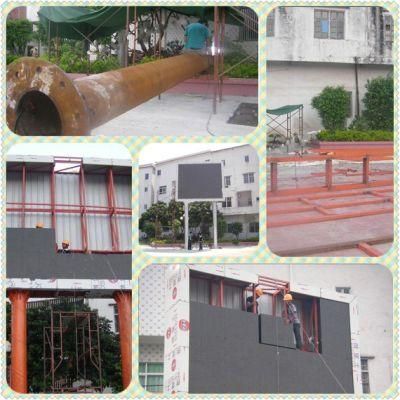

project show :

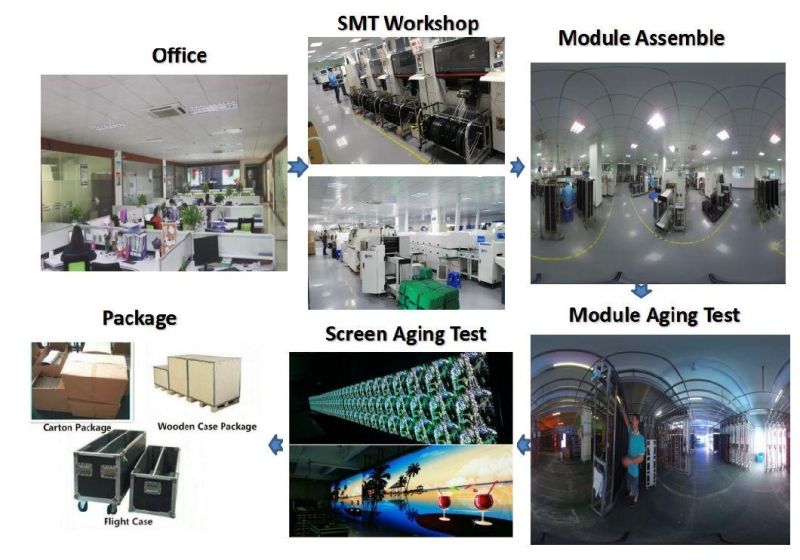

company workshop :


packing :Wooden Case, Flight Case, and Carton



Company descripition:
HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 6 years, we have made steady progress. Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC. We are fully certified by ISO standards.

FAQ :
 1. Q: Can I get some samples?
     A: Yes,sample order is available for quality check and market test.
 2. Q: What's your payment term? How long is your delivery time ?
     A: We accept T/T ,ALIBABA Trade Assurance ,Paypal ,Western Union ,Money Gram, and Cash
 At least 30- 50% deposit in advance, and the balance should be paid before delivery. Our average Production time is 7-18working days after receiving the deposit.If your order is rapidly urgent,we can arrange your order firstly.
3. Q: How long is the warranty period ?
    A:  Non-artificial damage,  2-3 years warranty
4. Q: Do you have the products in stock?
    A: Yes ,of course
5. Q: Freight Cost?
    A: The shipping cost depends on different weight;
         We will choose the cheapest and safest way according your detail quantities.
6. Q: How does your factory do regarding the quality control?
    A: Quality is priority. Every product will be fully assembled and carefully tested before packing
and shipping.
7. Q:How can I get technical support?
    A: We treasure every customer that shake hands with our Hongking.
        We offer youTEAMVIEWER help by Online Video Or can send professional engineer to your city to offer on-site guide .
8. Q:Is Available to print customer required logo on your led product ?
    A: Surely it is .Please inform and confirm the logo design details with our team ahead of the production.Then,we will follow your requirement.
