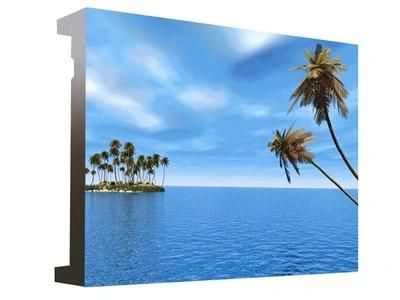

High Resolution P3 P4 P5 Indoor LED Display Screen
Shenzhen Hongking Optoelectronic Co., Ltd.- Tube Chip Color:Full Color
- Display Function:Video Display, Image & Text Display, Text Display, Market Display
- Pixel Pitch:4mm
- Pixel Configuration:1R,1G,1B
- Pixel Density:62500dots,M2
- Scanning Mode:1,16 Scan
Base Info
- Model NO.:led display P4-16s
- System Operating Platform:WIN XP
- Display Type:LED Video Display
- Application:Stage Performance, Advertising, Shopping Guide
- IP Rating:IP43
- Certification:CE, RoHS, UL, CCC, ETL
- Product Name:P4-16s Indoor LED Display
- Driver IC:Mbi5124
- Brightness:1200CD,M2
- Grey Scale:65536 Degree
- Life Time:More 100, 000 Hours (80%)
- Mtbf:More 50, 000 Hours
- Operating Temperature:-30~-60t
- Humidity:10%-95%
- Color Temperature:6500k-9500k
- Warranty:3 Years
- Transport Package:Wooden Case, Flight Case, and Carton
- Specification:256*128mm
- Trademark:hongking
- Origin:China
- HS Code:8528591090
- Production Capacity:5000 Sqm,Year
Description
Basic Info.
Model NO. led display P4-16s System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, RoHS, UL, CCC, ETL Product Name P4-16s Indoor LED Display Driver IC Mbi5124 Brightness 1200CD/M2 Grey Scale 65536 Degree Life Time More 100, 000 Hours (80%) Mtbf More 50, 000 Hours Operating Temperature -30~-60t Humidity 10%-95% Color Temperature 6500k-9500k Warranty 3 Years Transport Package Wooden Case, Flight Case, and Carton Specification 256*128mm Trademark hongking Origin China HS Code 8528591090 Production Capacity 5000 Sqm/YearProduct Description
High Resolution P3 P4 P5 Indoor LED Display ScreenIf you have interests in buying, pleased send A complete inquiry need to show:
1. led screen panel pixel pitch, if you dont know how to choose, contact us
2. led screen size:length ___m; width___m,or cabinet quantity;
3. use for indoor or outdoor; fixed installation or rental?
4. intallation place pictures will be better; Specification details :
Product Model | Indoor Fixed F6 | Indoor Fixed F5 | Indoor Fixed F4 | Indoor Fixed F3 | Indoor Fixed F2.5 |
Pixel Pitch | 6mm | 5 mm | 4 mm | 3 mm | 2.5mm |
Module Size | 192x192mm | 160x160 mm | 256x128 mm | 192x192mm | 160x160 mm |
Module Resolution | 32x32 pixels | 32x32 pixels | 64x32 pixels | 64x64 pixels | 64x64 pixels |
LED | SMD3528 | SMD3528 | SMD2121 | SMD2121 | SMD2121 |
Standard Cabinet Size | 960x960 mm | 960x960 mm | 768x768mm | 576x576mm | 480x480 mm |
Standard Cabinet Resolution | 160x160 pixels | 192x192 pixels | 192x192pixels | 192x192pixels | 192x192 pixels |
Standard Cabinet | Iron | Iron | Iron | Iron | Iron |
Physical Density | 27777 Pixels/m2 | 40000 Pixels/m2 | 62500 Pixels/m2 | 62500 Pixels/m2 | 40000 Pixels/m2 |
White Balance Luminance | ≥1500 nits | ≥1500 nits | ≥1200 nits | ≥1200 nits | ≥1200 nits |
Gray Scale per Color | 16384 level | 16384 level | 16384 level | 16384 level | 16384 level |
Contrast | 1000:01:00 | 1000:01:00 | 1000:01:00 | 1000:01:00 | 1000:01:00 |
Refresh Frequency | ≥1920 Hz | ≥1920Hz | ≥1920 Hz | ≥1920 Hz | ≥1920Hz |
Visual Angle(Horizontal/Vertical) | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
Max Power | 600 W/m2 | 600 W/m2 | 650 W/m2 | 650 W/m2 | 700 W/m2 |
Average Power | 200 W/m2 | 200 W/m2 | 220 W/m2 | 220 W/m2 | 250 W/m2 |
Input Voltage(AC) | 110 V -240 V | 110 V -240 V | 110 V -240 V | 110 V -240 V | 110 V -240 V |
Working Environment Temperature | -20ºC~50ºC | -20ºC~50ºC | -20ºC~50ºC | -20ºC~50ºC | -20ºC~50ºC |
Operating Humidity | 10%RH~95%RH | 10%RH~95%RH | 10%RH~95%RH | 10%RH~95%RH | 10%RH~95%RH |
Control System | AV,Video,VGA,DVI,HDMI,SDI,DP | AV,Video,VGA,DVI,HDMI,SDI,DP | AV,Video,VGA,DVI,HDMI,SDI,DP | AV,Video,VGA,DVI,HDMI,SDI,DP | AV,Video,VGA,D |
