• Model NO.：P1.667
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP43
• Certification：CE, RoHS, CCC, CF
• Modle Size：200mm*150mm
• Package Mode：SMD 1010
• Module Thickness：14.75mm
• Warranty Period：2years
• Deliver Time：15-20 Days
• Drive Type：Constant Drive
• Life Span：100000 Hours
• Brightness：2000-2500 Nits
• Scan Type：1,30 Scan
• Use：Indoor Display
• Transport Package：Die-Casting Aluminum Case
• Specification：400mm,300mm
• Trademark：FWS
• Origin：Shenzhen China
• HS Code：9405409000
• Production Capacity：1000sqm, Month

Basic Info.

Model NO. P1.667 System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, RoHS, CCC, CF Modle Size 200mm*150mm Package Mode SMD 1010 Module Thickness 14.75mm Warranty Period 2years Deliver Time 15-20 Days Drive Type Constant Drive Life Span 100000 Hours Brightness 2000-2500 Nits Scan Type 1/30 Scan Use Indoor Display Transport Package Die-Casting Aluminum Case Specification 400mm/300mm Trademark FWS Origin Shenzhen China HS Code 9405409000 Production Capacity 1000sqm/ Month

Product Description

P1.667 Indoor Full Color 1r1g1b LED Module technology parameters
Enhanced LED chip reliability,good uniformity of color temperture,the cost price of LED High.SMD2121 black light+black mask,showing a high contrast,depending on the feel better;the high-IC driver,high refresh,high grayscale,high brightness,no blur,Single point brightness,color correction,color To more;board to board connector design,no link cable,Improve stability,easy installation and disassembly maintenance.wire drawing aluminum alloy sleeve Pieces,beautful,fashionable and cooling speed is ten Yi Weihu,a screw,a tool to compete.

Modle No.	FWS-p1.667
Pixel Pitch	1.667mm
Pixel Configuration	1R1G1B
LED Encapsulation	SMD 1010
Pixel Density	360000 dots/m²
Pixel resolution	W)120 dots * H)60 dots
Brightness	≥2000 cd/Sqn
Model Weight	0.4 KG
Color Temperature	6500-9500k
Drive Mode	1/30 Scan
Cabinet Size(W*H*D)	400mm*300mm
Power Supply	AC90-264V
Screen resolution	W)240 dots* H)180 dots
Thermal discharge	Fan 1PCS
Working Voltage	AC220V±10%
Max Pqwer Consumption	≤900w/m²
Average Power Consumption	≤233w/m²
Best Viewing Angle	H:160°  V:140°
Best viewing distance	5m-15m
Refresh Rate	≥2000Hz
Frame frequency	60 HZ
Control Method	Synchronization
Driving Device	Constant Drive
Cabinet Material	Die-casting Aluminum
Gray level	16384 gray
Working Temperature	-35ºC--85ºC

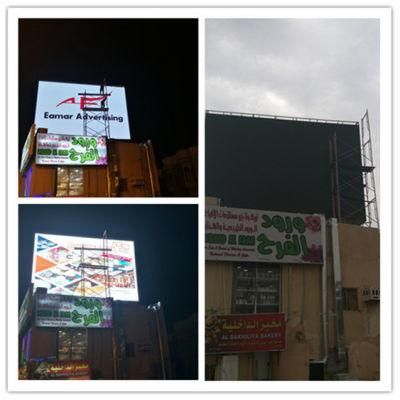

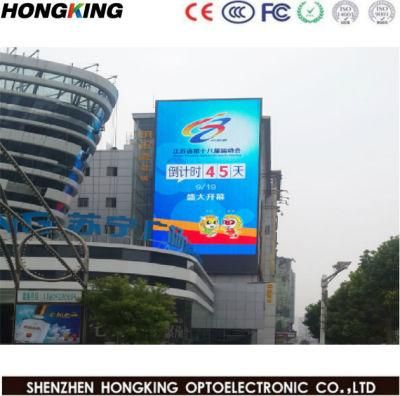

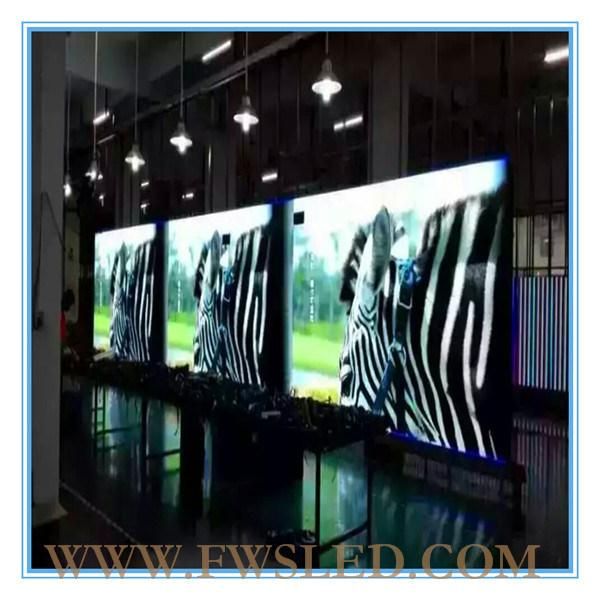

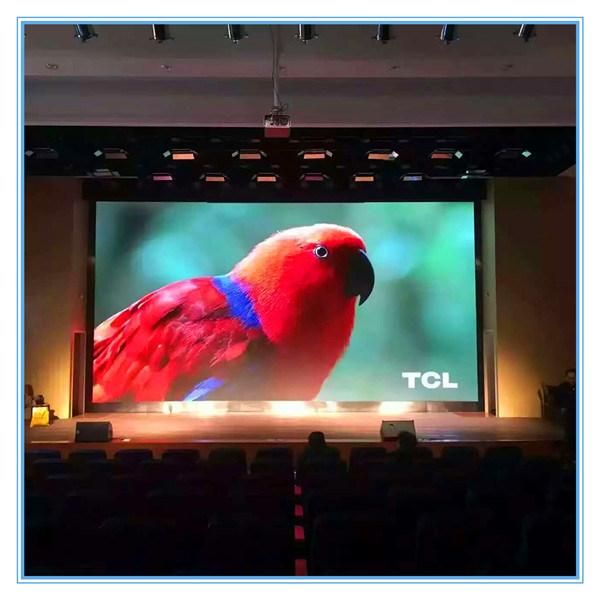

EFFECT SHOW


Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible.
