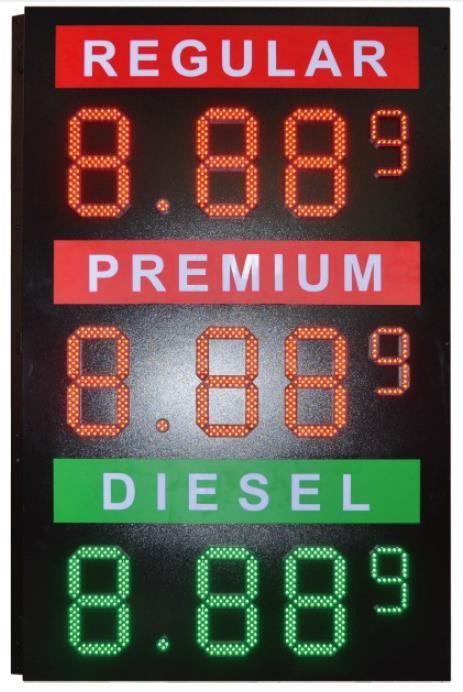

Outdoor Water Proof LED Gas Price Sign Display with RoHS
Ningbo Lightkey Electronic Technology Co., Ltd.- Tube Chip Color：Single Color
- IP Rating：IP65
- Pixel Pitch：16mm
- Display Function：Text Display
- Average Power Consumption：10-240 W
- Display Type：Segment LED Display
Base Info
- Model NO.：8888
- Application：Gas Price Sign
- Certification：CE, RoHS
- Trademark：LITEKEY
- Origin：China
- HS Code：8531200000
- Production Capacity：50000PCS,Year
Description
Normal LED Gas Signs (8.888 ,88.88 ,888.8)Model Number Size Aluminum Frame Iron Cabinet Power(W)
D6" 85x160mm 540x240x75mm 490x200x80mm 10.4 D8" 120x210mm 720x210x75mm 680x250x80mm 16 D10" 150x260mm 870x360x75mm 810x310x80mm 26 D12" 170x310mm 960x430x75mm 910x380x80mm 36 D15" 220x390mm 1250x500x75mm 1200x470x80mm 48 D18" 250x460mm 1420x570x75mm 1380x550x80mm 68 D20" 300x508mm 1750x650x75mm 1700x600x80mm 84 D22" 304x550mm 1750x680x75mm 1730x650x80mm 122 D24" 340x610mm 1980x740x75mm 1920x690x80mm 144 D32" 460x840mm 2500x990x75mm 2400x950x80mm 212 D36" 495x915mm 2650x1100x75mm 2600x1050x80mm 240
Details about LED Gas SignDetails about LED Gas SignItem Technical Parameters Color Red, Amber, Green, Blue, White Digit Height 6'', 8'', 10'', 12'', 15'', 18'', 20'', 22'', 24'', 32'', 64'', 72'' Brightness Control (1)Auto dimming by brightness sensor
(2)Set by controller or software Viewing Angle 60°/120°/180° Service Access Front or rear open Cabinet Material Iron cabinet or aluminum alloy frame Waterproof Level Ip53 with aluminum alloy frame

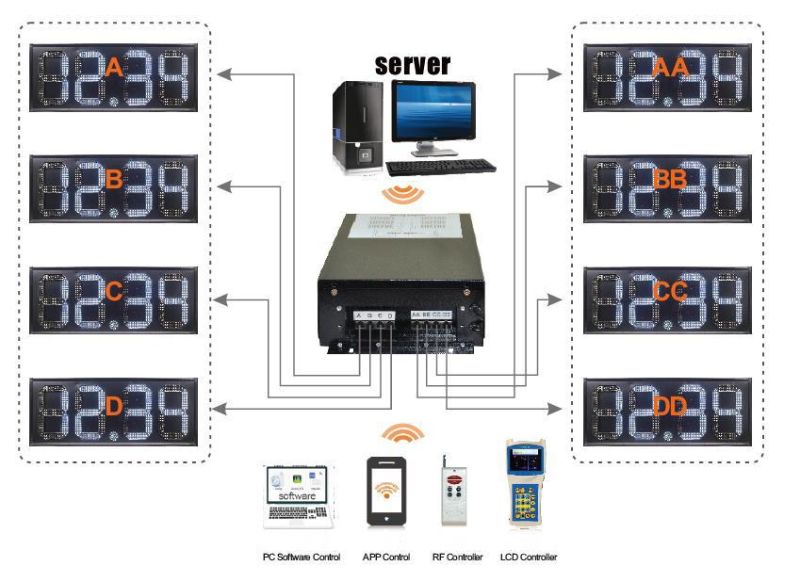

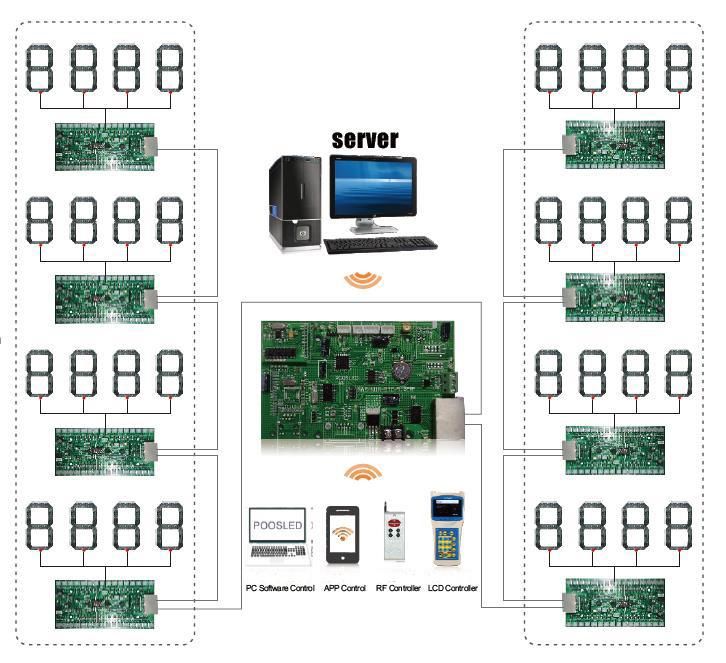

Ip65 with iron cabinet Led Driving Mode Constant current Power Input 110/220V AC,50-60HZ Power Output 12V Power Supply Meanwell Control way (1)RF/LCD Remote control
(2) TCP/IP software control
(3) 4G App control
(4) RF-Wireless LAN software control Communication Distance (1)Remote control: 100M
(2) TCP/IP: no limited
(3) 4G App no limited
(4) RF-Wireless LAN: 1000M Continuous Working Time Unlimited Lifetime of Leds >100,000 hours Working Temperature -40ºC~70ºC Display Format 8.88, 8.888,8.888, 8.889/10, 88.88, 88.888 etc.
Purchase Guide
To buy completed product
1. Items: Completed led digits sign, control box (Remote controller/Control software),
installation fittings, user manual
2. Perfect completed design, nice cabinets, easy to install, save project's working time
3. Suggest to buy this product in the first time
*Such as following:
To buy semi-finished product
1. Items: single led digits sign, connecting LAN cables, power cables, control box (Remote controller/Control software), installation fittings, user manual
2. Easy to transportation, convenient to combine, flexible design, good way to understand well of led digits sign
3. Suggest to buy this product in the first time, or for updating the old led digits sign
To buy parts
1. Items: LED Digit modules, drive card, control card, power supply ,brightness(temperature) sensor connecting LAN cables, power cables, control box (Remote controller/Control software), installation fittings, user manual
2. Easy and cheap to transportation, convenient to combine, flexible design, know well of led digits sign
3. Suggest to buy this product for many times, or for updating the old led digits sign

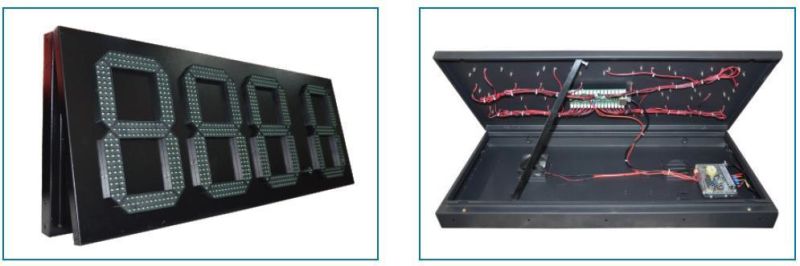

Difference of aluminum frame vs Iron Cabinnet

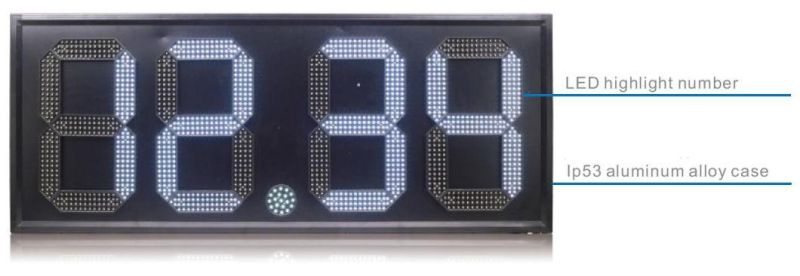

Aluminum frame(Ip53)
1. Cheaper price;
2. Easy for carrying;
3.Light weight, convenient for shipping;
4.IP53 waterproof, Indoor/outdoor using;

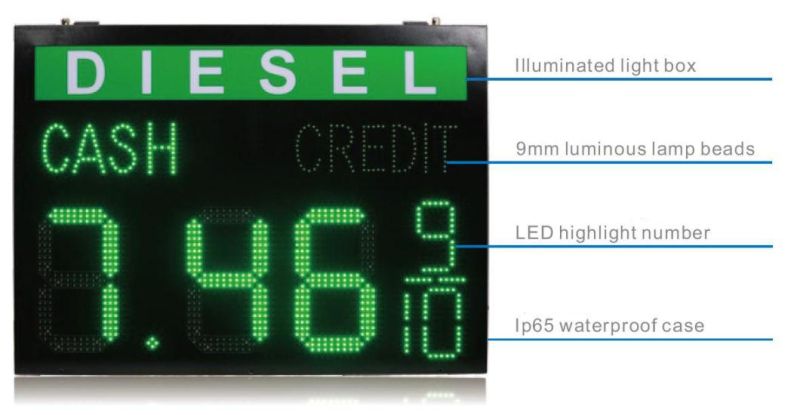

Iron cabinet (Ip65)
1.Simple for installing
2.Front and rear open
3.IP65 waterproof, outdoor using
4.Completed cabinet, nice and many designs

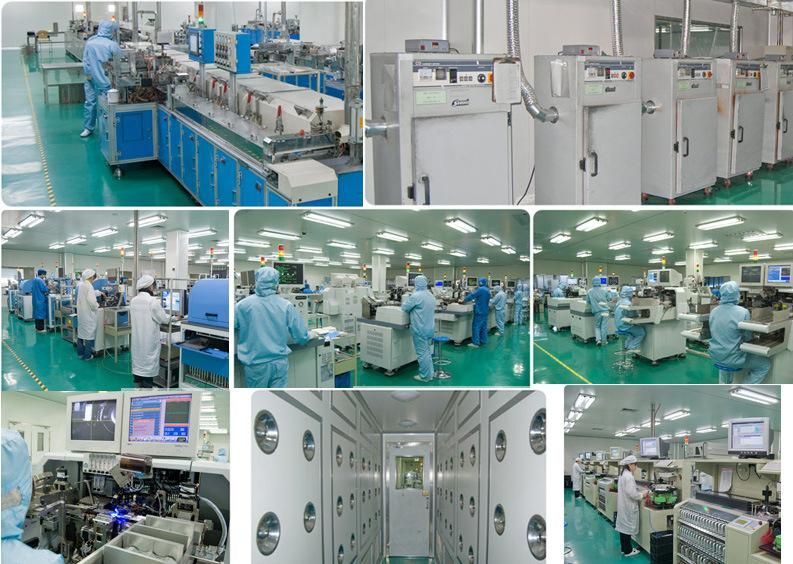

Factory Overview and production process
Our Services/Why choose Us
1. Professional service: replied within 24 hours(at workdays).
2. Various ready moldings of lamp led are available: no need to afford extra fee for moldings.
3. We also can provide customized products, design according to your demand.
4. Reliable and stable quality: 100% testing for each piece. Automatic testing and bin code selection machine.
5. Experience: produce LED components for more than 14 years.
6. Advanced Equipment: ASM automatic production machines(biggest brand in LED automatic machines)
7. Concentration: We focus on LED research and development, production and sales.
