• Model NO.：P5
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP43
• Certification：CE, RoHS, UL, CCC, ETL, CF
• Warranty Period：2years
• Deliver Time：15-20 Days
• Drive Type：Constant Drive
• Modle Size：320mm*160mm
• Life Span：100000 Hours
• Brightness：2500
• Scan Type：1,16 Scan
• Color Display：Full Color
• Package Mode：SMD 3528
• Use：Indoor Disiplay
• Transport Package：Standard Cabinet
• Specification：960mm*960mm
• Trademark：FWS
• Origin：Shenzhen China
• HS Code：8528591090
• Production Capacity：25000sqm,Month

LED LampTypeSMD2121 black bodyBrandEpistarArrangement1R1G1BChip parametersRed (620-625nm) IV:(250-300mcd )Chip parametersGreen (520-525nm) IV:(450-550mcd)Chip parametersBlue (470-475nm) IV:(100-120mcd)LED ModulePixel Pitch5mmModule Size320×160mmModule Resolution64×32=2048(Dots)Module Weight0.4kgLED CabinetPixel Density40000 Dots/sqmFrame Frequencyno less than 60 frame/secCabinet Resolution192×192=36864(Dots)Input VoltageAC110-220V±10%, 50/60HzCabinet Dimension(W*H*D)960×960×105mmOutput VoltageDC-5V, 40A/60A/80AModule Quanty /Cabinet3×6=18(Pcs)Color Grayscale16bitGray Scale per Color65536 levelCabinets MaterialAluminum-magnesium alloy CabinetColor ProcessingR(1024)×G(1024)×B(1024)Cabinet Weight25kgBrightness Adjustment256 color levels, can be adjusted manually and automatically optionalBrightness>1000cd/sqmMTBF( mean time between failures)5000 hoursViewing Angle140(Horizontal), 140(Vertical)Life-span100, 000 hoursNearest Viewing Distance8mProtection Level(front/back)IP43/IP54Power Consumption (Max)800 w/sqmMalfunction Dot Rateless than 0.0001Power Consumption (Average)250 w/sqmWorking Temperature-15^oC-50^oCDisplay FunctionText, Graphics, VideoHumidity15%-85%Refresh Rate>1000HzDrive Mode/Driver PositionConstant driving 1/16 Scan, Combined diver boardControl SystemControl ModeSynchronization/AsynchronizationInput SignalAVI/MPG/MPEG/TXT.etcControl SystemSending Card, Receiving Card, Receiving HUBPC Operating SystemMicrosoft Windows 10 , Windows 7 and XPSoftwareLED Studio ( FWS-linsn )Communication TypeNet cable; 3G, WIFI(Sold separately)LanguageChinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, GermanCertificateCE, ROHS, FCC, ISO9001, TUVControl Card InputDVI, USB; RJ45, HDMI(Sold separately)

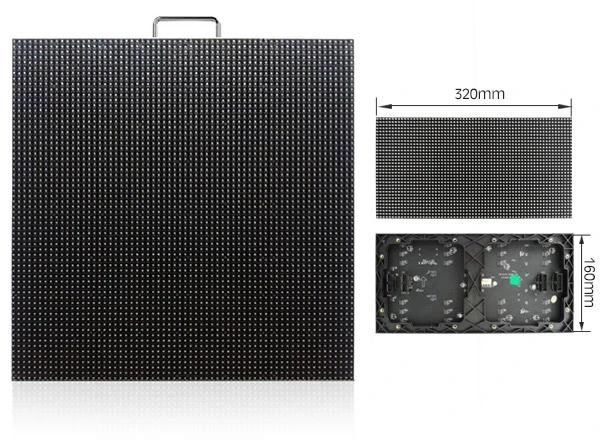

Cabinet & Module
