• Model NO.：3.91mm, 4.81mm, 5.95mm, 6.25mm
• Pixel Density：28224pixels,Sqm
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Stage Performance
• Certification：CE, RoHS, UL, CCC
• Delivery Time：15~25 Working Days
• Warranty Time：2 Years
• Cabinet Size：500X500mm
• OEM：Yes
• Brightness：>5500nits
• Refresh Rate：>1500Hz
• Color：Full Color
• Scan：1,5scan
• Transport Package：Flight Case, Plywood Case, Carton.
• Specification：CE, ROHS, ISO9001
• Trademark：BST
• Origin：Shenzhen, China
• HS Code：8528591090
• Production Capacity：3000sqm,Month

ModelOR-5.95Pixel Pitch5.95mmPixel Density28224 pixels/m2LED TypeSMD2727LED Configuration1R1G1BCabinet Dimension500mmx500mmCabinet Resolution84*84pixelsCabinet Weight8kgCabinet Materialdie casting aluminumIngress Protection(front/rear)IP65/IP54Brightness>6500nitsViewing Angle(H/V)140°/140°Driving Method1/8 ScanFrame Refresh≥ 60HzData Refresh Rate>1500HzGray Scale16bitPower Consumption(avg.)300w/m2Input VoltageAC 110/220±10%,  50~60HzTemperature(operating/storage)-20~50°C / -40~60°CHumidity(operating/storage)10%~90%RH / 10%~85%RHMTBF≥1000hrsLife Span≥50000hrsPixel Failure<0.0003

Product Advantage



1.Featured like high precision,lightweight,ultra thin and die casting aluminum.



2.Light Series offer excellent contrast and image quality.



3.Robust structure and high quality materials allow LED screen to have amazing durability.

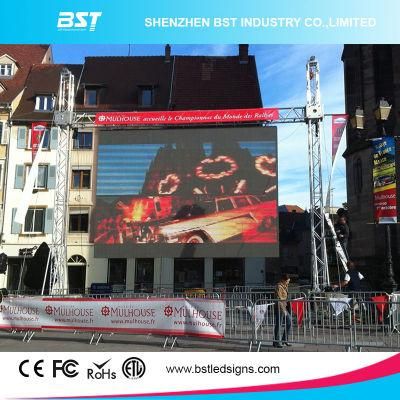

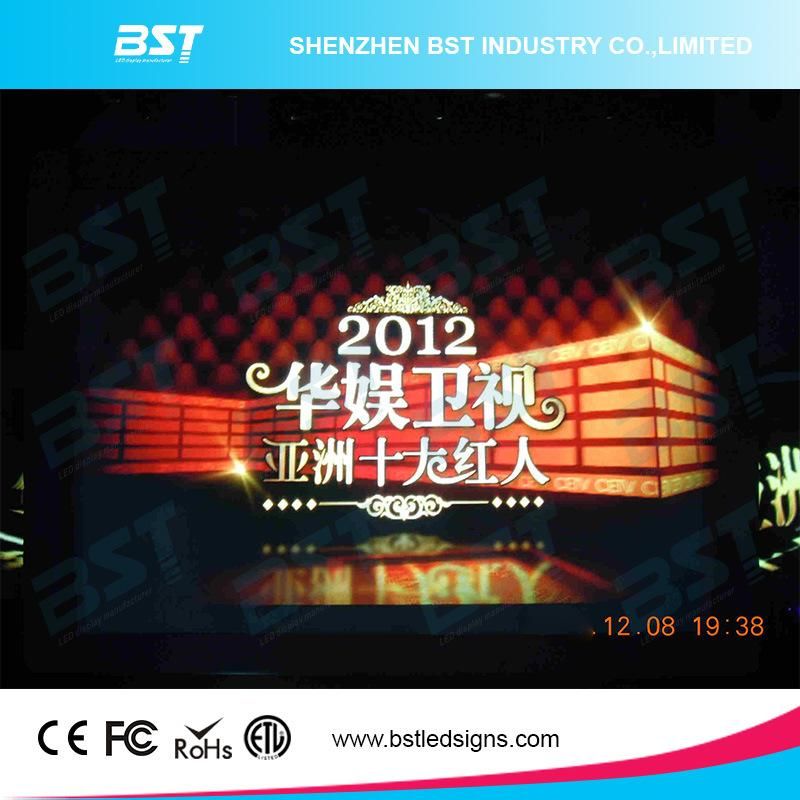

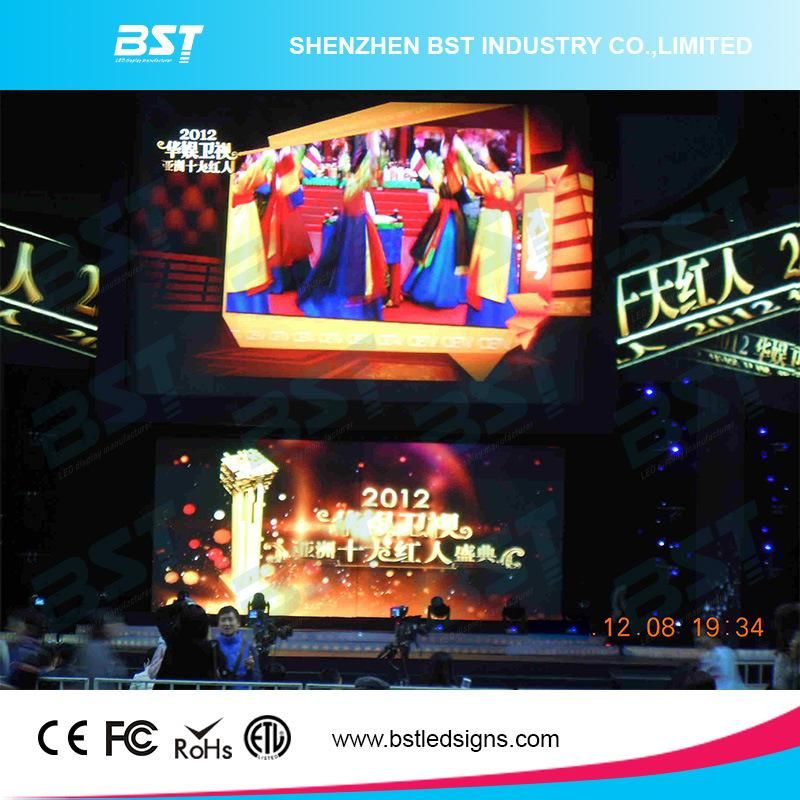

Project Reference
