High Refresh Rate P10 LED Display Screen Street Road Advertising Sign
Shenzhen Glare-LED Optoelectronics Co., Ltd.- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：10mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Average Power Consumption：292
Base Info
- Model NO.：Outdoor DIP 10
- Pixel Density：1000
- Scanning Mode：1,4 Scan
- Display Type：LED Dot Matrix Display
- Application：Advertising,Message
- Certification：CE, RoHS, CCC
- Brightness (CD/M2)：Above 8000
- Module Power (W)：15
- Modules Size W*H(mm)：320*160
- Driving Mode：Constant Current
- LEDs：347
- Hub Port：Hub75
- Transport Package：Wooden Carton
- Specification：32*16
- Trademark：GLG-LED
- Origin：China
- HS Code：8531200000
- Production Capacity：50000PCS,Month
Description
Outdoor
DIP
Tri-color LED DisplayP10 347 10000 32*16 320*160 2R1G 1/4S constant current ≥8000 8.5 170

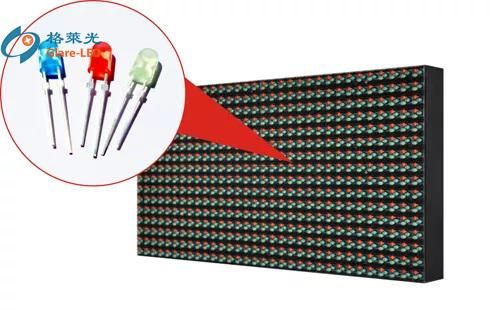

Taiwan Epistar LED chip
Good performance in high current, continuously exceed the limit of LED capability

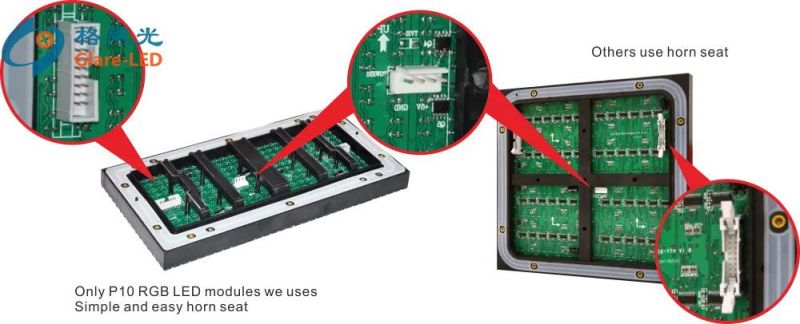

P10, P16 modules use16*16 dots big module design solution, connectors are less, consistency is better, products performance are moren outstanding.

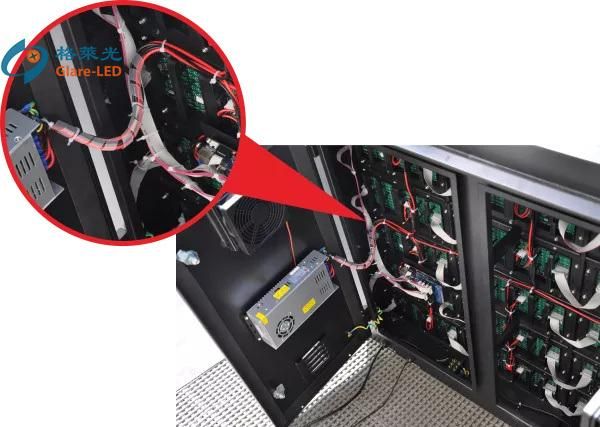

Dedicated winding tube
The power cables with the special dedicated winding tube, it looks beautiful, wiring more standardized, Product stability is stronger.Wide waterproof apron
The modules are designed with Wide waterproof apron for strict use environment of outdoor products.
Dedicated winding tube
The power cables with the special dedicated winding tube, it looks beautiful, wiring more standardized, Product stability is stronger.
Contact
Shenzhen Glare-LED Optoelectronic Co., Ltd
Add: 1-4 floor, B2 building,No. 10 Tongqing Road,TongXin village,Baolong avenue,Longgang District,Shenzhen City,Guangdong province,China
P.C: 518116
DIP
Tri-color LED Display
Product Features
Taiwan Epistar LED chipGood performance in high current, continuously exceed the limit of LED capability

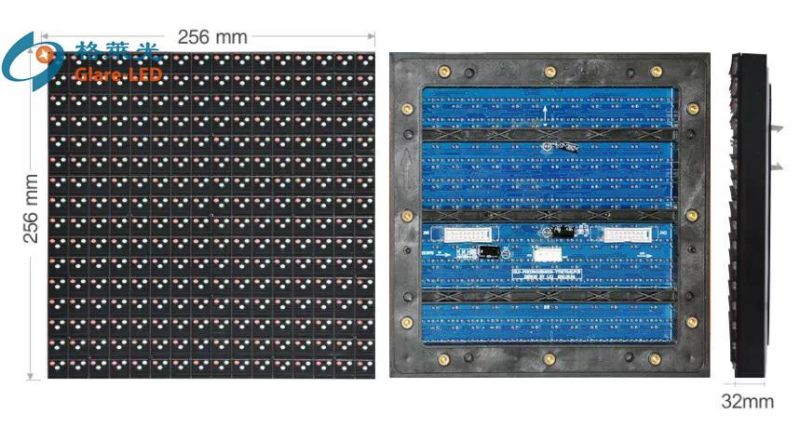

Big module design
P10, P16 modules use16*16 dots big module design solution, connectors are less, consistency is better, products performance are moren outstanding.
Dedicated winding tube The power cables with the special dedicated winding tube, it looks beautiful, wiring more standardized, Product stability is stronger.Wide waterproof apron
The modules are designed with Wide waterproof apron for strict use environment of outdoor products.
Dedicated winding tube The power cables with the special dedicated winding tube, it looks beautiful, wiring more standardized, Product stability is stronger.
Waterproof
Use cabinet design
Cabinet has a variety of colors
Energy saving and efficient
Adopt Taiwan MEANWELL power

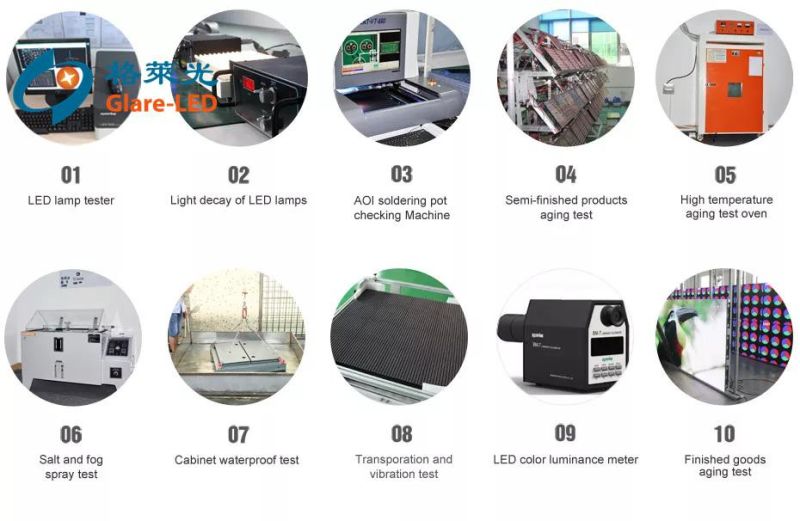

Quality Control Process
Package Method

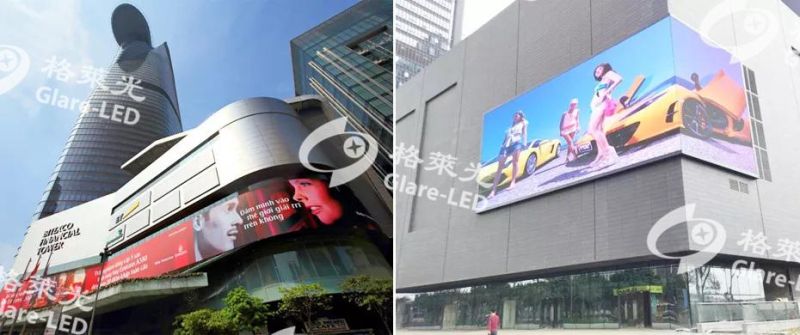

Project Case
