• Model NO.：P3
• System Operating Platform：Windows
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP31
• Certification：CE, RoHS, UL, CCC, ETL
• Cabinet：Aluminium
• Weight：30kg,M2
• Brightness：800nits
• Refresh Rate：>1920Hz
• Contrast Rate：3000:1
• Voltage：AC110-240V
• IP Rate：IP31
• Viewing Distance：3meters
• LED Lamps：Epistar
• Driver IC：Constent Current
• PSU：MW
• Service Solution：Front Service
• Installation：Back Bolted Hanging
• System：Nova
• Software OS：Windows
• Transport Package：Plywood Cases
• Specification：640x480mm
• Trademark：LEDventure
• Origin：China
• Production Capacity：2000sqm,Month

P2.5 P3 P4 P5 Indoor Outdoor LED Video display Wall for advertising is popular for indoor advertising media, such as in airport, shopping mall, shows etc, it is light weight design, HD resolution with high contract rate, also refresh rate is good level to ensure image quality, hot sale pixels are P2.5mm and P3mm

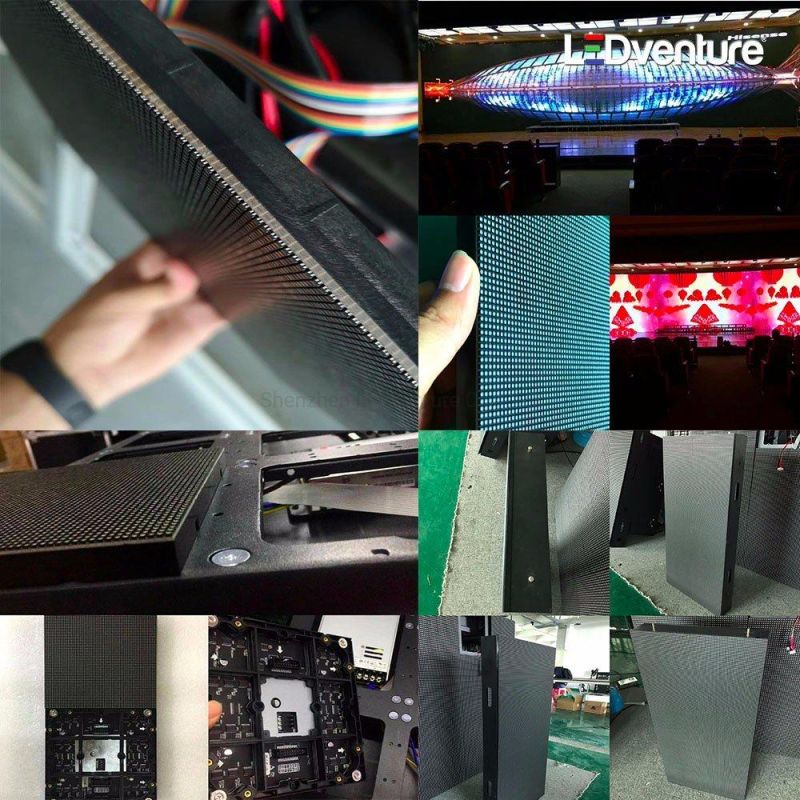

 Indoor led video wall detail images included hardware






All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.




Item

Model Number

Pixel Pitch

3mm

Pixel Density

111111 pixels/M2

Pixel Configuration

1R1G1B

LED Type

Epistar, SMD

Module Size

320x160mm

Module Resolution

104*52pixel

Min.Viewing Distance

3meters

Brightness

800nits

Viewing Angle(degree)

≤140°

Average Power Consumption

400W/M2

Scan Mode

1/16 Scan

Protection Level

IP31

Cabinet Size

640x480mm 640x640mm 960x480mm

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50HZ|60hz

Refresh Rate

> 1920hz

Color

65535 Levels

Horizontal/Vertical Viewing Angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

Indoor led video wall available fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.







By plywood cases, packing well and easy to load,




ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.
