• Model NO.：OF-P4.81S
• Pixel Density：43264 Dots,M2
• Scanning Mode：1,16 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Cabinet Material：Alu,Steel
• Brightness：5500nits
• Refresh Rate：>1920Hz
• Voltage：AC110-240V
• Contrast Rate：3000:1
• LED Lamps：Epistar
• Driver IC：Mbi
• PSU：MW
• System：Nova
• Transport Package：Plywood Cases
• Specification：1000x1000mm
• Trademark：LEDventure
• Origin：China
• HS Code：852859109
• Production Capacity：2000sqm,Month

Item

Outdoor Back Service Advertising LED Display Screen

Model Number

OB-P4.81

Pixel Pitch

4.81mm

Pixel Density(pixels/M2)

43264 pixels

Pixel Configuration

SMD 3 IN 1

LED Type

NS, SMD

Module size(mm)

250x250mm

Module Resolution(pixels)

52*52p

Min.Viewing Distance(m)

5

Brightness(nits)

5500

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

300

Scan Mode

1/16 Scan

Protection Level

IP65/IP54

Cabinet Size(mm)

1000x1000mm (Optional)

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50Hz/60Hz

Refresh Rate

>1920hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

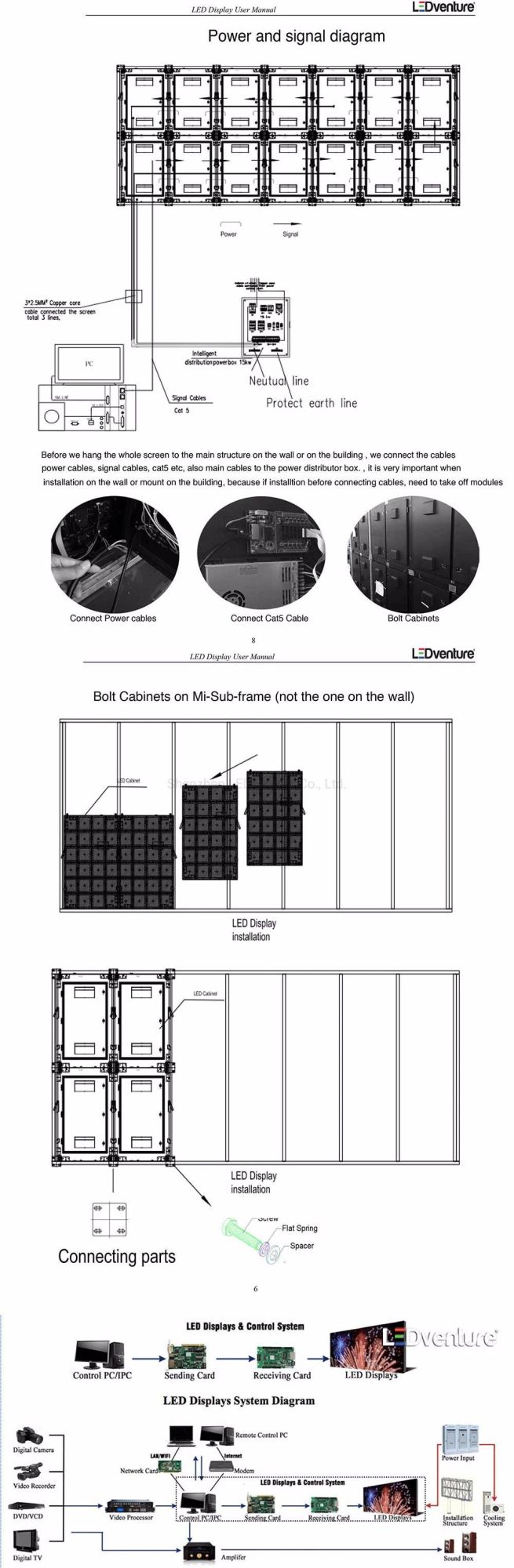

Part 5: Installation Methods

Outdoor front service back service LED Display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.

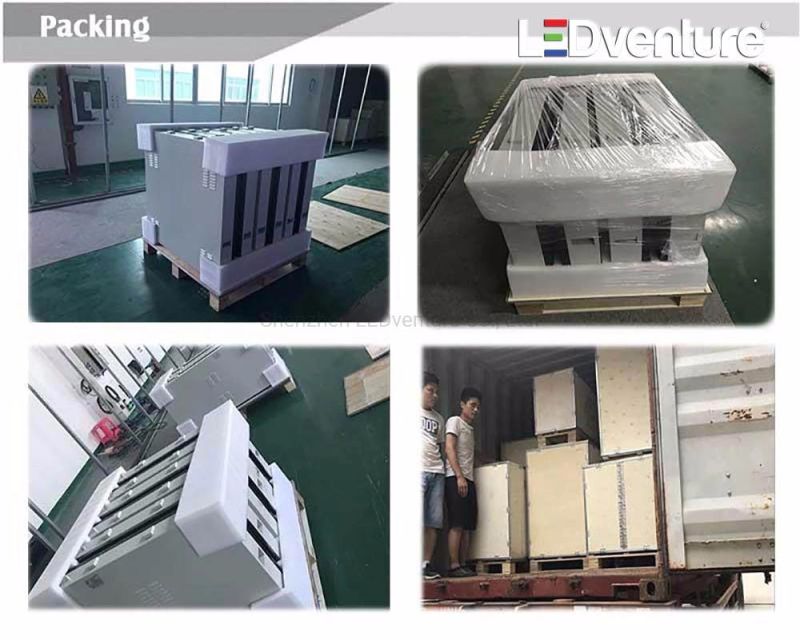

Part 6: Packing Information

Packing by plywood cases, packing well and easy to load

Part 7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part 8: About LEDventure.

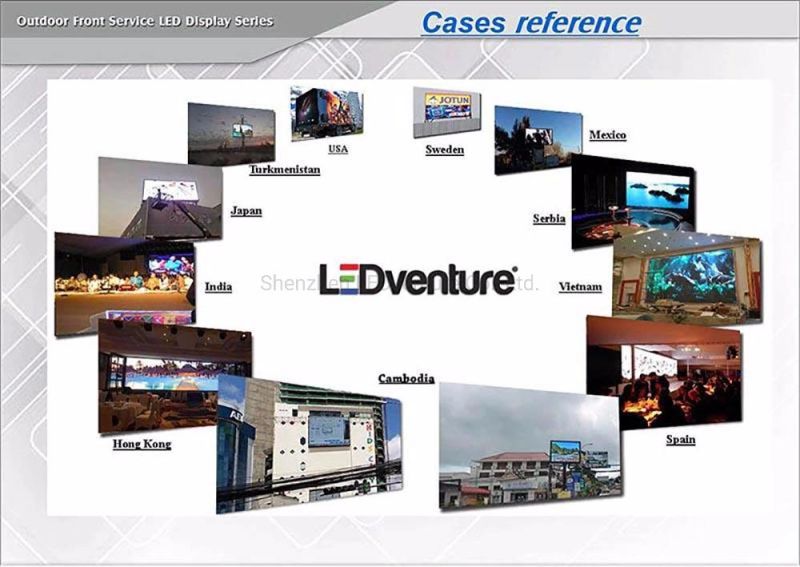

Part 9: LED Display Screen Installation Cases.

Most of our led display exported to Europe with high standards, and also exported to USA, South America and Asia
