• Model NO.：P5.95
• Pixel Density：28246DOT
• Scanning Mode：1,7
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Refresh Rate：1920~3840Hz
• Brightness：5500nits
• Screen Resolution：28246dots,Sqm
• Transport Package：Flight Case
• Specification：250*250mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Basic Info.

Model NO. P5.95 Pixel Density 28246DOT Scanning Mode 1/7 Display Type LED Video Display Application Advertising Certification CE, RoHS, UL, CCC, ETL Refresh Rate 1920~3840Hz Brightness 5500nits Screen Resolution 28246dots/Sqm Transport Package Flight Case Specification 250*250mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

PRODUCT FEATURES:
1.High waterproof grade design:IP65

2.Fast lock design:save labor cost and time

3.Die-casting aluminum design:easy for transportation and installation

4.Seamless assembly:stainless steel locks achioeve micro-adjustment to  make   seamless screens

5.High grey and high refresh rate:achieve good visual effects


PRODUCT PARAMATERS:


NO.	Parameters	Specifications
1	Model	XII5
2	Pixel Pitch(mm)	5.95
3	LED	SMD2727
4	Screen Resolution	28246dots/sqm
5	Scan Method	1/7
6	Module size(mm)	250*250
7	Cabinet size(L*H*W mm)	500x500x88
8	Cabinet(Kg)	7.8
9	Viewing angle	H:160°/  V:160°
10	Grey Scale	14bit
11	Refresh rate(HZ)	≥1920
12	Brightness(nits)	≥5500
13	Working Voltage(V)	AC 100~240V
14	AVE. power consumption (W/m2)	230
15	MAX. power consumption(W/m2)	560
16	IP grade	F:IP65 / R:IP54
17	Working humidity	10~95%RH
18	Storage humidity	10~95%RH
19	Working temperature	-30ºC~60ºC
20	Certificates	CCC,FCC,CE,RoHS

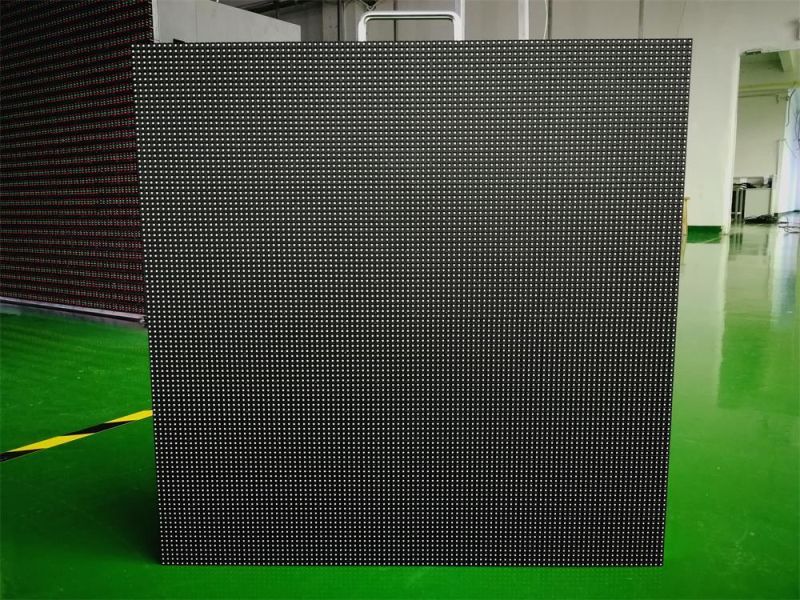

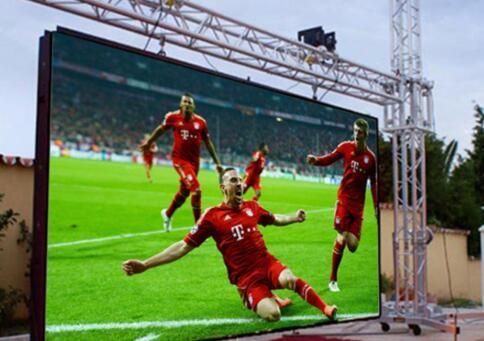

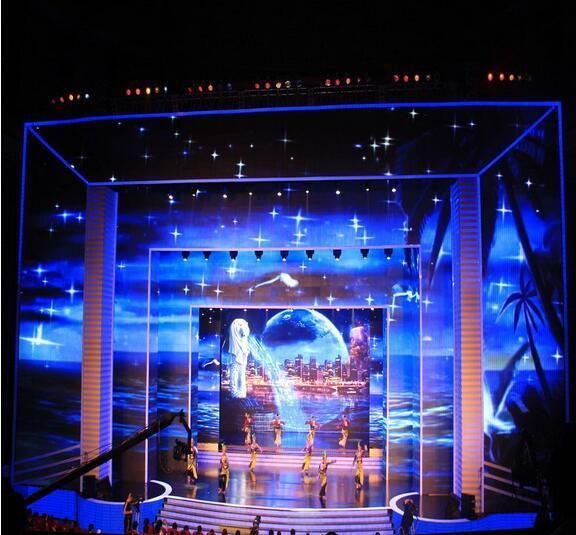

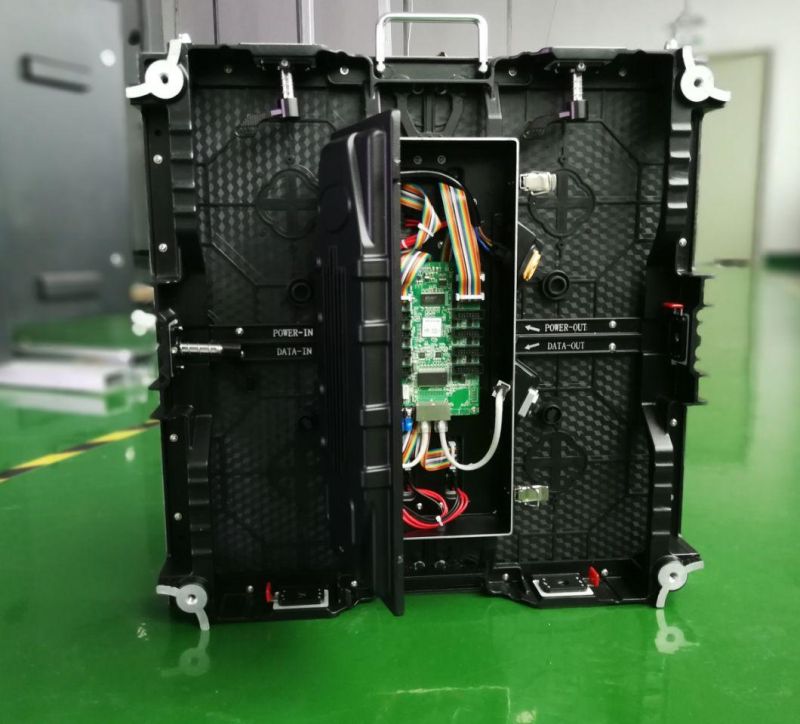

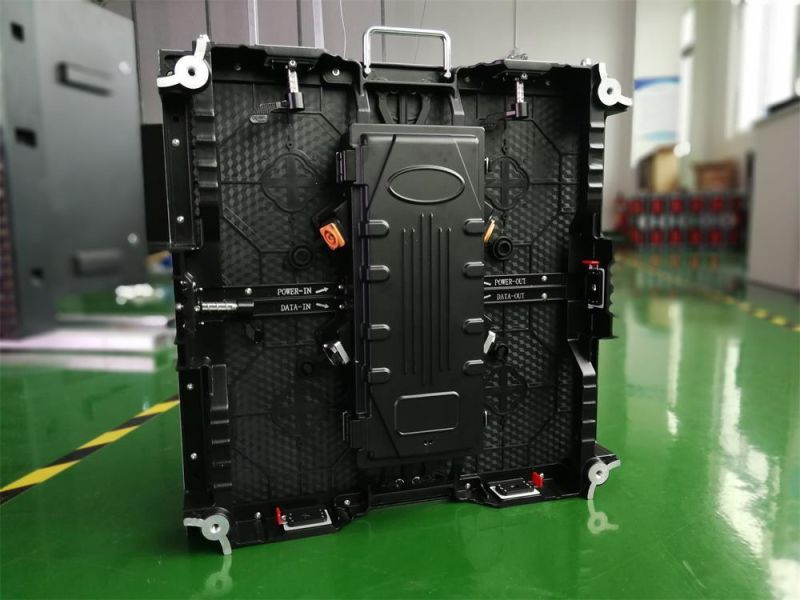

PRODUCT PHOPTOS:

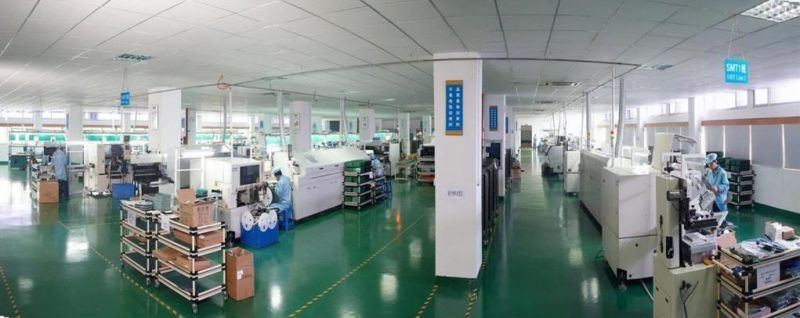

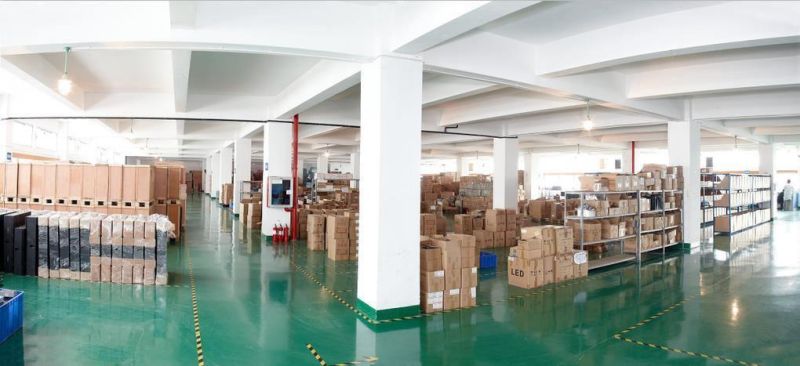

WORKSHOP:

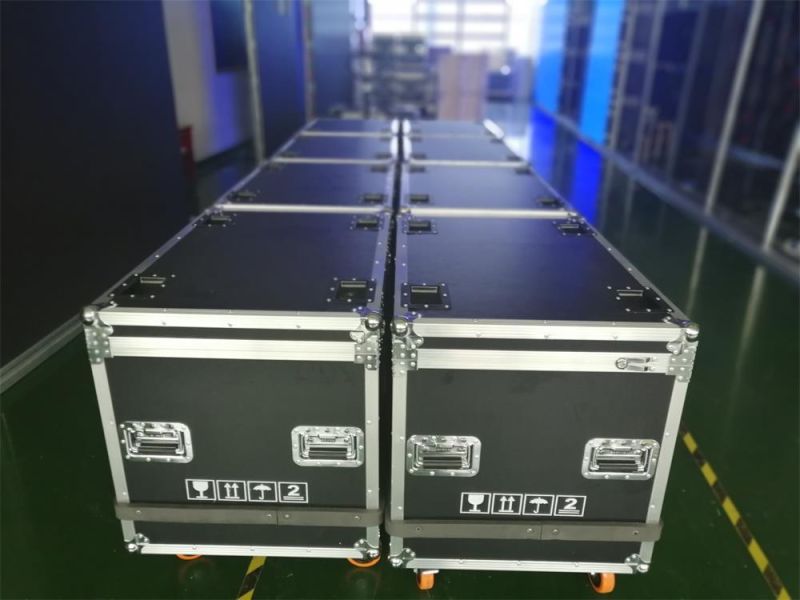

PACKAGE:



CULTURE:

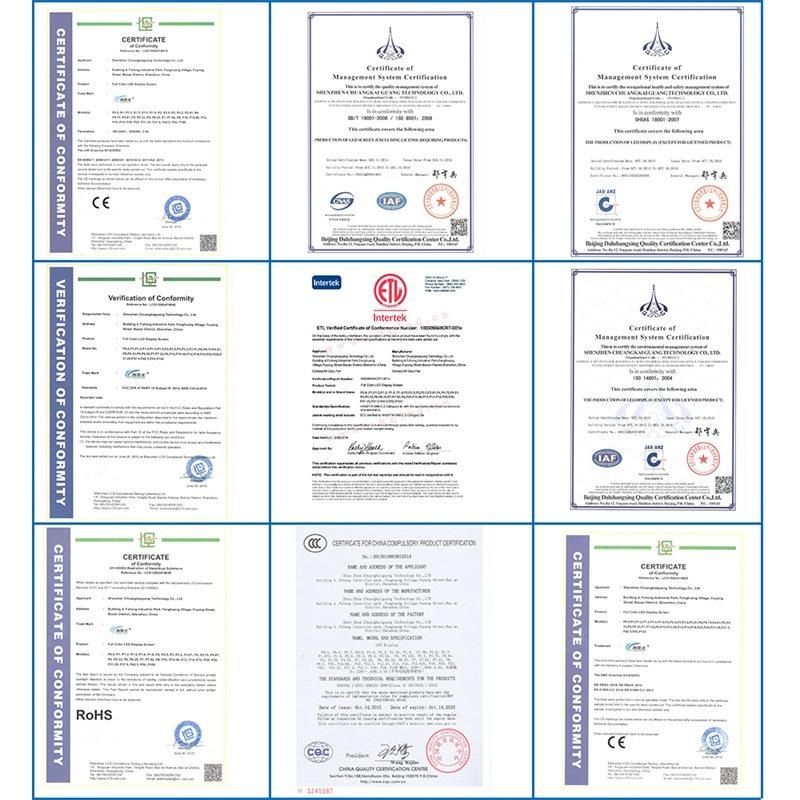

CERTIFICATES:




OUR SERVICE:

1. Your inquiry related to our products or price will be replied in 24hrs

2. The size can be change as you give.

3. What we show is some of our current models, welcome to give us your own ideas.

4. Protection of your sales area, ideas of design and all your private information

5. (Top Quality) + (Reasonable Price) + (Responsible After Service) = (Successful & Win )
