• Model NO.：Indoor P3-32scan
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP43
• Certification：CE, RoHS, UL, CCC, ETL
• Pixel：P3
• Transport Package：Flight Case
• Specification：576*576mm
• Trademark：hongking
• Origin：Made in China
• HS Code：8528591090
• Production Capacity：2000000square Meter ,Month

Basic Info.

Model NO. Indoor P3-32scan System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, RoHS, UL, CCC, ETL Pixel P3 Transport Package Flight Case Specification 576*576mm Trademark hongking Origin Made in China HS Code 8528591090 Production Capacity 2000000square Meter /Month

Product Description

SMD2121 Indoor LED Display with Alumium Die Cast Cabinet

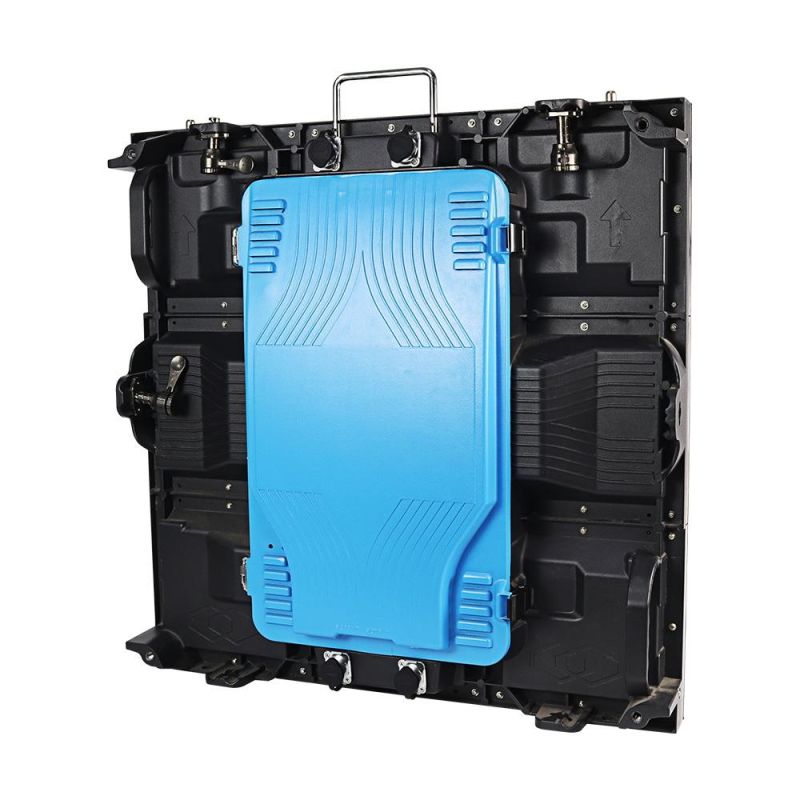

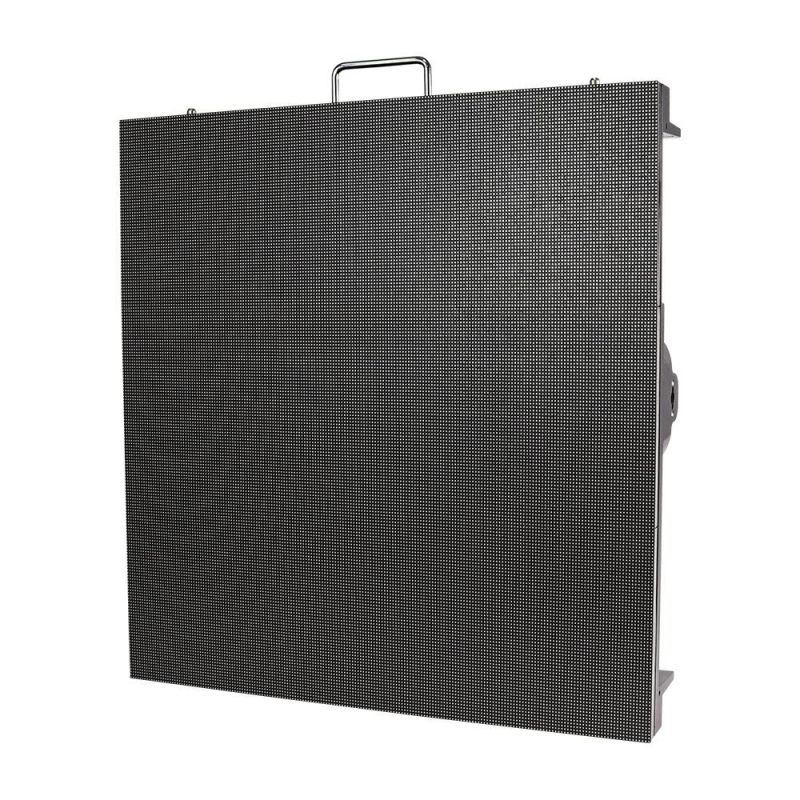

Cabinet Pictures :

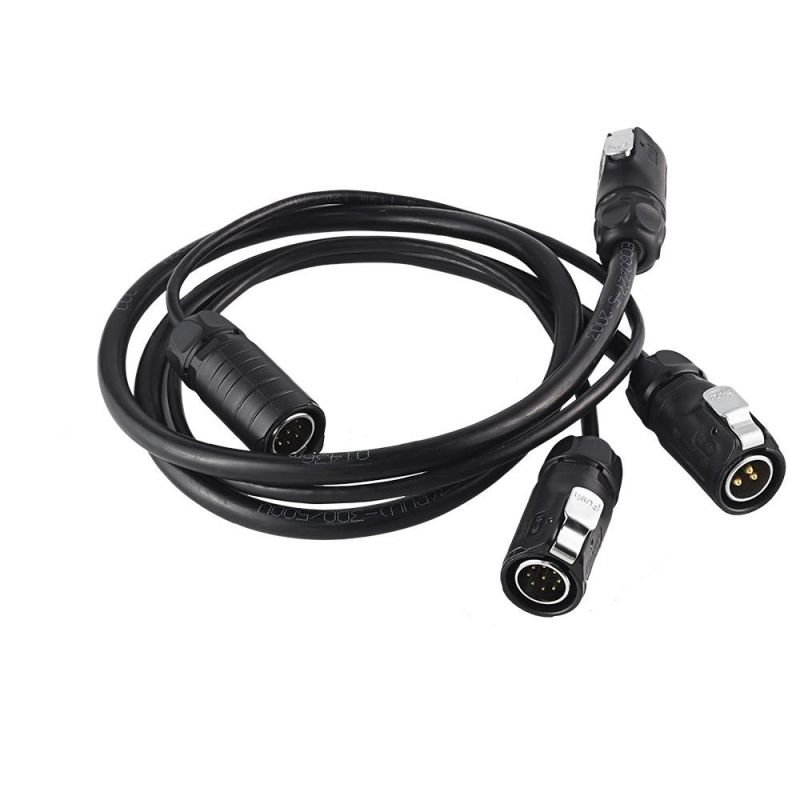

Cabinet Cables :

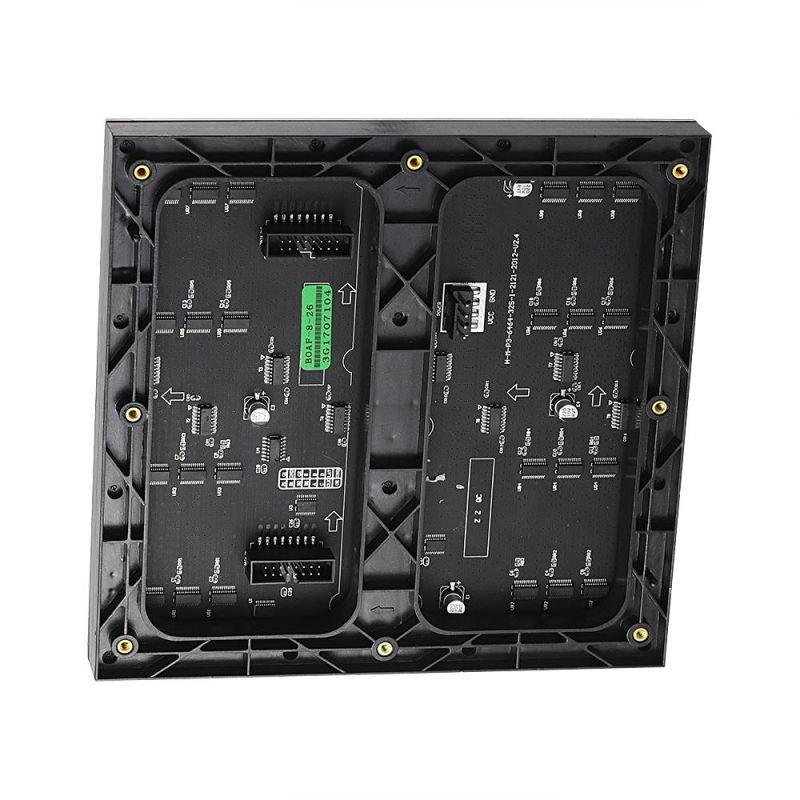

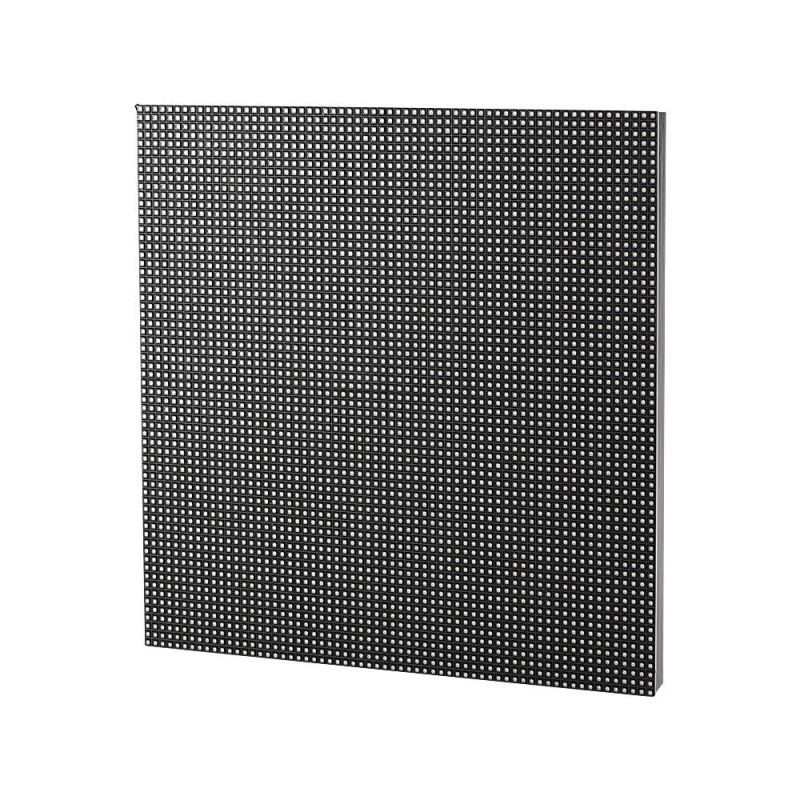

Indoor P3 3840HZ   576*576mm Led panel board

Indoor P3 Specification :

Product Model	Indoor Fixed F6	Indoor Fixed F5	Indoor Fixed F4	Indoor Fixed F3	Indoor Fixed F2.5
Pixel Pitch	6mm	5 mm	4 mm	3 mm	2.5mm
Module Size	192x192mm	160x160 mm	256x128 mm	192x192mm	160x160 mm
Module Resolution	32x32 pixels	32x32 pixels	64x32 pixels	64x64 pixels	64x64 pixels
LED	SMD3528	SMD3528	SMD2121	SMD2121	SMD2121
Standard Cabinet Size	960x960 mm	960x960 mm	768x768mm	576x576mm	480x480 mm
Standard Cabinet Resolution	160x160 pixels	192x192 pixels	192x192pixels	192x192pixels	192x192 pixels
Standard Cabinet	Iron	Iron	Iron	Iron	Iron
Physical Density	27777 Pixels/m2	40000 Pixels/m2	62500 Pixels/m2	62500 Pixels/m2	40000 Pixels/m2
White Balance Luminance	≥1500 nits	≥1500 nits	≥1200 nits	≥1200 nits	≥1200 nits
Gray Scale per Color	16384 level	16384 level	16384 level	16384 level	16384 level
Contrast	1000:01:00	1000:01:00	1000:01:00	1000:01:00	1000:01:00
Refresh Frequency	≥960 Hz	≥960Hz	≥960 Hz	≥960 Hz	≥960Hz
Visual Angle(Horizontal/Vertical)	140°/140°	140°/140°	140°/140°	140°/140°	140°/140°
Max Power	600 W/m2	600 W/m2	650 W/m2	650 W/m2	700 W/m2
Average Power	200 W/m2	200 W/m2	220 W/m2	220 W/m2	250 W/m2
Input Voltage(AC)	110 V -240 V	110 V -240 V	110 V -240 V	110 V -240 V	110 V -240 V
Working Environment Temperature	-20ºC~50ºC	-20ºC~50ºC	-20ºC~50ºC	-20ºC~50ºC	-20ºC~50ºC
Operating Humidity	10%RH~95%RH	10%RH~95%RH	10%RH~95%RH	10%RH~95%RH	10%RH~95%RH
Control System	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,D



FAQ :

 1. Q: Can I get some samples?
     A: Yes,sample order is available for quality check and market test.

 2. Q: What's your payment term? How long is your delivery time ?
     A: We accept T/T ,ALIBABA Trade Assurance ,Paypal ,Western Union ,Money Gram, and Cash
 At least 30%deposit in advance, and the balance should be paid before delivery. Our average Production time is 7-18working days after receiving the deposit.If your order is rapidly urgent,we can arrange your order firstly.

3. Q: How long is the warranty period ?
    A:  Non-artificial damage,  2-3 years warranty

4. Q: Do you have the products in stock?
    A: Yes ,of course

5. Q: Freight Cost?
    A: The shipping cost depends on different weight;
         We will choose the cheapest and safest way according your detail quantities.

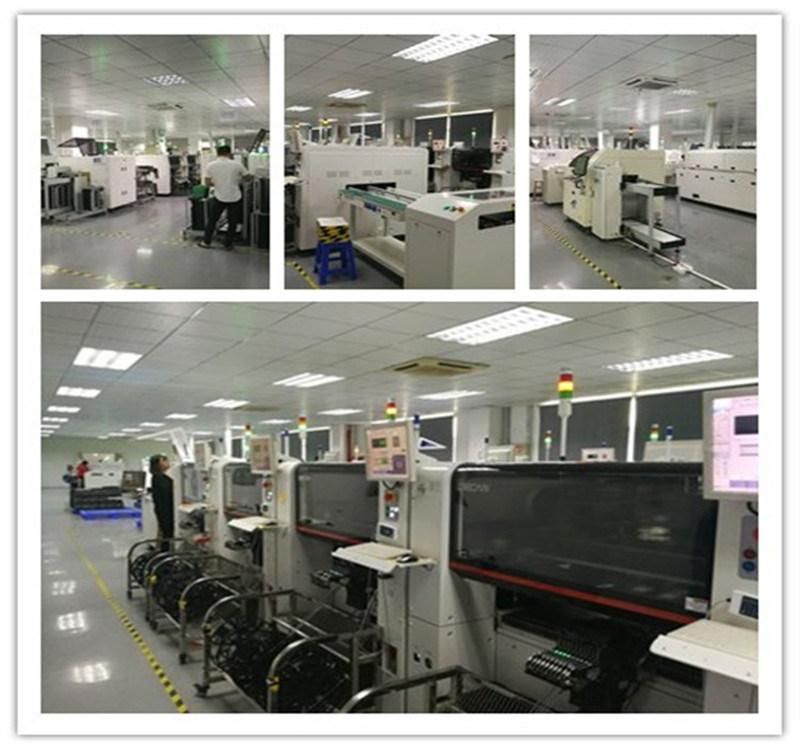

6. Q: How does your factory do regarding the quality control?
    A: Quality is priority. Every product will be fully assembled and carefully tested before packing
and shipping.

7. Q:How can I get technical support?
    A: We treasure every customer that shake hands with our Hongking.
        We offer you TEAMVIEWER help by Online Video Or can send professional engineer to your city to offer on-site guide .

8. Q:Is Available to print customer required logo on your led product ?
    A: Surely it is .Please inform and confirm the logo design details with our team ahead of the production.Then,we will follow your requirement
