• Model NO.：LW-RI 5
• System Operating Platform：Win7,8etc
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide, Sports
• IP Rating：IP31
• Certification：CE, RoHS, UL, CCC, ETL
• P5 Indoor LED Display：Indoor Rental
• RGB LED：SMD3528
• Die-Cast Cabinet：Metal Plate
• Cabinet Size(mm)：640X640X80
• Transport Package：Plywood Box or Flight Case
• Specification：CE, ROHS, CCC
• Trademark：LED World, OEM, ODM
• Origin：Shenzhen, Guangdong, China.
• HS Code：8528591090
• Production Capacity：5000sq. M,Month

ItemType NameLW-RI5LW-RI8LW-RI10pixelPixel Pitch5mm8mm10mmPixel density(dot/m2)432641562510000cabinetCabinet size (mm) 640x640mm512x512mm640x640mm640x640mmCabinet materialDie-casting Aluminium Cabinet weight8kg/cabinetElectricity parameterBrightness  (nits)≥1200  ≥1200 ≥1200 Drive Method 1/13 1/4 1/2 Refresh rate (HZ)  ≥1920  ≥1920  ≥1920 Screen work Voltage (V)110~240V/AC Screen power consumption (W/sqm)Max 450 / Average 150 Max 450 / Average 150   Max 450 / Average 150    Screen View angle 140°/140°     IP Grade  IP40Operationg Temperature/Humidity -20~50ºC10~90% RH      Storage Temperature/Humidity -40~60ºC10~90% RH          Life Time  >50000H     Standard Certification  CE CCC CE CCC  CE CCC Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.
Why choose us:
1,Price Advantage: We have the best competitive price at the market, also have the same even better quality;
2,Quality advantage: From material to finished product, from design to produce, we control all steps;
3,Service advantage: Better service at same situation, better cooperation at same service, Respond within 24 hours;
4,Excellent R&D team,lower the cost and assure you quality goods;
5,Free training is provided for our customers;
6,Energy saving, low power consumption and long lifespan 10,000 hours (about 10 years);
7,OEM & ODM available;

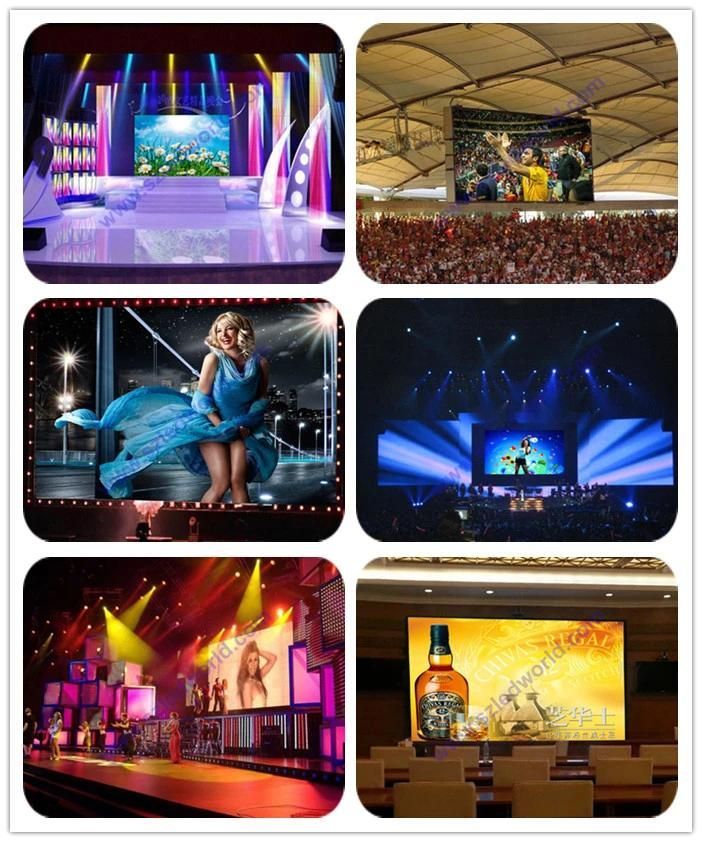

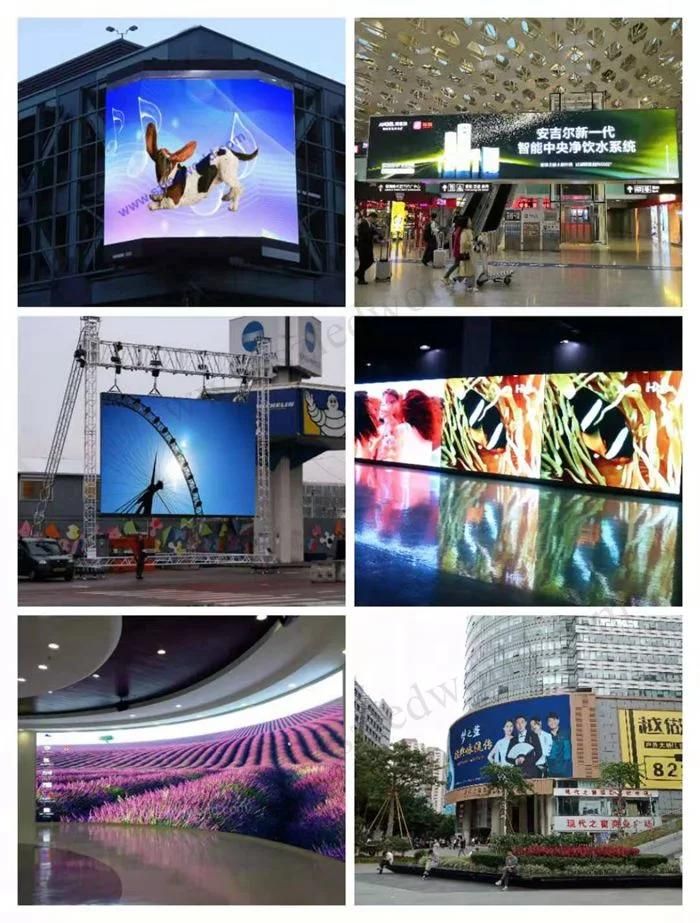

Project case:



Our company:
Shenzhen LED World CO.,LTD  was founded  in 2009, focusing on the LED technology research and LED full color display production ,sales and engineering services for the integration of private high-tech enterprises. The company has professional production equipment and excellent technology,industry veteran,high-quality,high standards of moden management  team ,a high level of professional and technical developer,has many years of operating  experience and well-trained, a significant number of skilled workers.Company strict implementation of  7 S management standard professional management standards , has passed 3C,CE,FCC,RoHS,ISO9001-2009 quality system certification,reliable quality ,advanced technology,automation of form a complete set of  products and continuous development of our roots . products are exported to USA, Mexico, Greece, Spain, Italy, UK, Uganda, Nigeria, Russia, India, Turkey, Thailand ,Vietnam, Brazil, Australia etc more than 20 countries and regions, and gained good reputation form the clients.

Workshop:

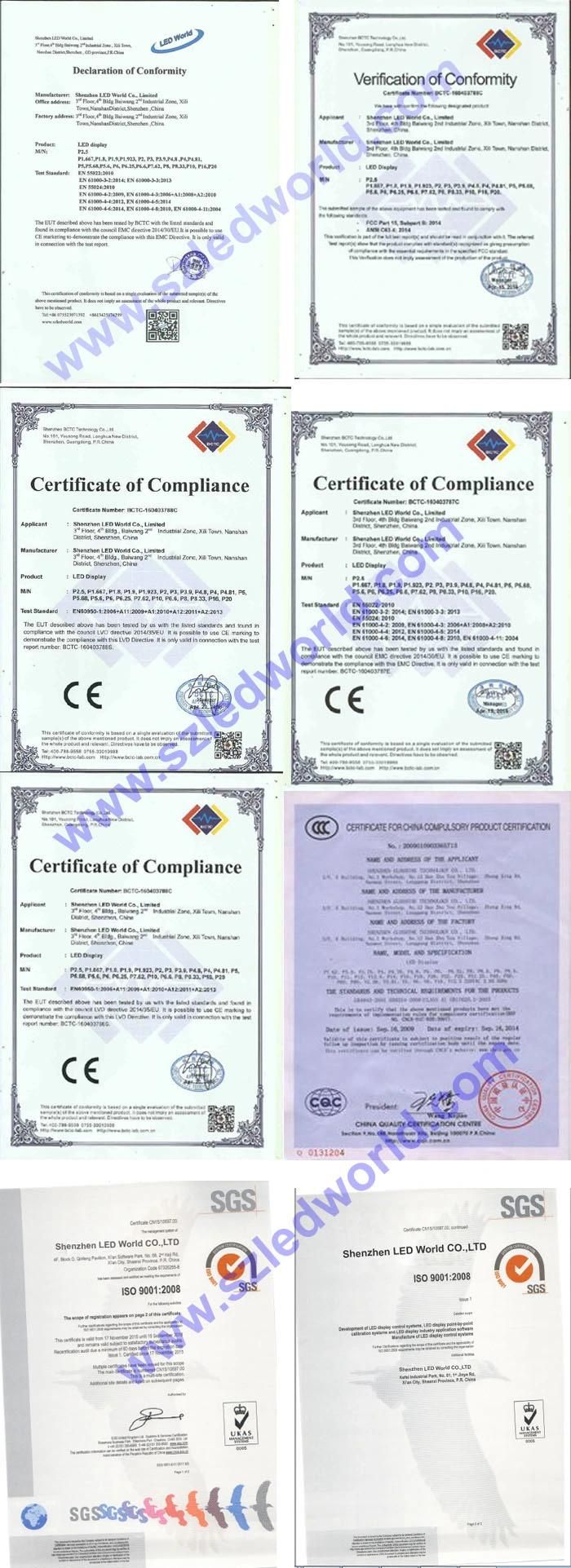

Certification:

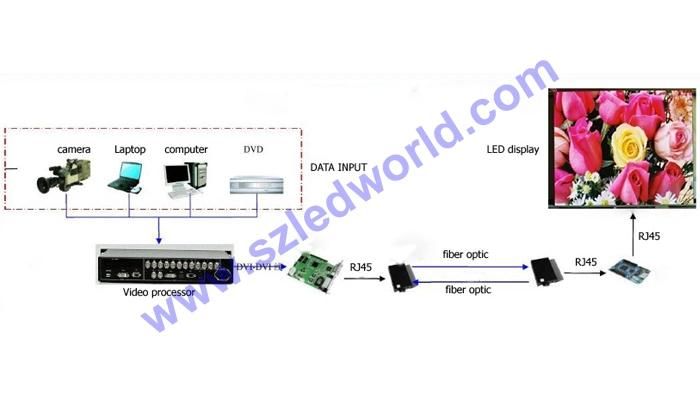

Control system:

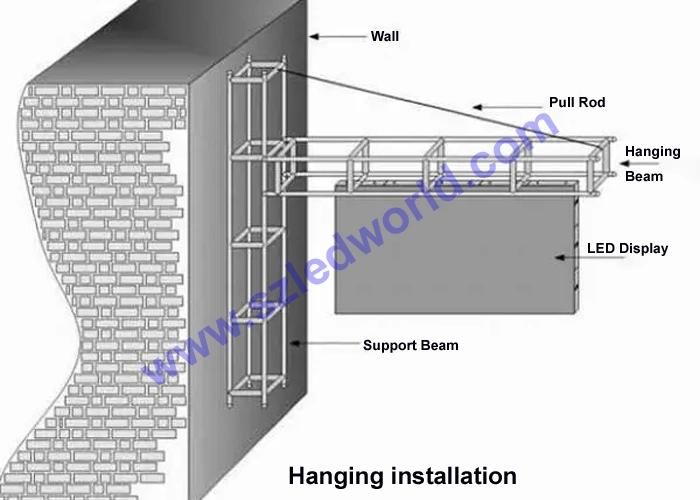

Steel structures:

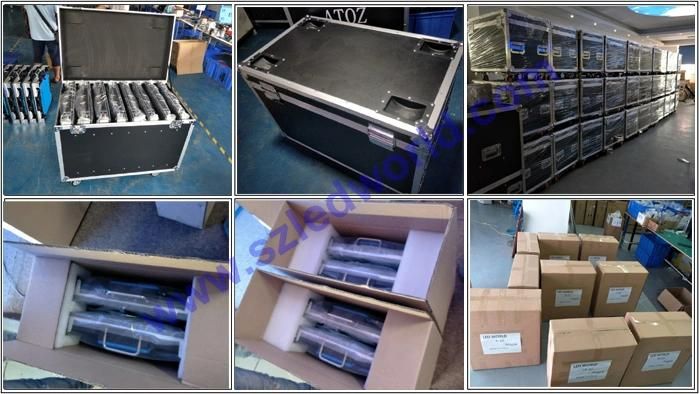

Package:



FQA:
1. May I know the Minimum order for your products?
For our products, no limit for the size of the screen, but generally speaking, one screen the dots more than 50000 dots will be clear for the audience to see the video on the screen.
2. What's the difference between DIP(1R1G1B) and sSMD(One LED, 3 in 1) ?
SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.

SMD(One LED), reduced the LED on the screens,it reduced grainy of the screen, and improve the uniform of the screen, this will make the screen have a more wide viewing angle and smooth image. With the technology advanced and SMD brightness improved, SMD is more and more used outdoor.
3. How long can I get the cargos?
Our production time is about 10-25 working days.
When we confirmed the order, we can start production after receiving your deposit       (40% TT in advance).
we will update the production details in time.
we will notice you before finish and after delivery the goods to you after we get full payment.
About the time from start port to destination, it depends on the distance and the state of the forwarder.
4. May I know the package details?
For fixed installation, we use veneer case, usually 4 cabinets in 1 veneer case;
For rental market, we suggest you use flight case, generally 8 cabinets in one flight case.
It's safe to protect the screen on the way, also economical.
5. Besides this product, may I have other options?
Yes, my dear friend. Many thanks for finish the details of this product. If it is not what you're looking for, you can also choose other items. we have HD indoor led display, full color for outdoor and indoor; Different cabinet, Steel Cabinet, Aluminum Cabinet, Die Cast Aluminum Cabinet, etc; The pixel pitch is from 1.5mm to 20mm. We also have LED advertising player and kinds of video processor.
