• Model NO.：SY-P5-8S
• Pixel Density：40000 Dots,M2
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC, FCC
• Warranty：Two Years Warranty After Shipping
• Cabinet Size：960mmx960mm, 800mmx800, 640mmx640mm or Other
• Transport Package：Plywood Box or Flight Case
• Specification：CE, RoHS, FCC
• Trademark：SENY
• Origin：Shenzhen, Guandong, China
• HS Code：8528591090
• Production Capacity：10000sq. M,Month

High Bright Outdoor Full Color LED Display for Video AdvertisingS/NItemTechnical ParametersLED Parameters1Item NameLED TypeBrightnessWave LengthH/V  Visual Angle2Red LEDSMD2727600-800mcd620-625nm140º/120º3Green LEDSMD27271800-2000mcd520-525nm140º/120º4Blue LEDSMD2727400-600mcd470-475nm140º/120ºModule Specification1Pixel Pitch5mm2Pixel ConfigurationSMD3in13Module Resolution32 x 32 pixels4Module Pixles1024 pixels5Module Size160mm X 160mmCabinet Specification1Cabinet Size(W X H X D)640mm x 640mm x 142mm2Cabinet Resolution(dot)128 x 128 pixels3Module Quanity (pcs)16pcs4Cabinet Pixels16384 pixels5Pixel Density40000 pixels/m26Cabinet MaterialsStandard waterproof cabinet for fix installationWhole Screen Specification1Screen Brightness≥6500cd/m22Driving Method1/8 scan3Best Viewing Distance5m - 40m4Max. Power Consumption1500W/m25Average Power Consumption600W/m26Gray Level8bits input, 4096 levels(212)7Display Color16M8Frame Frequency≥60Hz9Refresh Frequency≥1200Hz10Uninterrupted Working Hours≥72 hours11Screen Life-span≥100,000 hours12MTBF≥5,000 hours13Discrete Blind Spot Rate<1/1000014Continuous Blind Spot RateNone15Blind Spot Rate<1/1000016Protective ScaleIP6517Screen Plainness<±1mm18Power Supply ModeAC220±10%  50Hz/AC110±10%  60Hz19Environment Temperature & HumidityTemperature:-20 Celsius~+60 CelsiusHumidity:10%~90% RH20Control ModeSynchronous display with control PC by DVI21Control SystemDVI video card + full color control card + fiber system( optional)22Display ContentVideo, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.23InterfaceStandard Ethernet24Transmission DistanceMulti mode fiber <500m, single mode fiber <30km,internet cable <100m25Power Supply BrandG-energy, MeanWell or as you required

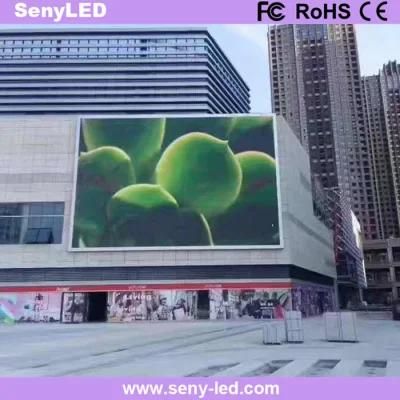

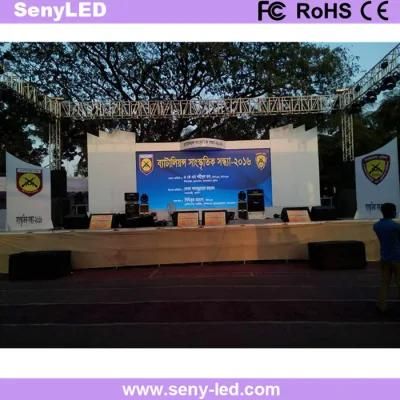

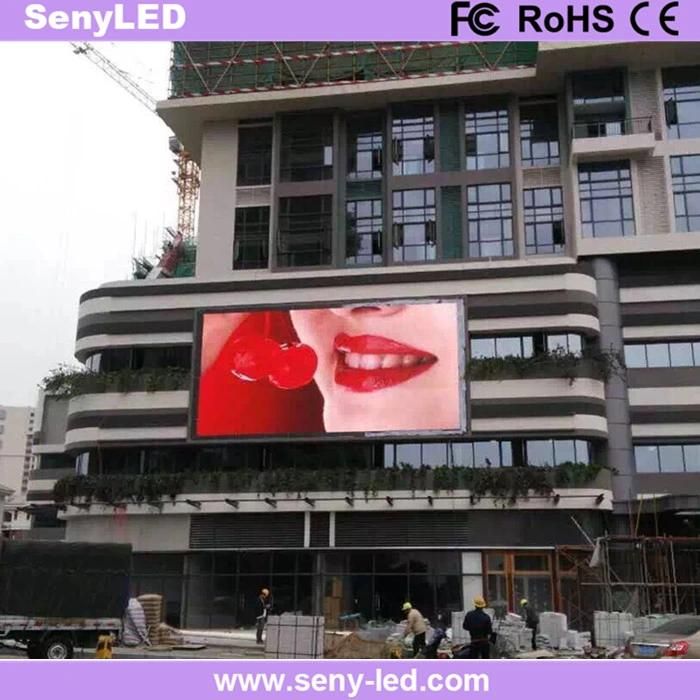

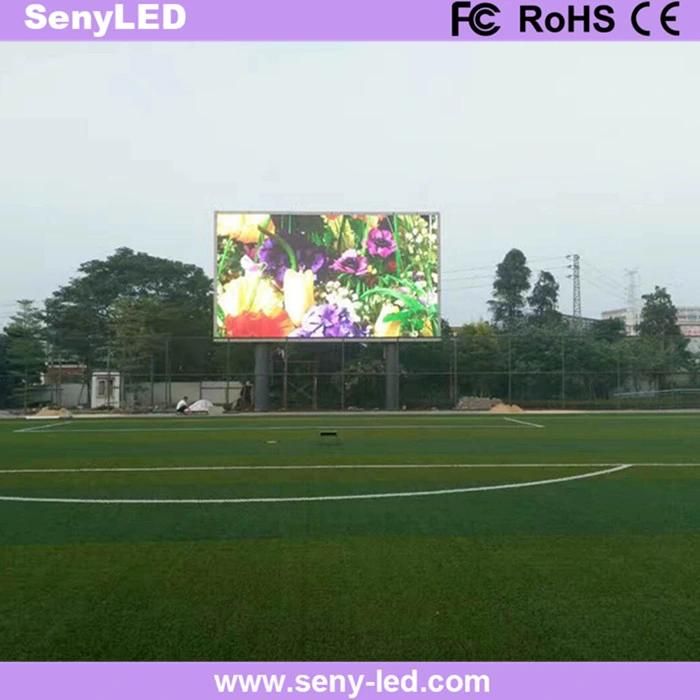

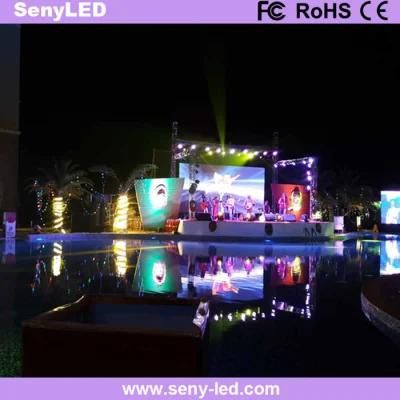

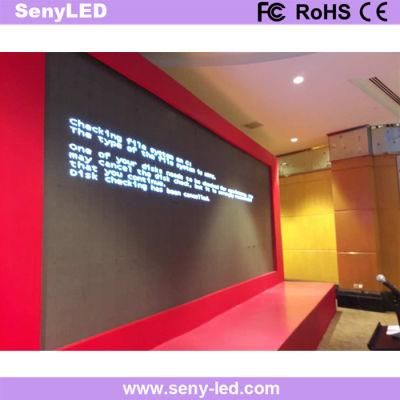

Project cases:



Certificate:

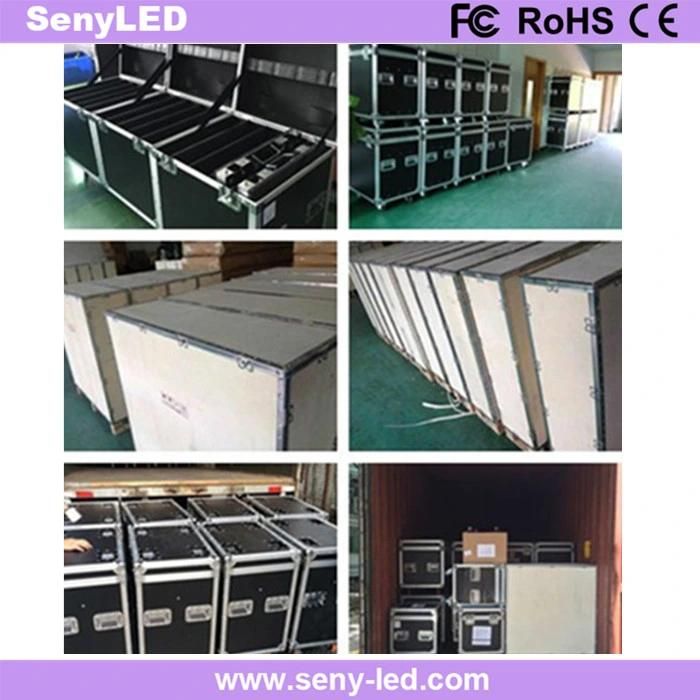

Packaging and Delivery:


Why us:
Product advantages:
1. Price Advantage: We have the best competitive price at the market, also have the same even better quality.
2. Quality advantage: From material to finished product, from design to produce, we control all steps
3. Service advantage: Better service at same situation, better cooperation at same service.
4. We ensure that our products are the CE certified, ROHS compliant, FCC identified and passed the system of ISO 9001.
