Outdoor High Brightness P16mm Waterproof LED Display Screen

Shenzhen Chuangkaiguang Co., Ltd.

Tube Chip Color：Full Color
IP Rating：IP65
Pixel Pitch：16mm
Pixel Configuration：1R, 1G, 1B
Display Function：Video Display, Image & Text Display, Text Display, Market Display
Average Power Consumption：220W , m²

Base Info

Model NO.：16mm
Pixel Density：3906dots,Sqm
Scanning Mode：Static Scan
Display Type：LED Video Display
Application：Advertising
Certification：CE, RoHS, UL, CCC, ETL
Module Size：256X256mm
Module Resolution：16X16dots
Cabinet Size：1024X1024X150mm
Cabinet Resolution：64X64dots
Protection Grade：IP65
Screen Brightness：7500nits
Ave. Power Consumption：230W,Sqm
Certificates：Ce
Service：Rear, Front
Controller：Nova,Linsn
Transport Package：Wooden Case
Specification：1024x1024mm
Trademark：CKGLED
Origin：China
HS Code：8528591090
Production Capacity：6000sqm,Month

Description

NO.ItemParameter1ModelF162Pixel Pitch(mm)163LED Configuration1R1G1B4LED TypeDIP3465Screen Resolution3906dots/sqm6Module size(mm)256x2567Module resolution(dots)16x168Scan methodStatic constant current drive9Cabinet size(mm)1024x102410Cabinet resolution(dots)64x6411Cabinet materialIron / Aluminum12Brightness(cd/sqm)≥750013Viewing angleH:120°/ V:50°14Grey Scale16bit15Refresh rate(Hz)≥350016Ave. power consumption (W/sqm)23017Max. power consumption(W/sqm)75018IP gradeF:IP65 / R:IP5419ControllerNovastar / Linsn20MaintenanceRear service21Color(T) >28122Input Voltage(V) AC 110V-220V +/-10%23Frame frequency(Hz) 6024Working humidity 10~95%RH25Working temperature -30ºC~60ºC26Certificates RoHS / CE / CCC

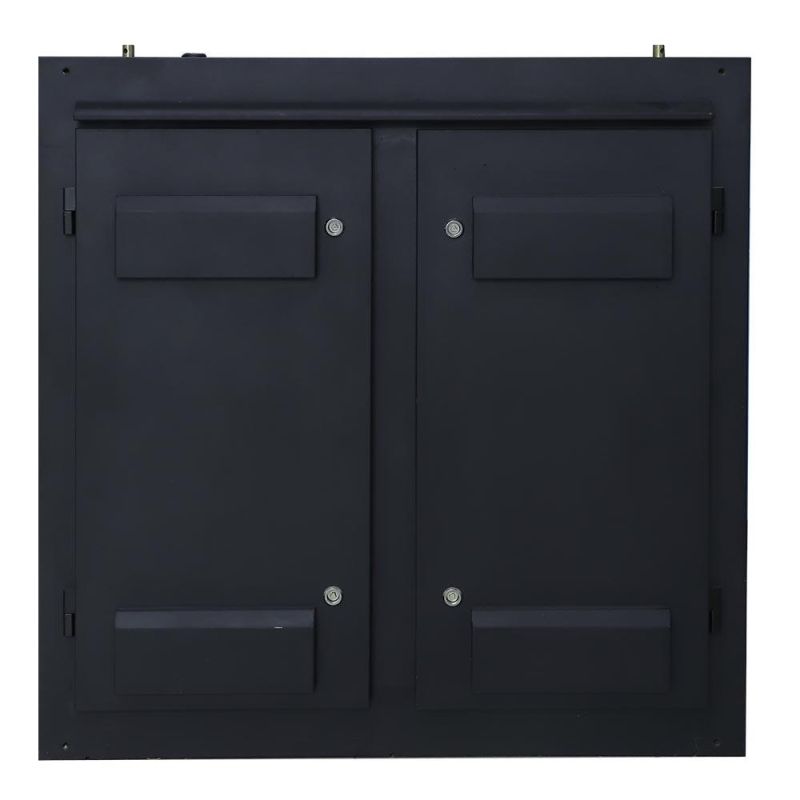

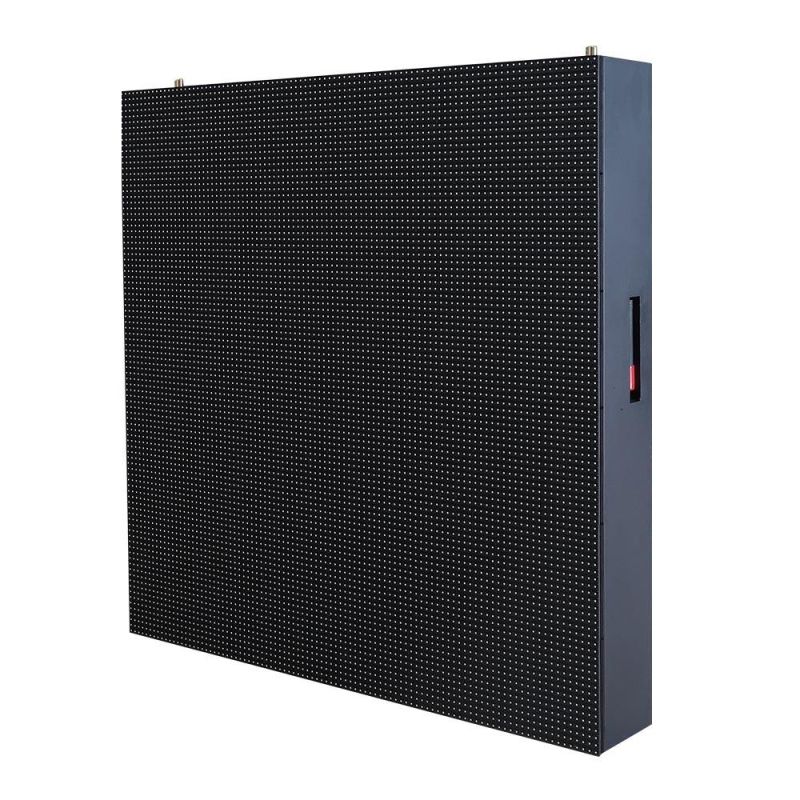

LED Display Panel photos:

Outdoor High Brightness P16mm Waterproof LED Display Screen

Outdoor High Brightness P16mm Waterproof LED Display Screen

Outdoor High Brightness P16mm Waterproof LED Display Screen

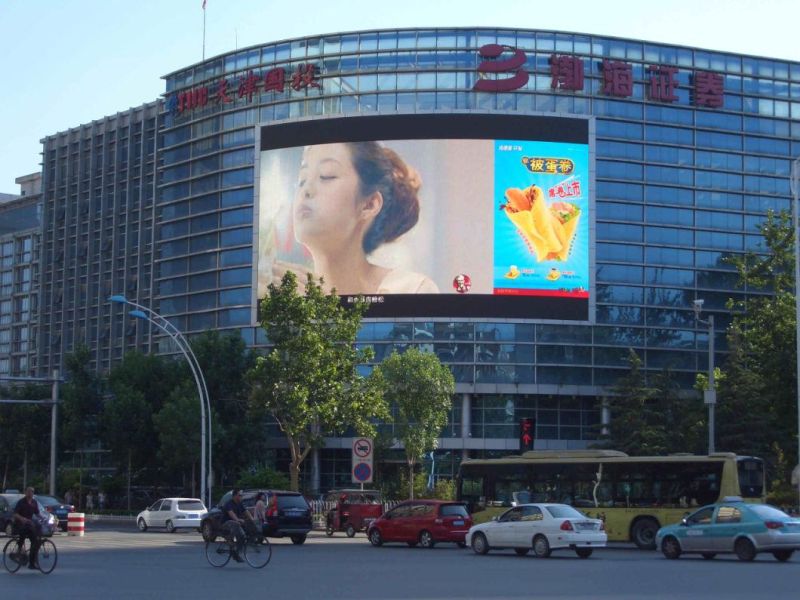

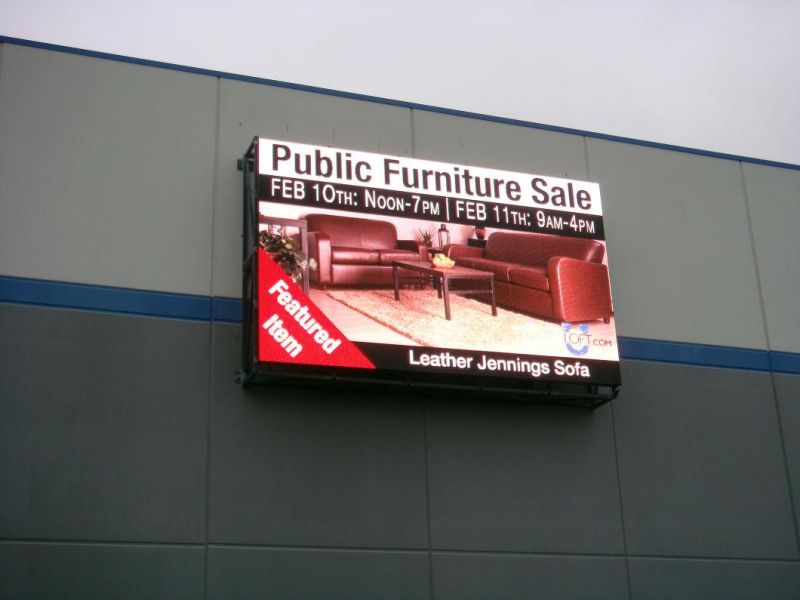

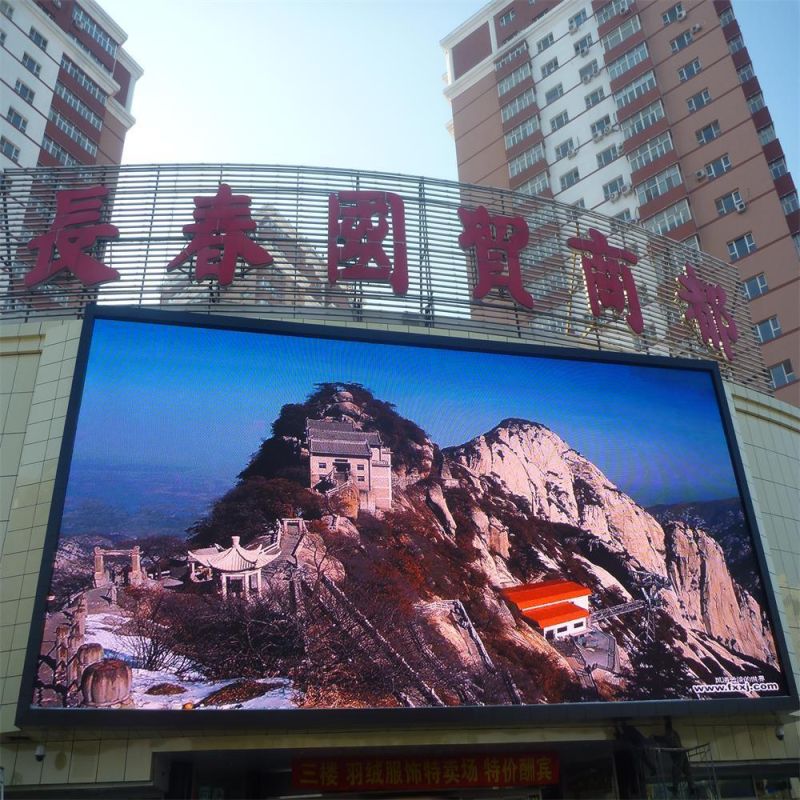

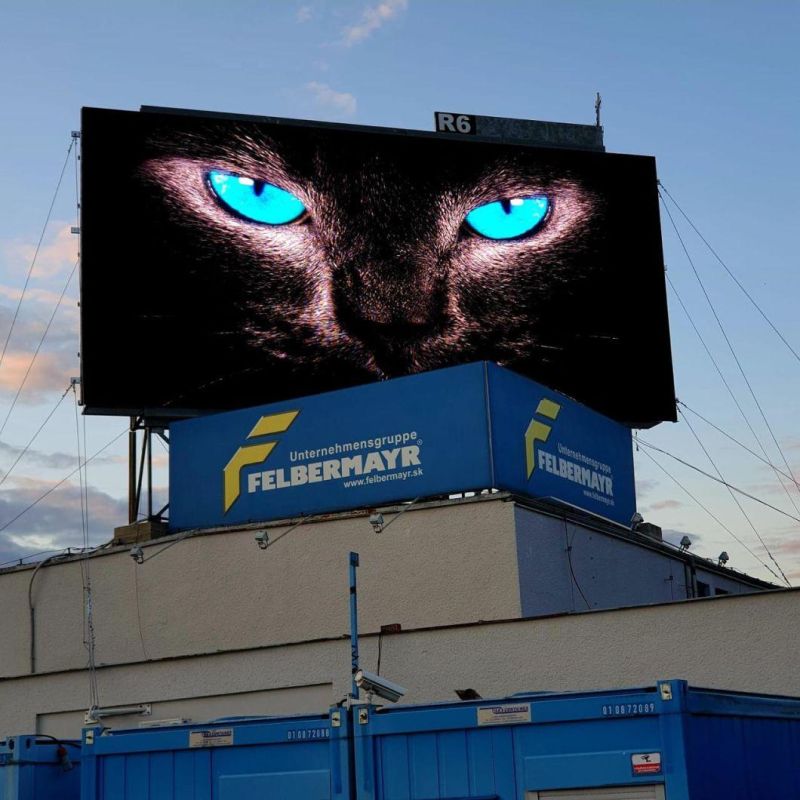

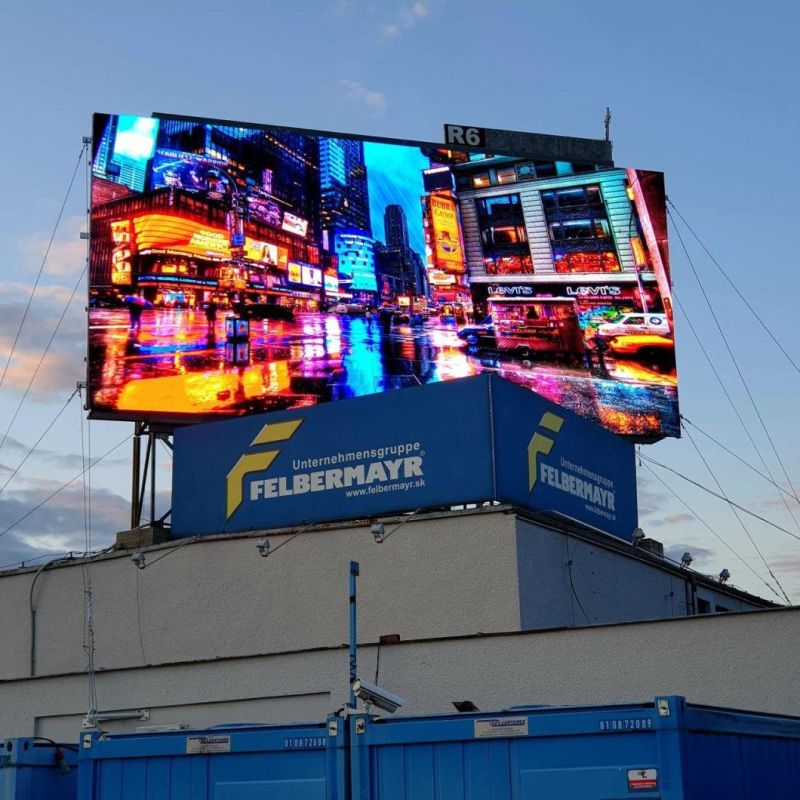

LED display Project With CKGLED Brand:

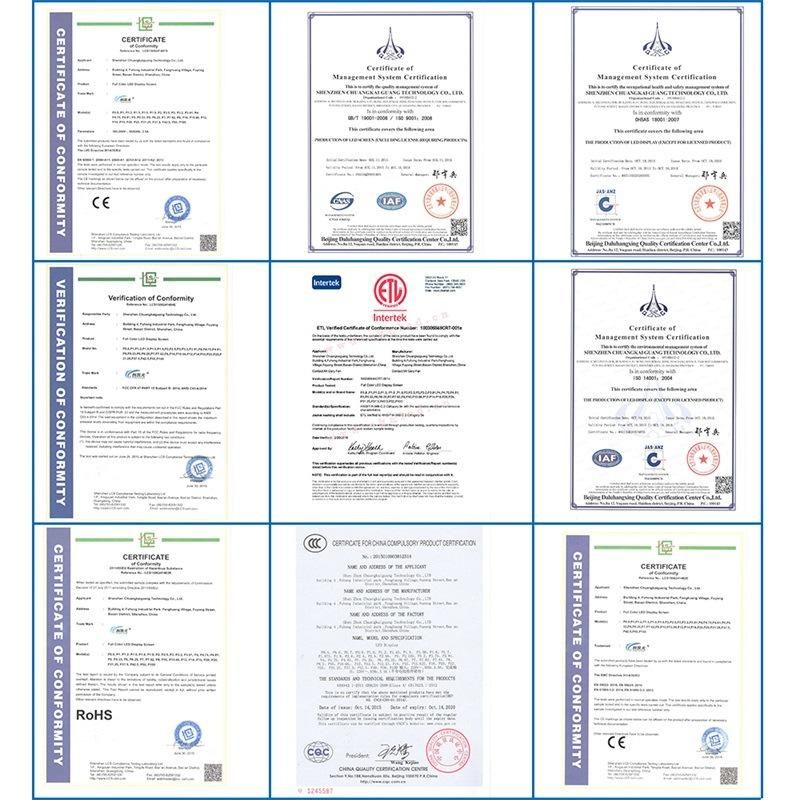

Certificates:

Outdoor High Brightness P16mm Waterproof LED Display Screen

Outdoor High Brightness P16mm Waterproof LED Display Screen

Wooden case package:

Outdoor High Brightness P16mm Waterproof LED Display Screen

Outdoor High Brightness P16mm Waterproof LED Display Screen
