• Model NO.：FOX-P10-Outdoor
• Pixel Density：10000 dot , m²
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：160*160mm
• Warranty Time：3-5 Years
• Production Time：5-12 Working Days
• LED Lamp：Epistar ,Nichia ,CREE
• IP Grade：IP 65
• Screen Normal Size：4*3m, 5*3m, 6*4m ,7*5m etc
• Installation Environment：on The Wall , with Support
• Material：Anti-Cold ,Anti-Hot
• Cabinet Size：800*800mm, 960*960mm
• Viewing Distance：8-250m
• Transport Package：Anti-Shaking Wooden Package&Air Freight Case
• Specification：P10
• Trademark：Foxgolden
• Origin：Shenzhen, Guangdong, China
• HS Code：8528591090
• Production Capacity：3000sqm,Month

Basic Info.

Model NO. FOX-P10-Outdoor Pixel Density 10000 dot / m² Scanning Mode 1/4 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, UL, CCC, ETL Module Size 160*160mm Warranty Time 3-5 Years Production Time 5-12 Working Days LED Lamp Epistar ,Nichia ,CREE IP Grade IP 65 Screen Normal Size 4*3m, 5*3m, 6*4m ,7*5m etc Installation Environment on The Wall / with Support Material Anti-Cold ,Anti-Hot Cabinet Size 800*800mm, 960*960mm Viewing Distance 8-250m Transport Package Anti-Shaking Wooden Package&Air Freight Case Specification P10 Trademark Foxgolden Origin Shenzhen, Guangdong, China HS Code 8528591090 Production Capacity 3000sqm/Month

Product Description

High brightness  P10 outdoor advertising  LED Billboard

------------------------------------------------------------------------------
Function and Technology Character
(1) Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.

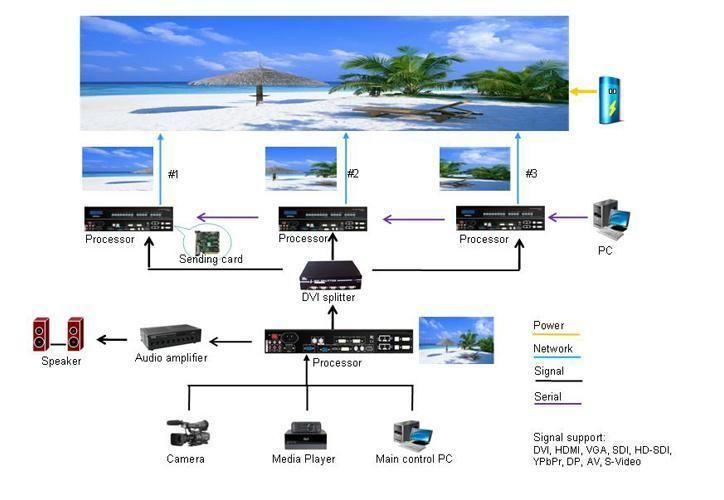

(2) Information source can be camera, video, VCD, DVD, LD, TV and so on.
(3) Clear picture without flicker and distortion.
(4) Brightness, contrast, saturation can be adjust by itself and manual.
(5) Show everything with your PC does synchronously or offline does asynchronously
(6) Super correcting technology for distortion.
(7) One interface for sound signal and two for video signal at least.
(8) Connected and controlled by PC via LAN and remote control.
(9) Multiform language editions, such as English, French, Germany, Greek, Russian and so on.
(10)Can be connected with PC and the website, and also can be controlled remotely via wireless controller



Number	Item	P10
1	Pixel pitch	10mm
2	Size of  modual	160mm X 160 mm
3	Resolution of modual	16 X 16
4	Density of pixel	10000dots/m2
5	Pixel configuration	1R1G1B
6	Red wavelength	625± 2nm
7	Green wavelength	525± 2nm
8	Blue wavelength	470± 2nm
9	Colors	16777216
10	Best viewing distance	10-120m
11	Horizontal viewing angle	120°
12	Maximum power consumption	≤ 1500w/m 2
13	Brightness	≥ 8000cd /m 2
14	Gray scale	16bits per color
15	Color temperature	6500k
16	Control method	Synchronization & Asynchronization
17	Driving method	1/4scanning
18	Frame frequency	60Hz
19	Refresh frequency	≥ 300Hz
20	Working voltage	AC220V/110V± 10%
21	IP grade	IP67(adjustable)
22	Working temperature	-20° C~80° C
23	MTBF	> 10000 hours
24	Life span	> 100, 000 hours
25	Defects rate.	≤ 0.00001(Led display line standard< 0.0001)
26	Computer operation system	Win XP/Vista/  Win 2000/WIN7
27	Video signal	RF, S-Video, RGB, RGBHV, YUV, YC. ect


Trade Terms

Payment terms:	-Sample Charge: T/T or Western Union -35% deposit before production, 65% balance before shipping -Paypal; Western Union
Shipping:	-Delivery within 10-15 working days upon receiving deposit payment
After-Sales-Service:	-Lifetime with professional engineer support. -Within 1 year, supply spare parts for free if the machine has quality problem

Our Services
1. Guarantee
(1) We guarantee all our displays, modules, parts for two full year. During this time, we will replace or remend our goods for free if there is something wrong with them.
(2) We will provide maintenance for a lifetime and charge for the raw materils only.

2. Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.

3. Maintenance and Consulation
(1) We provide full maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consulation by E-mail, call, MSN or other ways for free.

4. Documents and Certification
(1) We provide the operation manual, software, test report and so on.
(2) We can also provide all kinds of certification such as CE, UL and so on.

5. CAD Drawing and Fixing
(1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
(2) We will send our engineers to your place if we are expected after our negotiation.

6. Additional service
(1) We provide you the forwarding information, and some other information such as flight box, structure information for your reference for free.

Company Information

foxgolden.en.made-in-china.com

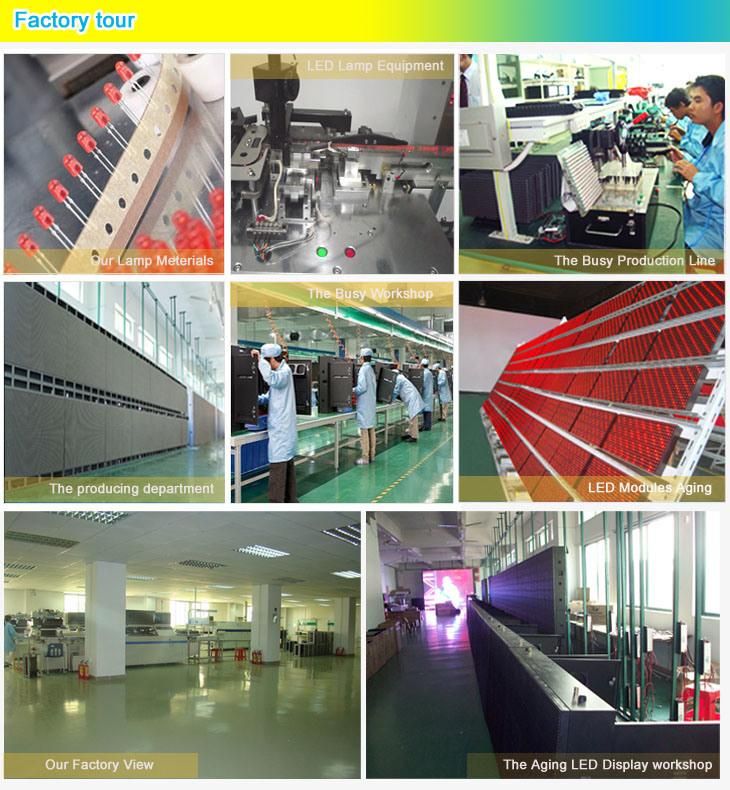

FOXGOLDEN GROUP LTD (foxgolden.en.made-in-china.com)is a professional high quality LED display Manufacturer. We are speicficated in LED Display field for 11 years, and have already being the 7 years' Alibaba Golden Supplier. Since 2004, we have been dedicating to the aim that producing high quality products, and now FOXGOLDEN has been well integrated in terms of R&D, produce, project, capital and marketing.
