• Model NO.：P6-indoor
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP43
• Certification：CE, RoHS, CCC

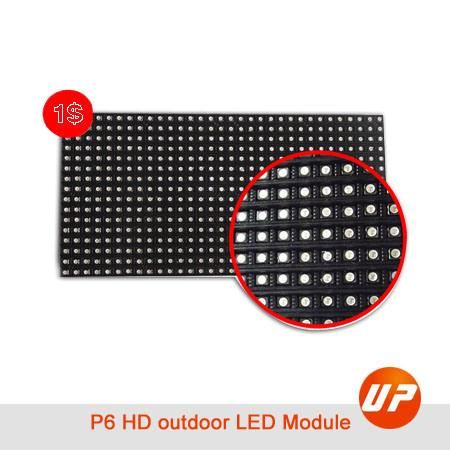

• Module Size：384*192mm
• Best Viewing Angle：140°
• Working Voltage：AC220V,110V± 10%
• Refresh Frequency：≥ 1200Hz
• Product：LED Display Screen
• Transport Package：1. Anti-Shaking Wooden Package. 2. Air Flight Case
• Specification：CE&RoHS&UL&FCC&SGS&3c
• Trademark：FOXGOLDEN
• Origin：Shenzhen City, Guangdong Province, China
• HS Code：8532100000
• Production Capacity：4000sqm,Month

Technical parameterUnit moduleModule size384*192mmPixel pitch6mmPixel density27777dots/m2Pixel configuration1R1G1BLed specification3528 SMD 3 in 1Pixel resolutionW: 192dots*H: 96dotsCabinetDimension768mm*768mm*150mmQuantities of module32pcsPower supply4pcsThermal dischargeFan*2pcsTotal weight40kgBest viewing angle140°TemperatureStorage: -35degree~+85degreeWorking: -35degree~+85degreeThickness15cm can adjustableRemarks: cabinet size can changed, upon project need.PowerWorking voltageAC220V/110V± 10%Average power consumption400-600WMax. Power consumption≤ 1100W/sqmCurrent≤ 20mA(single LED)Control systemCPUPentium4 or aboveOperating systemWIN98/2000/NT/XPControl methodSynchronizationMain technical parameterDriving device1/16scanningDrive typeConstant Current driver ICRefresh frequency≥ 1200HzGrey scale/colors256 levels of each color(R/G/B)/16.7M colorBrightness of white balanceMore than 2200cd/sqmBrightness adjustment256 levels of each color(R/G/B)by softwareOperating ambient humidity10%--95%Video signalPAL/NTSCControl systemDVI display card+full color controller cardMTBF≥ 10, 000hoursLife span≥ 100, 000hoursFlatnessTolerance of interpixel ≤ 0.3mmTolerance of modules clearance≤ 0.6mmPower switchAutomatic switchDisplay mode1024*768Communication distanceUnshielded twisted pair net line transmission distance 100m, max transmission distance 200m.
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KMSoftwareLED media player






Function and Technology Character
(1) Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
(2) Information source can be camera, video, VCD, DVD, LD, TV and so on.
(3) Clear picture without flicker and distortion.
(4) Brightness, contrast, saturation can be adjust by itself and manual.
(5) Show everything with your PC does synchronously or offline does asynchronously
(6) Super correcting technology for distortion.
(7) One interface for sound signal and two for video signal at least.
(8) Connected and controlled by PC via LAN and remote control.
(9) Multiform language editions, such as English, French, Germany, Greek, Russian and so on.
(10)Can be connected with PC and the website, and also can be controlled remotely via wireless controller


Website:http://foxgolden.en.made-in-china.com
Foxgolden had been engaged in designing and manufacturing LED display for more than 11 years. Our products have certificates like CE/FCC/RoHS/NQA .
The best quality products and excellent service will be provided to you by our professional team.

Warmly welcome to visit FOXGOLDEN(foxgolden.en.made-in-china.com ) !!!! -:)
