• Model NO.：QCP3
• System Operating Platform：Windows Series
• Display Type：LED Video Display

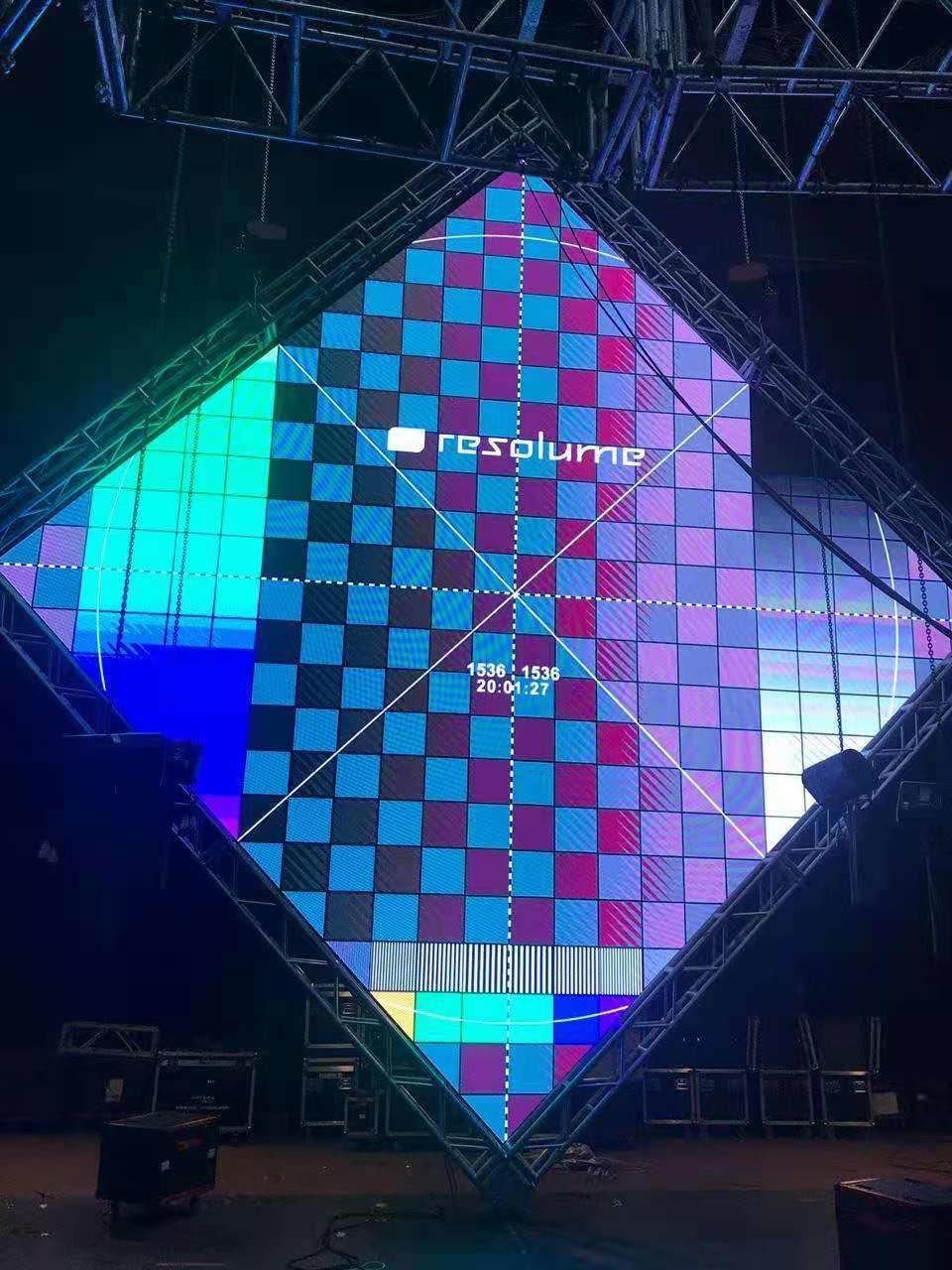

• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP43
• Certification：CE, RoHS, CCC, ISO9001, CB, FCC
• Brightness：1200CD
• Refresh Rate：1920Hz,3840Hz
• Best View Distance：>5m
• Life Time：100, 000hours
• Cabinet Material：Steel,Die Casting
• Cabinet Size：576mm*576mm
• Warranty：2 Years

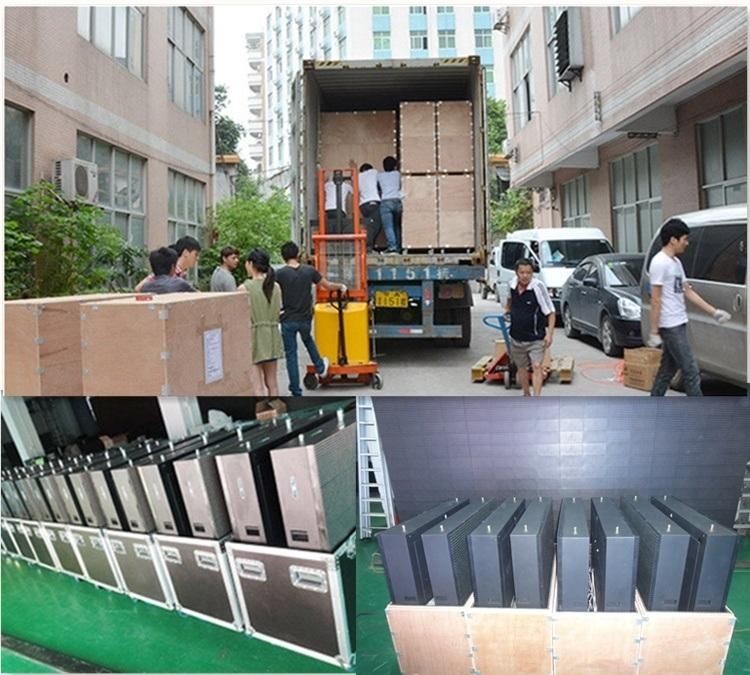

• Transport Package：Wooden Case,Flight Case
• Specification：192*192mm
• Trademark：Qichuang
• Origin：China
• HS Code：8528591090
• Production Capacity：3000 Square Meter,Month

Basic Info.

Model NO. QCP3 System Operating Platform Windows Series Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, RoHS, CCC, ISO9001, CB, FCC Brightness 1200CD Refresh Rate 1920Hz/3840Hz Best View Distance >5m Life Time 100, 000hours Cabinet Material Steel/Die Casting Cabinet Size 576mm*576mm Warranty 2 Years Transport Package Wooden Case/Flight Case Specification 192*192mm Trademark Qichuang Origin China HS Code 8528591090 Production Capacity 3000 Square Meter/Month

Product Description

No.	Specifications	Project
1.	Model	P3 indoor full color led display
2.	LED chip	Sanan Epistar/Silan/Cree etc...
3.	Physical Pixel Pitch	3mm
4.	Physical Pixel Density	111111dots/m 2
5.	Pixel composition	SMD,1Red, 1Green,1Blue
6.	Moduel Size	192*192mm
7.	Moduel resolution	64*64dots
8.	Cabinet thickness	< 80 mm
9.	Bracket of cabinet	Easy to install onto the LED cabinet and unistall .
10.	Brightness	≥ 900cd/ m 2
11.	Colors	16.7million
12.	Viewing angle	Horizontal ≥160°,   Vertical  : ≥ 140°
13.	Viewing distance	5m -100m
14.	Scan frequency	≥1920 Hz/3840Hz There will be one receive card in each cabinet  ,so that the LED display wont sparked . Also it is very easy to move and connetct
15.	Video Frame Rate	≥150 fps
16.	Control method	Controlled by PC, synchronous display
17.	Life span( half brightness)	≥100,000 hours
18.	Weight	30Kg /sqm
19.	Average power consumption	200W/sqm
20.	Peak power consumption	800W/sqm
21.	Input voltage	AC220V/50Hz ±10%    or  AC110V/60Hz ±10%  or AC380V/60Hz ±10%
22.	Operating Environment	Temperature:-20+60      Humidity:10%95%RH
23.	Operating system	Windows series
24.	Type of video signal	S-video, composite video ,RGB ,VGA ,DVI

Other products:
Indoor fixed LED screen: P1.53,P1.875,P2,P2.5, P3, P4, P5, P6, P8, P10
Indoor rental LED screen: P2.5,P2.976,P3, P3.91, P4, P4.8, P4.81, P5, P6
Outdoor fixed LED screen: P2.5, P3, P4, P5, P6, P6.67,P8, P10
Outdoor rental LED screen:P3, P3.91, P4, P4.8, P4.81, P5, P6, P8, P10
Small pitch LED screen: P1.25, P1.53
Front service maintenance LED screen: P6.67, P8, P10
Stadium perimeter LED screen: P4, P5, P6, P8, P10
LED poster player: P1.875, P2.5, P3, P4, P5, P6, P8, P10


FAQ
 1. Experienced&Professional:
16-year manufacturing experience on LED displays, professional workmanship & design.

 2. Best raw materials:
Taiwan Sanan LED chip,high quality,high brightness and long life span.

 3. Competitive price:
 100% factory price,competitive and reasonable price.

 4. Strict quality control:
The quality of our display is excellent. We use the materials of high quality suppliers in the world,strictly control the production process, and pass the multiple quality inspection to ensure that everyproduct is qualified.

  5. Quality guarantee:
All our LED display screens is more than 100,000 hours life span.

 6. Long warranty:
Two- year warranty, any quality problem during warranty time will be handled .

7. Prompt &Professional service:
Any inquires will be replied within 24/7 hours and you'll get helpful suggestions from us.

Your questions
Q1:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P1.25, P2, P3 P4.....P8,P10 means that the pixel pitch is 1.25mm, 2mm, 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.
 Best raw materials: 3. Competitive price: 6. Long warranty:7. Prompt &Professional service:

Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, thedesired effect and the customer budget.

Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.

Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging. We can also send our engineers to the site to guide the installation if needed.

Q5:What about the lead time?
A:Orders less than 50 square meter display, lead time is 15 working days.

Q6:Can I order a sample?
A:Yes, your sample orders are welcome, after checking our quality and service, we are confident that you will come back for your future orders.



After-sales services

1. Free guarantee repair (including labor and material): free for repair service in Qualitywarranty period and reasonable charge for spare parts and maintaining service afterthe quality warranty period.

2. Responding time: upon receiving user's notification, we ensure 24/7 hours after-salestechnical support.

3. Spare parts: necessary spare parts are provided together with products to
customers.When your screen have problem, please call us, email us, or through the Skype,Wechat, WhatsApp, QQ etc to tell us the detailed fault information (if the fault could bepresented by pictures, please take pictures and send them to us as possible as youcan),Our after-sales service engineers will offer technical support and guidance basedon your description.

A. Real-time communication service
We can provide customer services through TM, Email, Skype,Wechat,WhasApp, QQ etc.

B. Remote control service
We can operate the customer's computer remotely via Internet, to install and set up software for customers, and to dispose of the technical fault of LED display system software.

C. Post Service
Under warranty, customers could send the defective components back to us; we will repair them and return to you as soon as we can.

The shipping cost from the buyer to the supplier is covered by the User. The shipping cost from supplier to the Buyer will be paid by the supplier.
