• Model NO.：outdoor p10
• Pixel Density：10000 dot , m²
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC, ETL
• Module Size：160*160mm
• Waterproof：IP65
• Vertical Viewing Angle：100degree
• Horizontal Viewing Angle：120degree
• Transport Package：Anti-Shaking Wooden;Air Flight Case;Carton Case.
• Specification：CE; ROHS; SGS. ETC.
• Trademark：FOXGOLDEN
• Origin：Shenzhen
• HS Code：8528591090
• Production Capacity：4000sqm,Month

Basic Info.

Model NO. outdoor p10 Pixel Density 10000 dot / m² Scanning Mode 1/4 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, CCC, ETL Module Size 160*160mm Waterproof IP65 Vertical Viewing Angle 100degree Horizontal Viewing Angle 120degree Transport Package Anti-Shaking Wooden;Air Flight Case;Carton Case. Specification CE; ROHS; SGS. ETC. Trademark FOXGOLDEN Origin Shenzhen HS Code 8528591090 Production Capacity 4000sqm/Month

Product Description

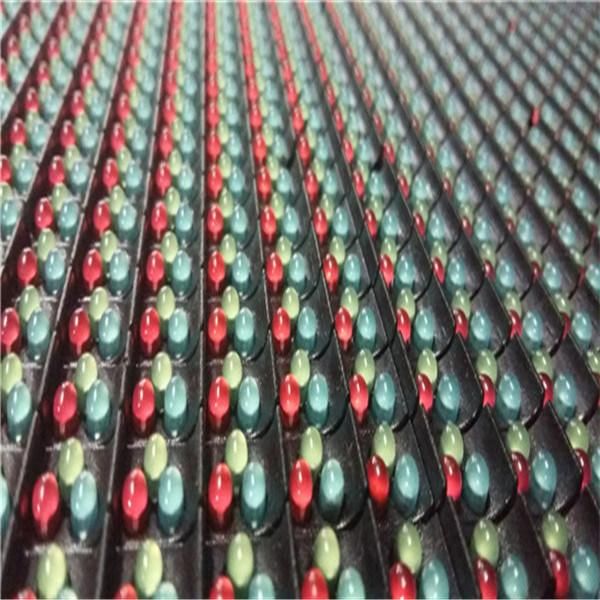

p10 dip LED screen panel display stand

FOXGOLDEN is one of the most impressing Hi-tech enterprises in China. We have specialized in this business for 11 years.
Competitive Advantage:
1. Wide application field & short ROI time: Commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media, shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen, air port LED display screen, telecommunication LED display screen system for information showing and instruction
2. High Contrast: 4000: 1, which is a very high level to ensure a vivid image of our LED display screen system...
3. First-class LED chip: Supplied by COTCO/CREE/AXT/SILAN/TAI WAN LED lamps to ensure the long lift-time and high brightness of our LED display screen system
4. Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED display screen's investment.
5. Long-term Brightness: 9000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.
6. Easy Installation & Using: Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system
7. Convenient Servicing: Front and rear cabinet access make the maintance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.

Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top Quality+Reasonable Price+Responsible After Service=Successful & Win
Trade Terms
1. Payment: T/T, 30% deposits before production, 70% balance to be paid before dleiverying
2. Shipping freight are quoted under your requests
3. Shipping port: Shenzhen, Mainland China
4. MOQ: 1sqm

Numbers	Technical indexes	Specification
1	Pixel Pitch	10mm
2	Density of Pixel	10000dots/M2
3	Pixel configuration	R1PG1B
4	Size of Single Board	160mm X160mm
5	Colors	16777216
6	Best Viewing Distance	10-120m
7	Horizontal Viewing Angle	120°
8	Maximum Power Consumption	1000W/m2
9	Brightness	>7500cd/m2
10	Gray Scale	16bits per color
11	Color Temperature	6500k
12	Control Method	synchronization &synchronization
13	Driving method	1/4scanning
14	Frame Frequency	60Hz
15	Refresh frequency	300Hz
16	Working Voltage	AC220V/110±10%
17	IP grade	IP65
18	Working temperature	-20 degree centigrade ~ +80degree centigrade
19	Computer operation system	Win XP/ winVista, Win 2000.Win7
20	Brightness adjustment	256 grade manual, 8 grade automatic
21	Video signal	RF, S-Video, RGB, RGBHV, YUV, YC.ect
22	Software	LED play software
23	MTBF	More than 10000 hours
24	Life Span	100,000 hours

Website:http://foxgolden.en.made-in-china.com
Foxgolden had been engaged in designing and manufacturing LED display for more than 11 years. Our products have certificates like CE/FCC/RoHS/NQA .
The best quality products and excellent service will be provided to you by our professional team.
