• Model NO.：P1.923
• System Operating Platform：Win XP,Win 2000.Win7 Nt
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP43
• Certification：CE, RoHS, CCC, ETL
• Cabinet Material：Die-Casting Aluminum
• LED Type：Black 1010
• Cabinet Size：400X300mm
• Module Size：200X150mm
• Transport Package：Flight Case or Wooden Case
• Specification：CE, FCC. ROHS, 3C
• Trademark：PRT
• Origin：Shenzhen
• HS Code：8528591090
• Production Capacity：1000sq. M,Month

Basic Info.

Model NO. P1.923 System Operating Platform Win XP,Win 2000.Win7 Nt Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, RoHS, CCC, ETL Cabinet Material Die-Casting Aluminum LED Type Black 1010 Cabinet Size 400X300mm Module Size 200X150mm Transport Package Flight Case or Wooden Case Specification CE, FCC. ROHS, 3C Trademark PRT Origin Shenzhen HS Code 8528591090 Production Capacity 1000sq. M/Month

Product Description

Ultra HD P1.923 full color led moving sign for indoor rental or permanent install, high contrast ratio,good performance, Ultra high definition

Product Features:

1. Strong Aluminum material cabinet,keep strong configuration

2. Small panel size of 400×300mm,can be used as a TV screen singly

3. High definition,high refresh rate,high gray scale,keep the good performance

4. Seamless splicing,good uniformity, no fans no noise

5. Small pixel is more popular in the market, widely used in video meeting, TV, monitor and message board with perfect display

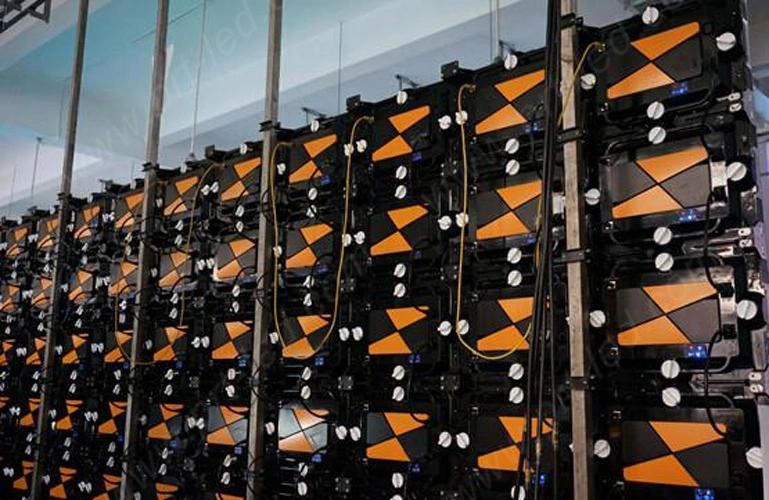

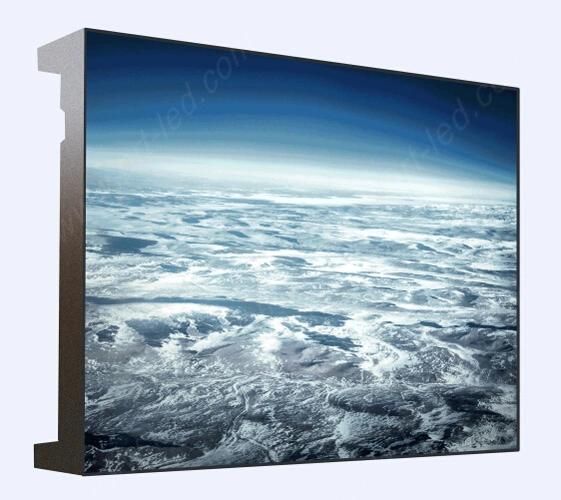

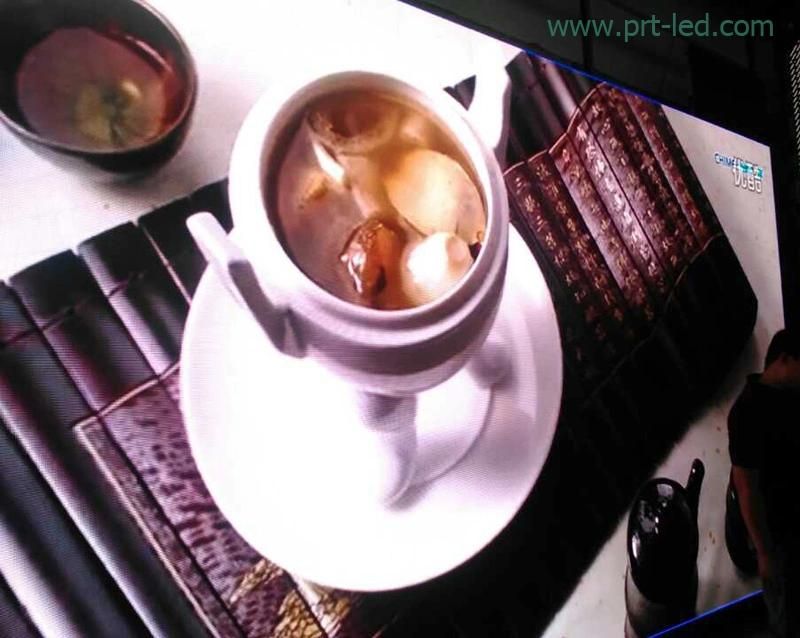

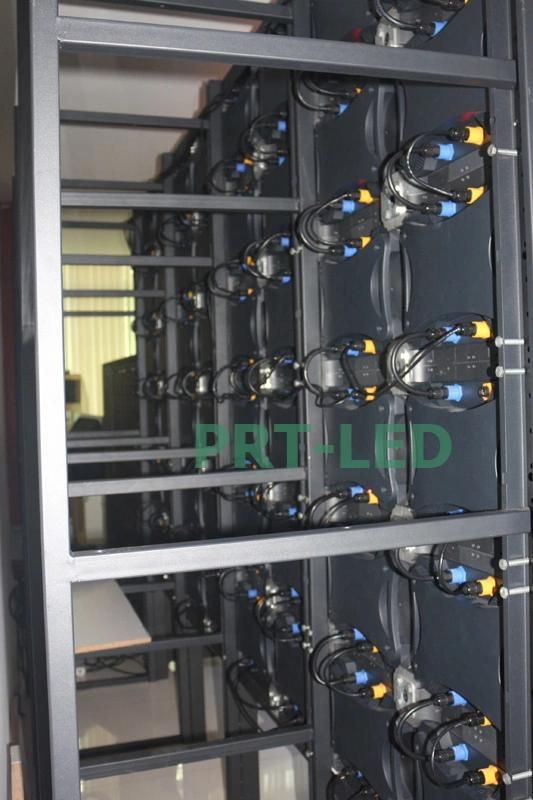

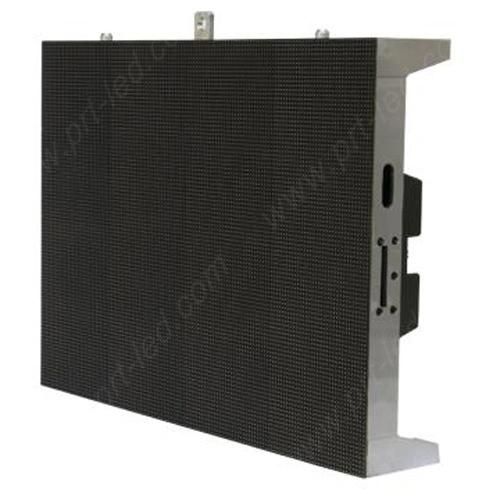

Please see more pictures for your reference



No.	Parameter	Specification
1	Pixel Pitch(mm)	1.92
2	Pixel Density	270400pix/sq.m
3	LED Type	SMD1010(nation star)
4	LED Wave Length(nm)	R:620-625/G:517.5-520/B:465-467.5
5	LED Luminous Intensity(mcd)	R:100~130/G:120~156/B:20~26
6	Viewing Angle	H/V:140°/140°
7	Brightness	1000cd/m2
8	Drive Method	1/26 scan
9	Driving IC	MBI5153+4067(black-out)
10	Color Depth	16bit
11	Refresh Rate(Hz)	2000
12	Frame Rate(Hz)	≥60
13	Brightness Adjustment	Manual/Automatic/Remote
14	Module Size(mm)	200×150
15	Module Resolution(dots)	104×78
16	Cabinet Size(mm)	400×300
17	Cabinet Display Resolution(dots)	208×156
18	Cabinet Type and Material	Die-casting Aluminum
19	Cabinet Weight(Kg)	5.6kg
20	Power Supply	5.0V 40A
21	Voltage(V)	AC 220V
22	Avg. Power Consumption	350W/sq.m
23	Max. Power Consumption	850W/sq.m
24	Service Access	Rear Access
25	IP Grade	IP31
26	Operating Temp/Humidity	-20ºC~50ºC, 10~90%RH
27	Storage Temp/Humidity	-40ºC~60ºC, 10~90%RH
28	Lifetime(Normal Temp)	≥50000H
29	System Control	Nova star
30	Compliant Standard	CCC,CE
