- Model NO.：SY-P3.91-16S
- System Operating Platform：Win98,2000,Nt,XP
- Display Type：LED Video Display
- Application：Stage Performance
- IP Rating：IP40
- Certification：CE, RoHS, UL, CCC, ETL, FCC
- Cabinet Size：500mm X 500mm
- Transport Package：Flight Case
- Specification：CE, RoHS, FCC
- Trademark：SENY
- Origin：Shenzhen, China.
- HS Code：8528591090
- Production Capacity：5000sqm,Month
| Die-Casting Indoor/ Outdoor Full Color LED Display Screen for Stage Video Advertising |
| S/N | Item | Technical Parameters |
| LED Parameters |
| 1 | Item Name | LED Type | Brightness | Wave Length | H/V Visual Angle |
| 2 | Red LED | SMD2121 | 120-140mcd | 620-625nm | 140º/120º |
| 3 | Green LED | SMD2121 | 360-435mcd | 520-525nm | 140º/120º |
| 4 | Blue LED | SMD2121 | 80-100mcd | 470-475nm | 140º/120º |
| Module Specification |
| 1 | Pixel Pitch | 3.91mm |
| 2 | Pixel Configuration | 1R1G1B |
| 3 | Module Resolution | 64 x 64 pixels |
| 4 | Module Pixles | 4096 pixels |
| 5 | Module Size | 250mm X 250mm |
| Cabinet Specification |
| 1 | Cabinet Size(W X H X D) | 500mm x 500mm x 90mm |
| 2 | Cabinet Resolution(dot) | 128 x 128 pixels4pcs16384 pixels65410 pixels/m2 |
| 6 | Cabinet Materials | Die Casting Aluminum Cabinet for rental purpose |
| 7 | Cabinet Weight | 8.3kg per cabinet |
| 8 | PackagingFly case |
| 9 | Fly Case Size | 60*57*75CM ( one case for five cabinets )/ G.W.: 72kg |
| Whole Screen Specification |
| 1 | Screen Brightness | ≥1200cd/m2 |
| 2 | Driving Method | 1/16 scan |
| 3 | Best Viewing Distance | 3.91m - 40m |
| 4 | Max. Power Consumption | 1200W/m2 |
| 5 | Average Power Consumption | 500W/m2 |
| 6 | Gray Level | 8bits input, 4096 levels(212) |
| 7 | Display Color | 16M |
| 8 | Frame Frequency | ≥60Hz |
| 9 | Refresh Frequency | ≥1200Hz |
| 10 | Uninterrupted Working Hours | ≥72 hours |
| 11 | Screen Life-span | ≥100,000 hours |
| 12 | MTBF | ≥5,000 hours |
| 13 | Discrete Blind Spot Rate | <1/10000 |
| 14 | Continuous Blind Spot Rate | None |
| 15 | Blind Spot Rate | <1/10000 |
| 16 | Protective Scale | For indoor use only |
| 17 | Screen Plainness | <±1mm |
| 18 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
| 19 | Environment Temperature & Humidity | Temperature:-20 Celsius~+60 Celsius |
| Humidity:10%~90% RH |
| 20 | Control Mode | Synchronous display with control PC by DVI |
| 21 | Control System | DVI video card + full color control card + fiber system( optional) |
| 22 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
| 23 | Interface | Standard Ethernet |
| 24 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m |

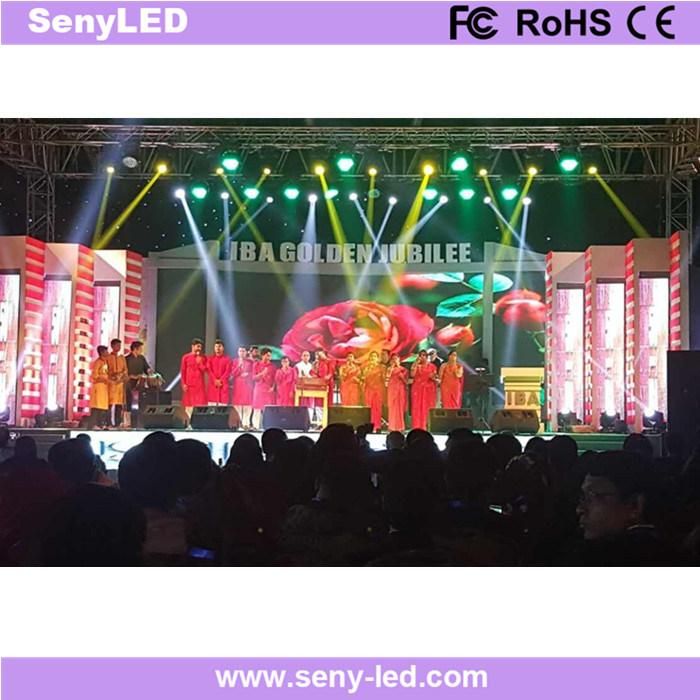

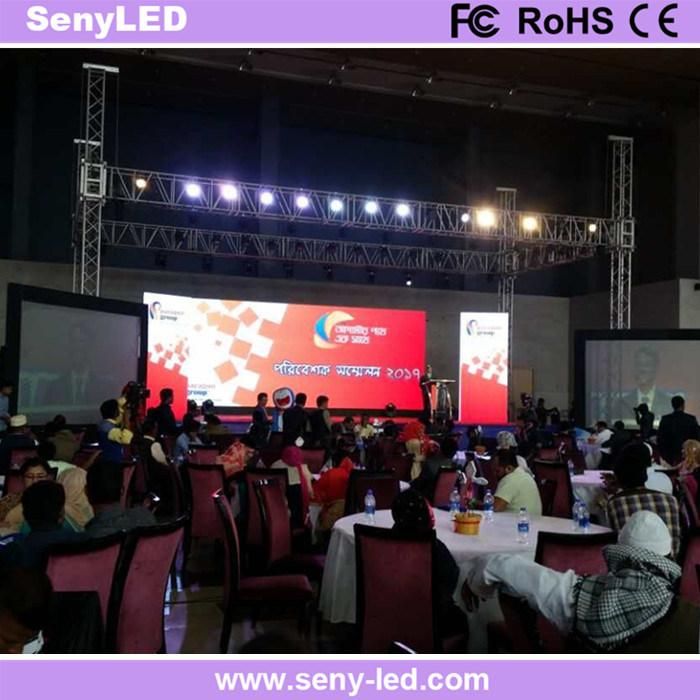

Project cases:

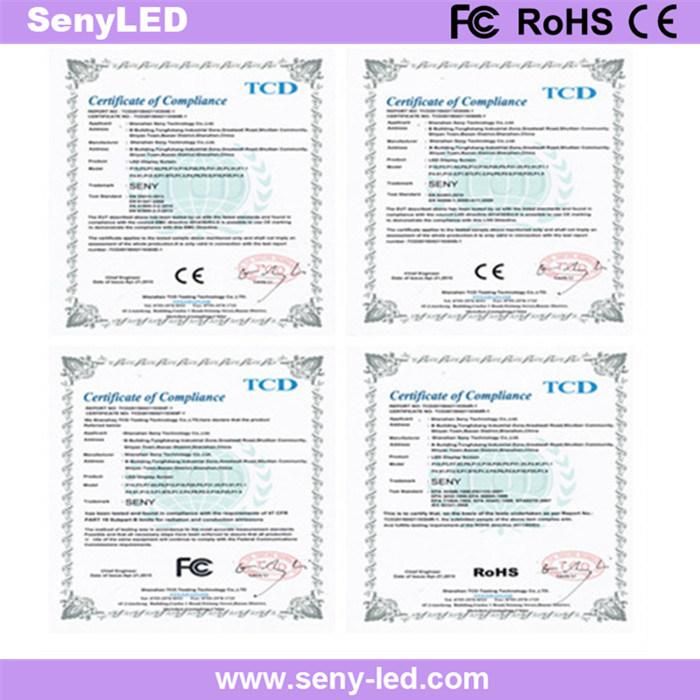

Certificate:

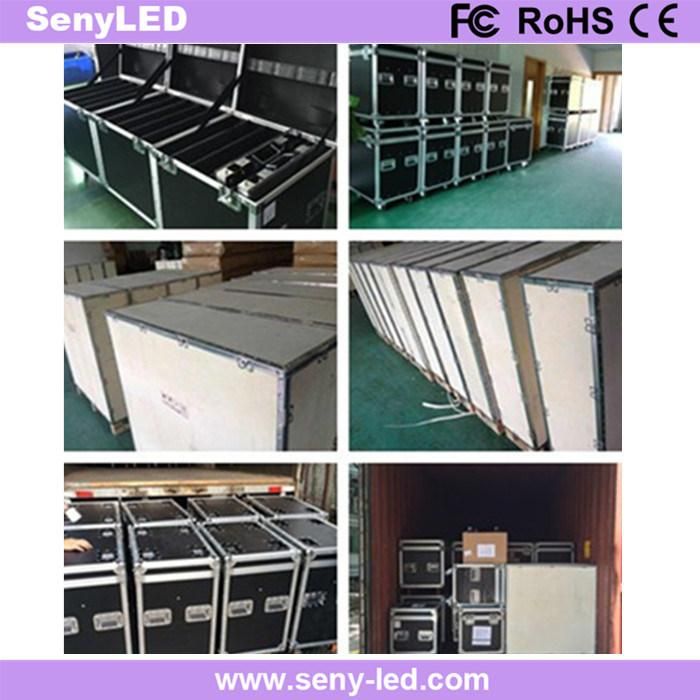

Packaging and Delivery:
Our service: 1. Your inquiry about our products or price will be replied in 24hrs
2. OEM&ODM, any of your customized requirement we can help to design and put into product
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality + Reasonable price + Responsible After Service=Successful & Win-Win
6. SENY can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
