• Model NO.：P6 led display module
• System Operating Platform：WIN2000
• Display Type：LED Video Display
• Application：Stage Performance, Advertising
• IP Rating：31
• Certification：CE, RoHS, CCC
• Panel Size：384mm*192mm
• Cabinet Size：768mm*768mm
• Brightness：1600CD
• LED Encapsulation：Epistar
• LED Lamp：SMD3528
• Drive IC：16016,5124
• Working Temperature：-25-+55
• Storage Temperature：-35-+65
• Refresh Rage：>1000Hz
• Humidity：10%-95%Rh
• Transport Package：Air Box & Carton Box & Wooden Box
• Specification：CE, FCC, RO-HS, SGS
• Trademark：JIACAI
• Origin：Quanzhou, Fujian, China
• HS Code：8528591090
• Production Capacity：5000sqm,Month

Technical PrametersPROJECTP6 indoor full color LED display boardPixel pitch6mmPixel density27777 Pixels/sqmModule size(W*H)384 W(mm)192 H(mm)Module pixels(W*H)64Pixels(W)32 Pixels(H)Pixel configuration1Red 1Green 1BlueDrive modeconstant current driving 1/8 scanLED lamp typeSMD3528Cabinet size(W*H*D)768 W(mm)768 H(mm)Cabinet resolution128Pixels(W)128 Pixels(H)Color scale65,536 degreeView angle(H/V)140/120 degreeBrightness (White balance)≥1600cd/sqm.Power consumption(one cabinet)Max:1000W/sqm.     Average:350W/sqm.Operating VoltageAC100V±10% or 220V ±10%;   50---60HZNet weight39 Kg/M 2 for Iron cabinetOperating temperature-25°C----+55°C (Customized power supply:-45°C---+60°C) Operating humidity10%_95%RHLife time≥100,000hoursMTBF5,000 hoursWhole Display Flatness≤0.3mm JunctureFrame frequency>60 Hz/sRefresh rate≥1000Hz /sControl distance100m (without repeater), single mode fiber:20km, multi mode fiber: 500mPower 110V/220V±15% 50--60HzLED control systemLINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectableOperating systemWindows 2000 / Windows Xp / Windows 7Protections for outdoor display  IP31Maintenance wayRear  Access Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI

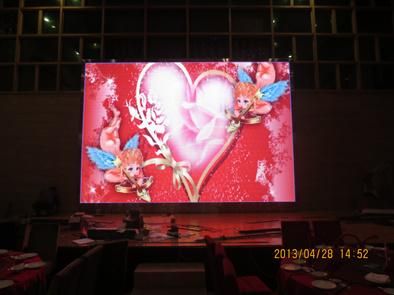

P6 indoor led display application:




Our Company:
