• Model NO.：6mm
• Pixel Density：27777dots,Sqm
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：192X192mm
• Module Resolution：32X32mm
• Cabinet Size：768X768
• Cabinet Resolution：128X128dots
• Screen Brightness：4500nits
• Protection Grade：IP65
• Compliance：Ce
• Service：Rear Service
• Controller：Nova, Linsn
• Life Span：100000 Hours
• Input Voltage：AC 100~240 V
• Viewing Distance：6~60 M
• Cabinet Material：Iron,Aluminum
• Refresh Rate：1920 Hz
• LED Type：SMD3535
• Transport Package：Wooden Case
• Specification：768x768mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

NO.ItemParameters2Pixel Pitch(mm)63LED Configuration1R1G1B4LED TypeSMD35355Screen Resolution27777dots/sqm6Module size(mm)192x1927Module resolution(dots)64x328Scan method1/8 constant current drive9Cabinet size(mm)768x76810Cabinet resolution(dots)128x12811Cabinet materialIron / Aluminum12Brightness(cd/sqm)≥600013Viewing angleH:140°/ V:140°14Grey Scale14bit15Refresh rate(Hz)≥192016Ave.Power consumption (W/sqm)30017Max.Power consumption(W/sqm)90018IP gradeF:IP65 / R:IP5419ControllerNovastar / Linsn20MaintenanceRear service21Color(T)>28122Input Voltage(V)AC 110V-220V +/-10%23Frame frequency(Hz)6024Working humidity10~95%RH25Working temperature-30ºC~60ºC26CertificatesRoHS / CE / CCC


Photos:

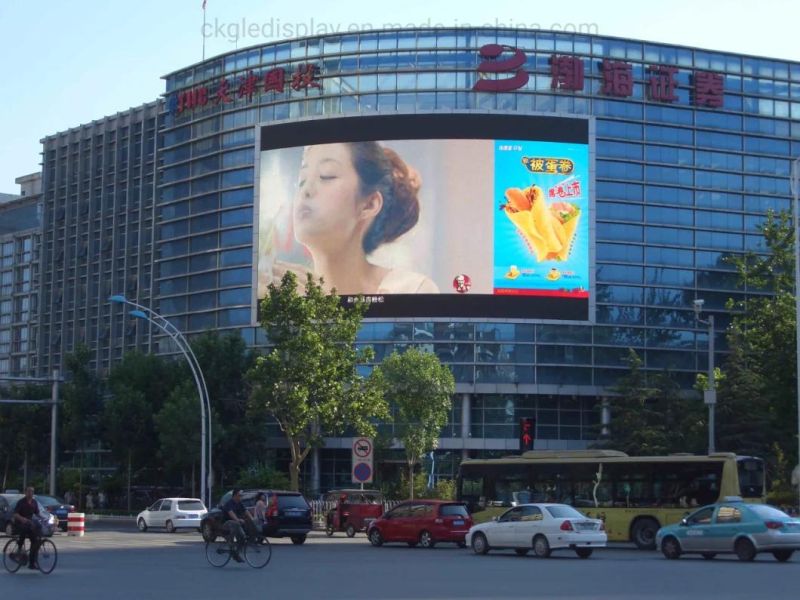

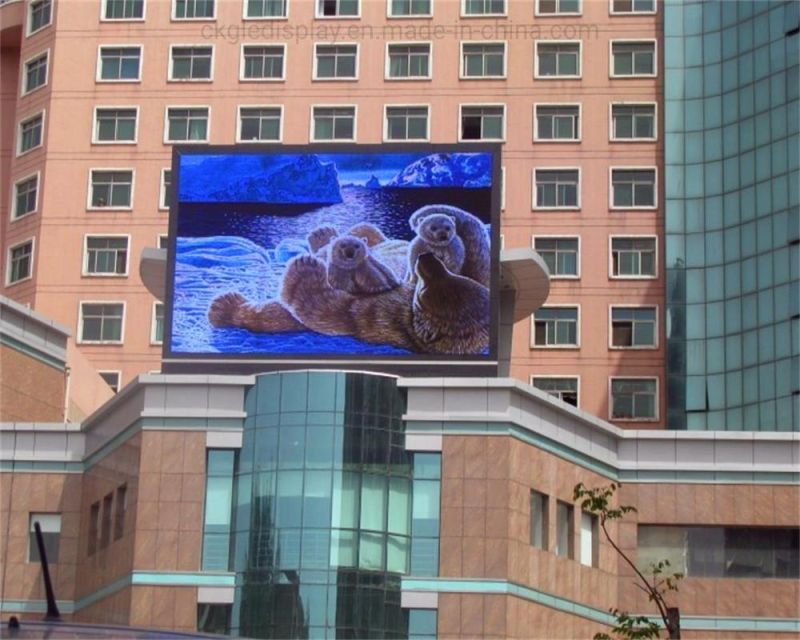

LED Dispaly Project With CKGLED Brand:

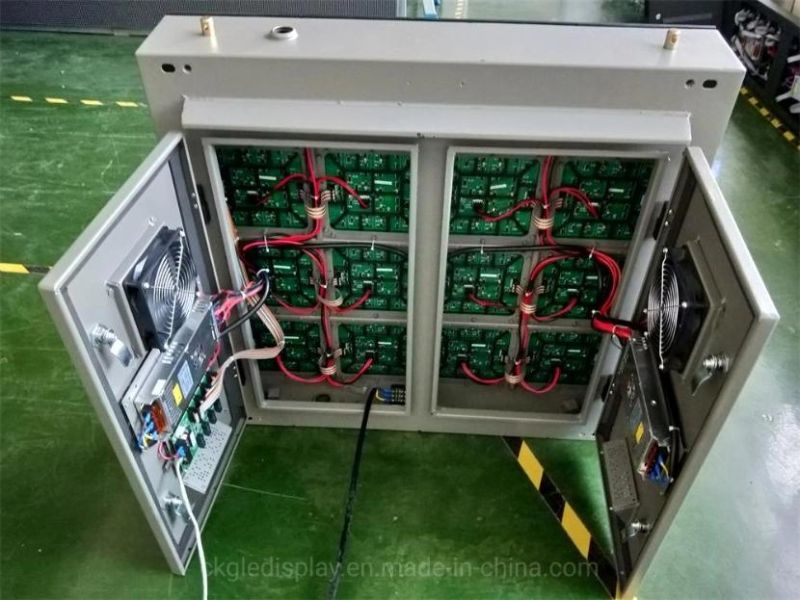

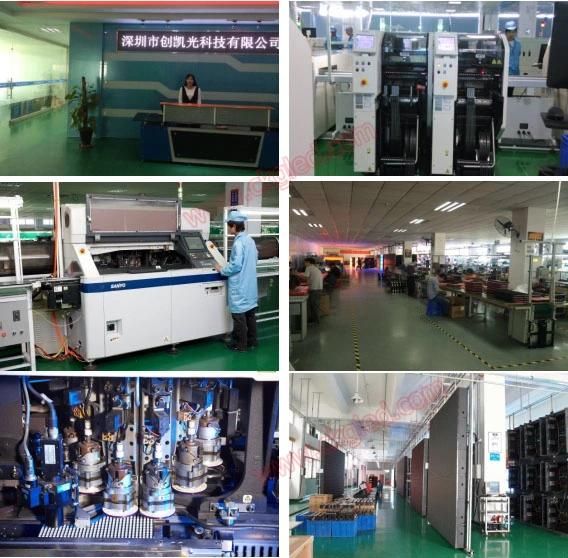

Workshop:

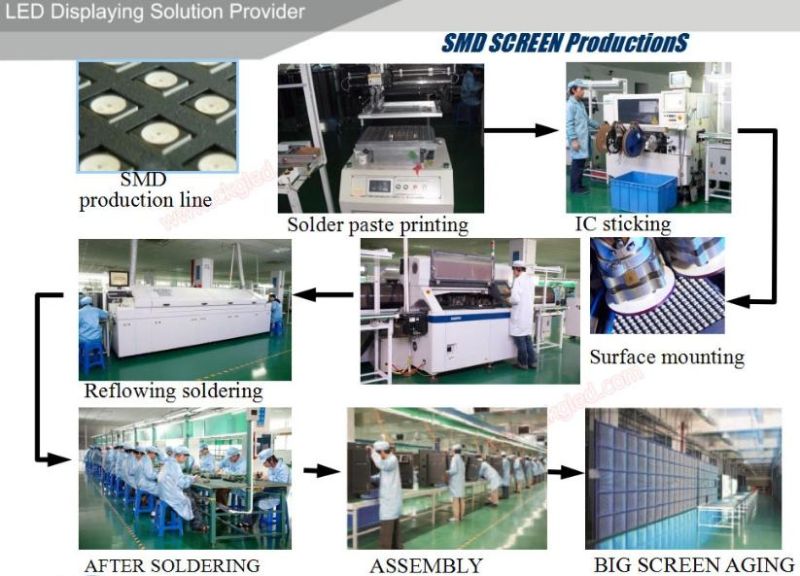

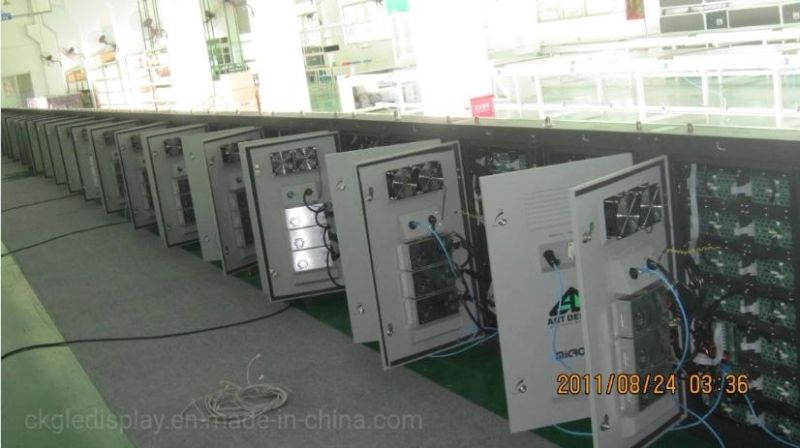

Process:

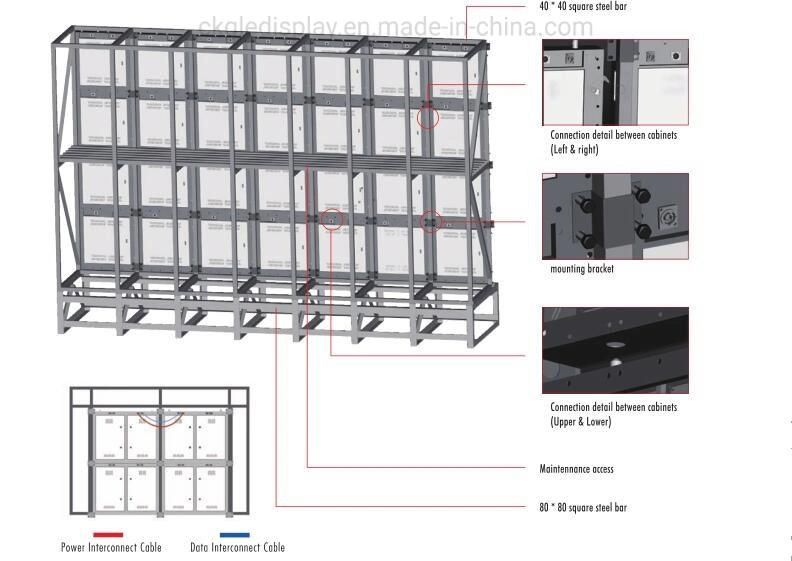

Installation method:

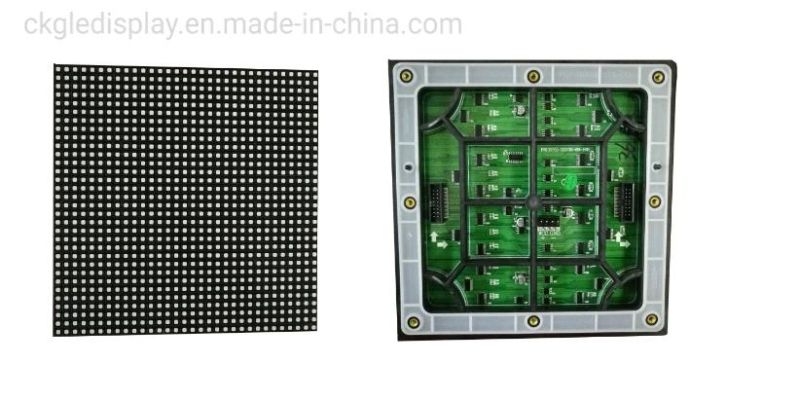

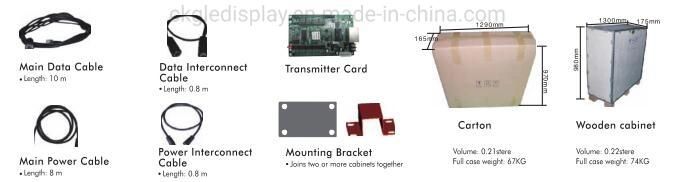

Parts:

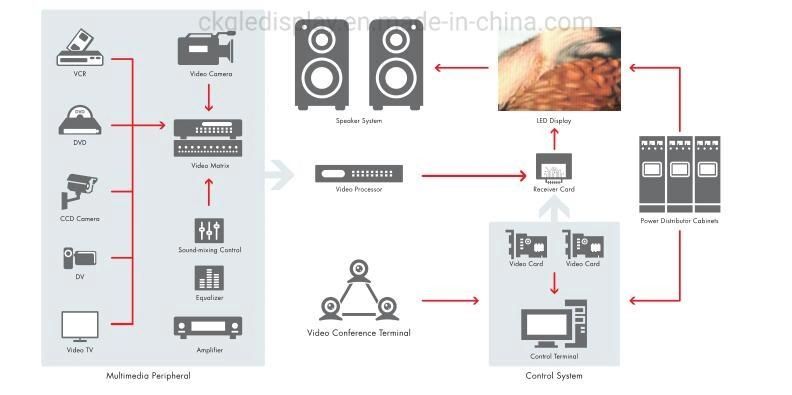

System topology:





Wooden case Package:



Certificates:




Packing>>>
For iron cabinet LED display screen of indoor or outdoor, we usually use wooden case to packing
For aluminum cabinet of LED rental stage display, we usuallu use flight case to packing
One wooden case including 2 cabinets, one flight case including 6 cabinets
Shippment>>>
By air or sea, FOB shenzhen
UPS/DHL/FedEx/Express(door to door)and so on
Delivery time>>>
Within 15 days counting from 30% prepayment arrived at CKGLED account.
Payment term>>>
T/T(30% deposit, the remained 70% payment made before factory shipment )
Quality assurance>>>
We offer 2 years warranty, and our products have passd CE, RoHS, FCC certificate, All products have Age testing, shaking testing, waterproof testing, In generally, Module test is 24h, entire screen test is 72h, A series of testing before delivery can ensure transportation and quality products.



Pre-Sales  Service
--Provide details about the production procedure
--Assign engineers for installation and testing

Sales  Service
--Customized solution designs
--Product rendering and steel structure drawing
--CKGLED's successful project examples and visits to our production and base


After-Sales  Service
--Two-year quality warranty with lifelong maintenance.
--Free guarantee repair (including labor and material):Free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period.We will never exempt our responsibilities on product owned defects.
--Responding time:Upon receiving user's notification, we ensure 24-hour after-sales technical support.
--Spare parts:Necessary spare parts are provided together with products to customers.
--Free technical training:Integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.
--Telephone investigation:Our after-sales team will phone the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.
--Software upgrade:Lifelong maintenance of controlling system, incessant improvement of the system functions and continuous software upgrades.
