• Model NO.：P3.9
• Pixel Density：65536pixels,M2
• Scanning Mode：1,32 Scan
• Display Type：LED Video Display
• Application：Stage Performance
• Certification：CE, RoHS, UL, CCC, ETL
• Brightness：>4000nits
• LED Lamps：Epistar
• Driver IC：Constent Current
• PSU：CE
• Cabinet：Die Casting Aluminium
• Refresh Rate：>1920Hz
• Contrast Rate：3000:1
• System：Nova
• Voltage：AC110-240V
• IP Rate：IP31
• Software Platform：Windows
• Least Viewing Distance：4m
• Weight：27kg,M2
• Signal Inputs：DVI, HDMI, VGA, SDI with Processor
• Installation：Hanging, Base Standing
• Transport Package：Flight Cases
• Specification：500x500mm 500x1000mm
• Trademark：LEDventure
• Origin：China
• Production Capacity：2000sqm,Month

Item

Outdoor  P3.91 Rental Waterproof LED Billboard

Model Number

P2.5 p2.6 p2.9 P3.9 P4.81

Pixel Pitch

2.5mm 2.6mm 3.9mm 4.81mm

Pixel Density

43264 - 160000 pixels/M2

Pixel Configuration

SMD 3 IN 1

LED Type

Epistar

Module Size

250x250mm

Module Resolution

52*52 pixels (P4.81)

Min.Viewing Distance

2.5-5m

Brightness

>4000nits

Viewing Angle(degree)

≤140°

Average Power Consumption

600 W/M2

Scan Mode

1/32 scan(P2.6)

Protection Level

IP31

Cabinet Size

500x500mm, 500x1000mm

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50HZ/60HZ

Refresh Rate

> 1920hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

Part 5: Installation methods, indoor outdoor rental led display installation is easy, usually hanging, base standing or back fixed installation depends on the location situation etc.

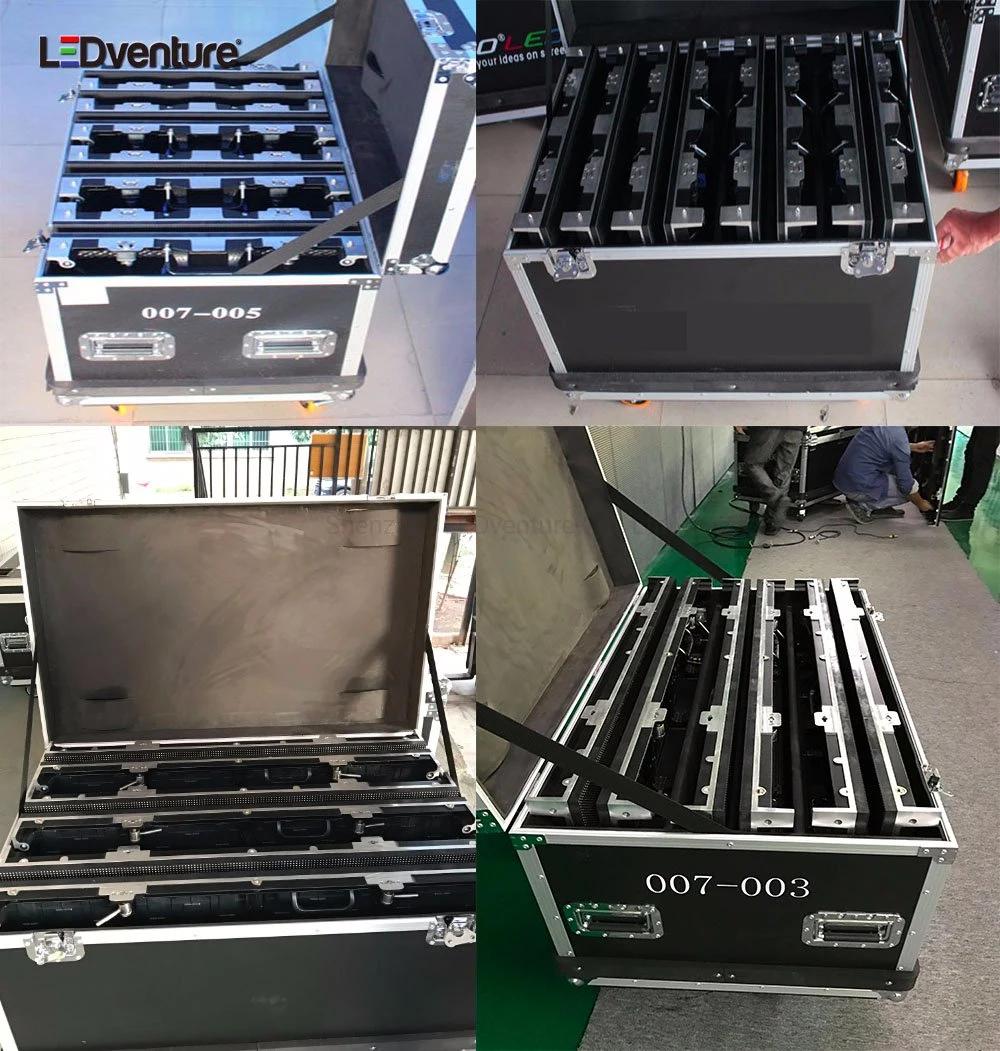

Part 6: Packing information by flight cases, easy to move and carry, and well protection.

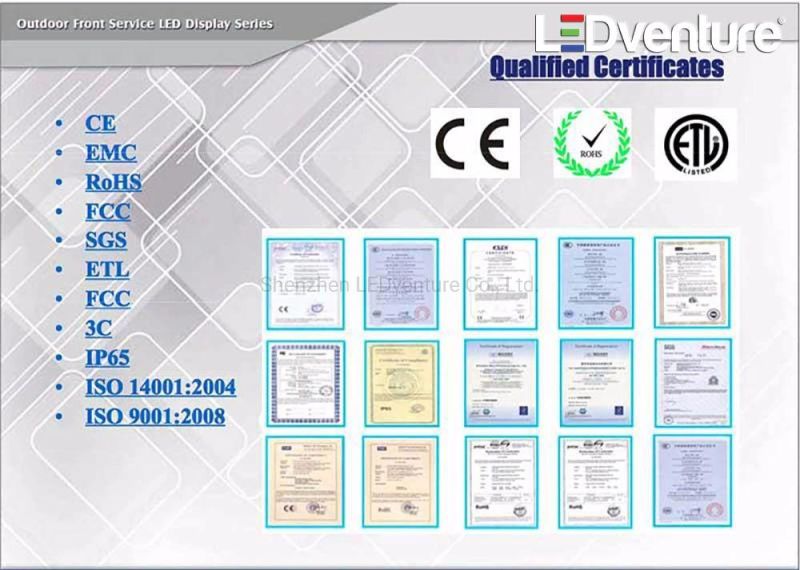

Part 7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

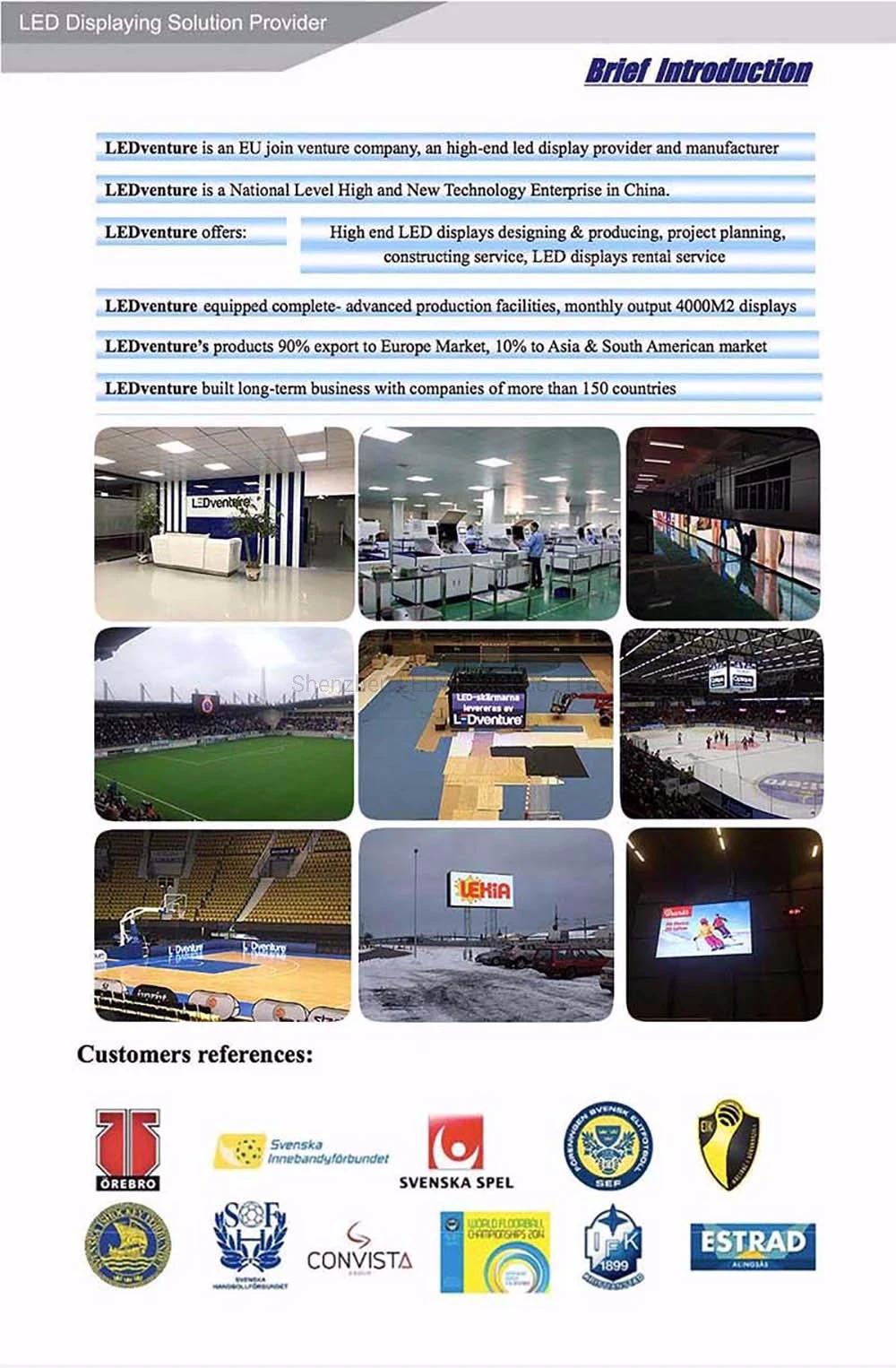

Part 8: About LEDventure.

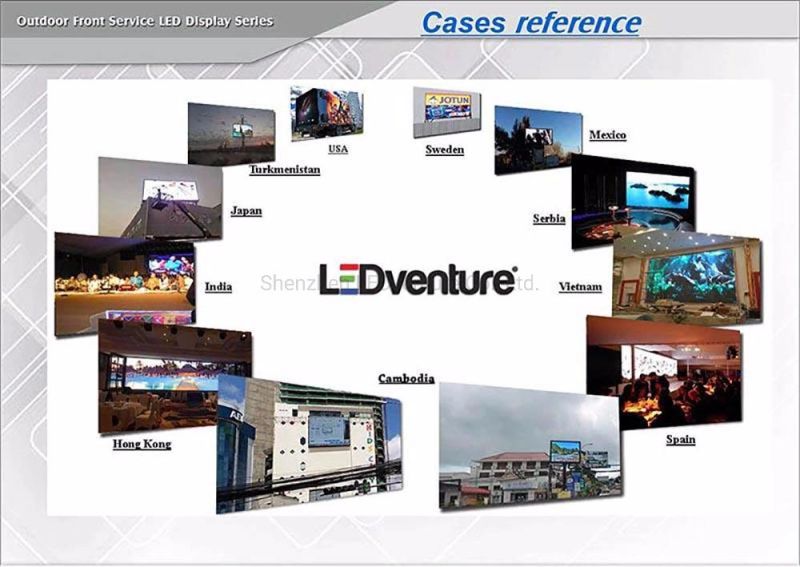

Part 9: LED display screen installation cases.

Most of our led display exported to Europe with high standards, and small percent to USA and Asia.
