Home > Product > Indoor LED Display

Indoor LED Display Front Maintenance Column Screen Rubik′s Cube Screen Abnormal Screen P2.5 P3 P4 P5 P6

PRT Optoelectronic Co., Ltd.

Display Function：Video Display
Pixel Pitch：3mm

Base Info

Model NO.：P3
Pixel Configuration：1R,1G,1B
Pixel Density：111111 Dots
Scanning Mode：1,32scan
System Operating Platform：Windows,Window XP,
Display Type：LED Video Display
Application：Stage Performance, Advertising, Shopping Guide
IP Rating：IP31
Certification：CE, RoHS, CCC
Color of LEDs：SMD2020
Module Size：192 X 192 mm
Module Resolution：64 X 64 Dots
Brightness：>1000CD,Sq.M
Refresh Frequence：3840Hz
Transport Package：Wooden Case or Paper Carton
Specification：CE, RoHs, FCC, CCC
Trademark：PRT
Origin：Shenzhen China
HS Code：8528591090
Production Capacity：2000sqm,Month
Package size per unit product：5.00cm * 5.00cm * 10.00cm
Gross weight per unit product：15.000kg

Description

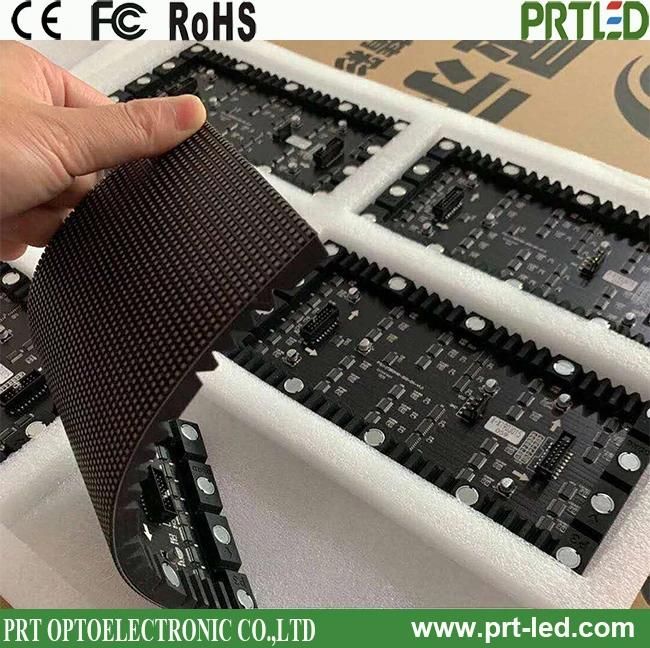

P4 SMD2121 Indoor full Color soft LED ModulePixel pitch4.0 mmPixel Configuration1R1G1BLED componentSMD2121Size of module240mm x 120mm x 1.6mm (thickness)Resolution of module60x30 pixelsBrightness>1000cd/sq.mDensity62500 dots/sq.mBest viewing angle160° /160°Best viewing distance2-20MMaximum power consumption16W/moduleDriving method1/15 scanControl methodSynchronizationGray scale65536Color temperature3200-14000kUniformity99%Working voltageAC220V/110V±10%Working temperature-20ºC~+50ºC±10%Working humidity10% ~ 90%MTBF10,000 hoursFrame frequence50/60HzRefresh frequence>3840HzIP gradeIP31Life Span50,000 hoursData transafer methodRJ45Pratical standardCCC TUV-CE ETL etc.Effectivce Communication
Distance(without relay)Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KMAccepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
More pictures for reference:

Indoor LED Display Front Maintenance Column Screen Rubik′s Cube Screen Abnormal Screen P2.5 P3 P4 P5 P6

Indoor LED Display Front Maintenance Column Screen Rubik′s Cube Screen Abnormal Screen P2.5 P3 P4 P5 P6

Indoor LED Display Front Maintenance Column Screen Rubik′s Cube Screen Abnormal Screen P2.5 P3 P4 P5 P6
