• Model NO.：LW-FO 20
• Pixel Density：2500
• Scanning Mode：Static Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Color Combination：RGB
• Fixed Installation：Sit, Single,Double Ports, Hang,Stand on Ground etc
• Waterproof：IP65 Front
• Compliant Standard：CCC,Ce,RoHS
• LED Package：DIP546
• Brightness：>5500CD,Sqm
• Input Voltage：AC110V,220V
• Output Voltage：DC3.8-5V
• Drive Method：Static Scan
• Metal Plate Cabinet：Iron Steel
• Transport Package：Cartons or Wooden Paskage or Flight Package
• Specification：CE, ROHS, UL, CCC
• Trademark：LED World, OEM, ODM
• Origin：Shenzhen, Guangdong, China
• HS Code：853120000
• Production Capacity：5000sq. M,Month

Item
PH20 Outdoor LED display
Pixel Pitch(mm)20mmPixel density(/m2)2500LED TypeDIP546Viewing angle:H:120°,V:60°Brightness(nits)≥5500Drive MethodStaticColor Depth(nits)16384Refresh Rate(Hz)3000Module Size(mm)320×320×28.5Cabinet Size(mm)1280×960×148.5Cabinet MaterialIron Sheet MetalCabinet weight(kg)68Voltage110/240VAverage.power(W / m2)200Max.power(W / m2)600IP GradeIP65/IP54Operating temperature/humiditytemperature:-20ºC~ 50ºC humidity:10~90%RHStorage temperature/humiditytemperature:-40ºC~ 60ºC humidity:10~90%RHLifetime(h)≥50000Compliant StandardCCC,CE,RoshPacking & delivery: Wooden/cartoon cases
Warranty:2 years

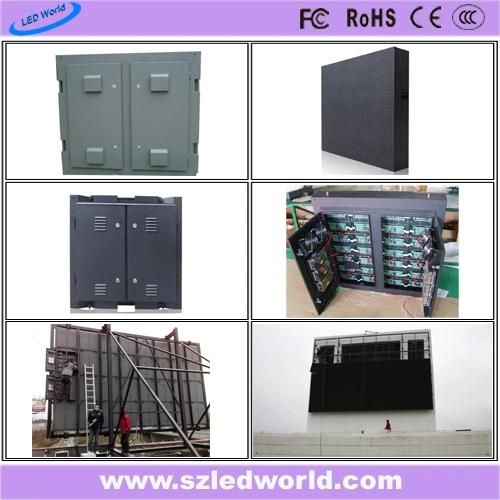

Product detail:

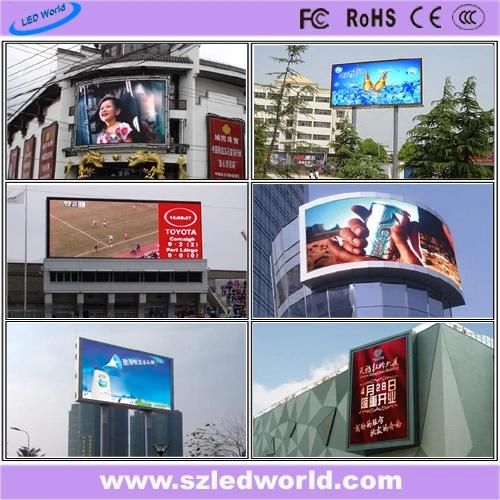

Project:

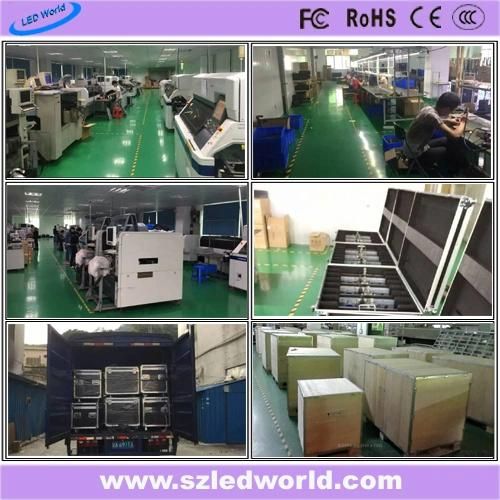

Workshop and package :

 After sales maintenance
 1.Receive the cargo
Make sure the cargo in sealing condition and the cargo storage temperature
between - 30ºC  and 60ºC when you receive the goods from the customs

2. Install and use the product
Please adopt preheating model to light it up and keep 30% brightness for 0.5-2 hours when you use it . Keep it work 8 hours or above continually per day will be
 better. It will be better to use it at least once a week.


3. Cleaning
Ensure to use soft brush to clean the display surface and PROHIBIT any liquid
when doing cleaning.
Other features:
1. CE. RoHS. FCC. C-Tick authorized;
2. ISO9001: 2008 QC system;
3.100.000 hours life span;
4. Water proof. Dust proof;
5. AC 85V to 265V power input;
6. Video. Flash. Animation. Graphic. Text available;
7. PC controlled in real time;
8. Installation structure drawing offered FOC;
9. Easy for installation;
10.2 years warranty offered;
11.1% spare parts offered FOC;
12. Training in our factory offered FOC;
13. On-line remote service is available;
14. EXW. FOB. CIF accepted;
15. Factory visiting and inspecting is welcome;
16. OEM service offered;
17. Monthly production capacity: 3000 Sq. M
18. Models available:
