Glass Wall Screen Video Advertising Module LED Transparent Display Factory
Shenzhen Seny Technology Co., Ltd.- Tube Chip Color：Full Color
- Display Function：Video Display
- Pixel Pitch：7.8125 X 7.8125
- Pixel Configuration：1R,1G,1B
- Pixel Density：16384 Dots,M2
- Scanning Mode：1,8 Scan
Base Info
- Model NO.：SY7.8-7.8
- System Operating Platform：Win98,2000,Nt,XP
- Display Type：LED Video Display
- Application：Advertising, Shopping Guide
- IP Rating：IP30
- Certification：CE, RoHS, FCC
- Transparency：75%
- Panel Size：1000mm*1000mm
- Transport Package：Wooden Box or Flight Case
- Specification：CE, RoHS, FCC
- Trademark：SENY
- Origin：Shenzhen, Guangdong, China
- HS Code：8528591090
- Production Capacity：100000
Description
Technical ParametersModel No. SY3.91-5 SY3.91-7.8 SY7.8-7.8 SY7.8-15.6 SY10.4-10.4 SY15.6-15.6 Pixel Pitch(mm) 3.91x 5.2 3.91 x 7.81 7.8125 x 7.8125 7.8125 x 15.625 10.4x 10.4 15.64 x 15.64 LED Type 2121 2121 2121 2121 2121 3535 Pixel Configuration 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B Brightness(CD/sqm) 1200 1200 1200 1200 1000 1600 Driving Method(Scan) 16 16 8 8 3 4 Transparent Rate 60% 65% 68% 68% 75% 75% Panel Size(mm) 1000*1000 1000*1000 1000*1000 1000*1000 1000*1000 1000*1000 Resolution Per Panel( dot ) 51200 32768 16384 8192 9216 4096 Pixel Density(dot/sqm) 51200 32768 16384 8192 9216 4096 Max. Power(w/sqm) 500 450 450 450 450 450 Ave. Power(w/sqm) 200 200 200 200 200 200 IP Protection IP30 IP30 IP30 IP30 IP30 IP30 Refresh Rate(HZ) 1920 1920 1920 1920 1920 1920 Weight(KG/sqm) 15 15 14 14 13 13 Thickness(mm) 80 80 80 80 80 80 Working Temperature(ºC) -20-40 -20-40 -20-40 -20-40 -20-40 -20-40
Pre-sales support:
1. We offered technical advice to you before buying our products.
2. Help you to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for our your specific usage.
After- sales service:
1. We promise you more than one year warranty service!
2.We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for you.
3. We promise a life time follow-up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
4. We offered training to our customer who includes operating and maintenance of our products.

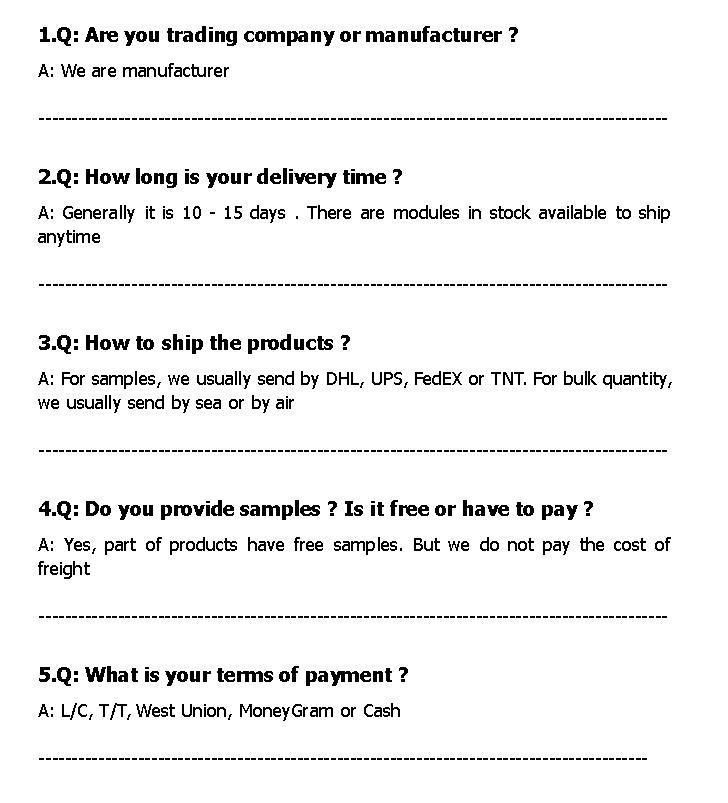

FAQ:
