• Model NO.：BOF
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display
• Average Power Consumption：360W,Square Meter
• Pixel Density：22,500pixels,Square Meter
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC, ETL
• Panel Material：Steel,Aluminum
• Brightness：>6,500nits
• Processing：16bit
• Expected Lifetime：100,000hrs
• Servicing：Front , Rear
• Warranty：2 Years
• Transport Package：Wooden Case or Flight Case
• Specification：Steel,Aluminum
• Trademark：Bako Vision
• Origin：China
• HS Code：8528591090
• Production Capacity：6000 Square Meter,Month
• Package size per unit product：960.00cm * 960.00cm * 20.00cm
• Gross weight per unit product：37.000kg

Basic Info.

Model NO. BOF Pixel Configuration 1R, 1G, 1B Display Function Video Display Average Power Consumption 360W/Square Meter Pixel Density 22,500pixels/Square Meter Display Type LED Video Display Application Advertising Certification CE, RoHS, CCC, ETL Panel Material Steel/Aluminum Brightness >6,500nits Processing 16bit Expected Lifetime 100,000hrs Servicing Front / Rear Warranty 2 Years Transport Package Wooden Case or Flight Case Specification Steel/Aluminum Trademark Bako Vision Origin China HS Code 8528591090 Production Capacity 6000 Square Meter/Month

Packaging & Delivery

Package size per unit product 960.00cm * 960.00cm * 20.00cm Gross weight per unit product 37.000kg

Product Description

P8mm Waterproof High Brightness Front Service Outdoor LED Display for Advertising Billboard



Application

Stock exchange centers, customs, stadiums, studio, shopping malls, railways, airports, harbors,high way, commercial advertising, Stadium perimeter, mobile media, bus station,
schools,telecommunications,entertainment events, business establishments, such as banks, etc;





Description

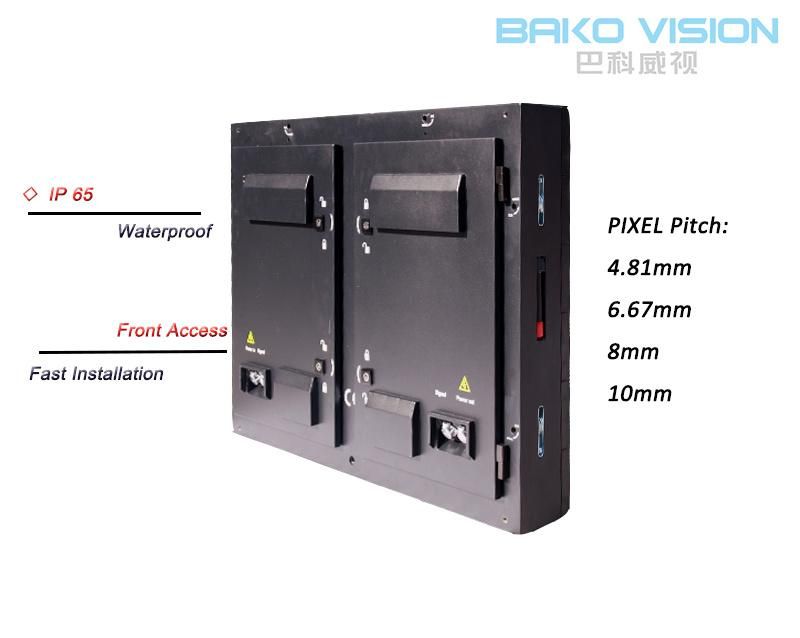

Steel and aluminum cabinet are options.Accept size customize,can do concave,convex shapes.

Front and rear access. Another front open panel cabinet for choose.

Inside of module have buckle design for adjusting gaps between module and cabinet,to ensure the connection become tighter and seamless.

Lighter sensor be added on the led display to adjust the bright according to enviroment. Extremly guaranteed the longer lifespan and better visual effective for display.

Power cable and signal cable can just insert from the hole of beside,saved cost for customers.

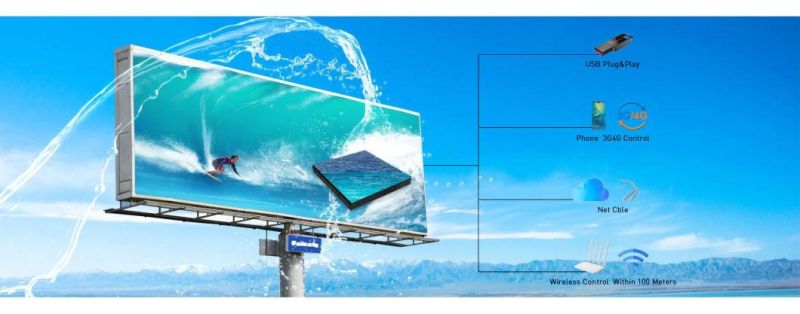

About control system,we classified synchronous control and asynchronous control.The asynchronous control can make use of USB,RJ45,WIFI and 4G to transmitted.






Specification


	BOF-4	BOF-6	BOF-8	BOF-10
Physical Pitch	4.81mm	6.67mm	8mm	10mm
Pixel Configutation	SMD2727	SMD2727	SMD3535	SMD3535
Pixel Density	43,264 pixels/sqm	22,500 pixels/sqm	15,625 pixels/sqm	10,000 pixels/sqm
Module Dimention      (W*H)(mm)	250*250	320*320	256*256	320*320
Panel Dimention(mm)	1000*1000*150	1280*960*150	1280*768*150	1280*960*150
Physical Resolution of Module(W*H)	52*52	48*48	32*32	32*32
Physical Resolution of Panel(W*H)	208*208	192*144	160*96	128*96
Panel Material	Steel/Aluminum	Steel/Aluminum	Steel/Aluminum	Steel/Aluminum
Weight(kg/sqm)	65/45	65/45	65/45	65/45
Processing	16 bit	16 bit	16 bit	16 bit
Contrast Ratio	2,000:1	2,000:1	2,000:1	2,000:1
Average Power Consumption	360W/panel	360W/panel	360W/panel	360W/panel
Max Power Consumption	900W/panel	900W/panel	900W/panel	900W/panel
Brightness	>6,500nits	>6,500nits	>6,500nits	>6,500nits
Refresh Rate	>1,920Hz	>1,920Hz	>1,920Hz	>1,920Hz
Vertical Viewing Angle	160°	160°	160°	160°
Horizontal Viewing Angle	140°	140°	140°	140°
Servicing	Front/Rear	Front/Rear	Front/Rear	Front/Rear
IP Rating(Front/Rear)	IP65/IP54	IP65/IP54	IP65/IP54	IP65/IP54

√  SMD 3 IN 1 led encapsulation technology ensure wide view angle and good uniformity.

√  Slim and small cabinet iron and aluminium.

√  Flight or plywooden case package,convenient to transport and collect,easy to move and good protection.

√  Fixed installation and Rental design, easy to install and dismantle,save much time for installation and maintainance.

√  Fixed installation, Seamless spliced,good outlooking

√  Good heat dissipation

√  Widely used in public advertising, theatre, live show, live meeting, banquet, stage background etc.


Asychronous Control Ways



Case


 Technical support

1. Installation and Maintain Manual
2. LED display system connection diagram
3. Data wire connection diagram
4. Power supply wire connection diagram
5. multi-language software Guidance

Our Services
 1. Provides all LED display relative solution, like installation drawing etc.
2. Have free training about how to use and maintain LED display with our professional engineer.
3. Provide free spare parts for future urgent need.
4. Technical Support: We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company such as accommodation & round-trip ticket.
5. Professional engineer in service after sales, 18/7 for any inquiry.
6. All other service request will be considered in BST , please contact us anytime.



Packaging and Shipping


Our Company

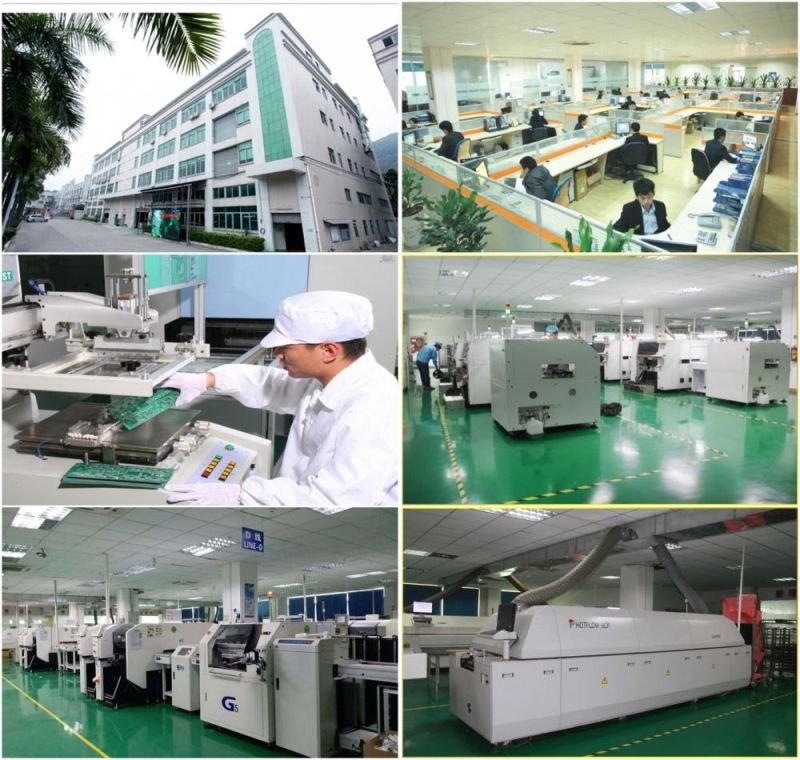

 Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding enterprises (Stock Code: 871745), focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.

BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.






FAQ

1)Q: How to choose a proper led screen for your need?
A: You just need to consider three simple questions when you choose a led screen.
1.Will you use it indoor or outdoor?
2.Is it for rental usage(need to be moved from one place to another place very often) or for fixed installation (to be installed in one place forever)?
3.What is the approximate size of the whole led screen you would like to purchase?

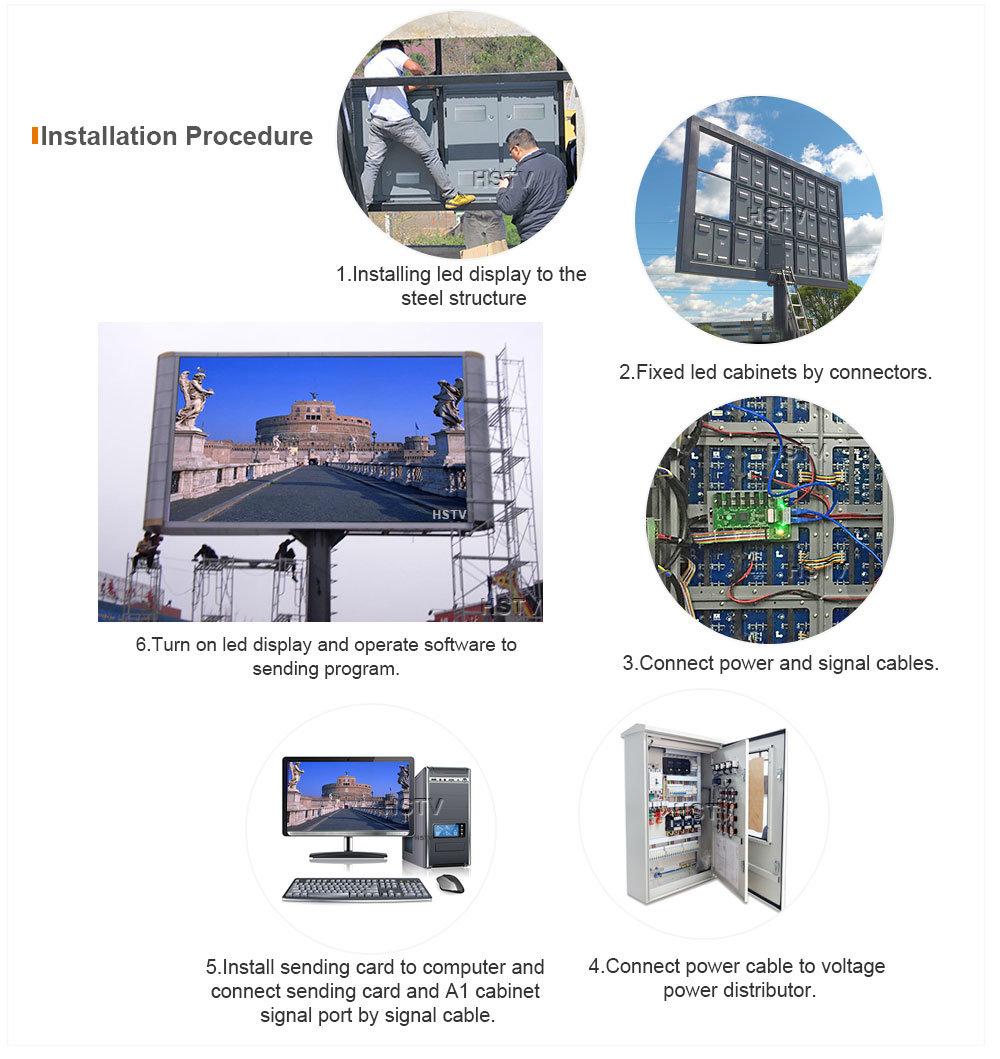

2)Q: How to install it after I received it?
A: We will offer you the drawing to guide you for installation, we could also offer drawing, software set up drawing or photo or arrange our engineer to help if needed.

3)Q: How could I buy the products I need if there is no price in the website and could I get some samples first?
A: You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.We welcome sample order to test and check quantity.

4)Q: What is a custom LED display?
A: Custom LED displays can be designed to meet the needs of the user, taking into account all of the above for easy maintenance. Of course, maintenance can help to increase the service life of any electronic device, and measures are taken during the production process, so that maintenance costs are greatly reduced.

A custom LED display, as the name suggests, can control anything with any message you can think of. They are used in almost all industries, such as factories, banks, airports, universities, libraries, etc.

Custom LED displays are mounted on the wall or suspended from any ceiling for broadcasting information viewed from any distance. In addition, the brightness of these custom LED displays can be displayed very clearly at any distance.

5)Q: I would like to ask you if it's possible to have my logo on the product.
A: We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extra-service,so a little bit extra service fee is needed.
