Indoor Outdoor Rental LED Screen, Advertising LED Display (P3.91, P5.95)

PRT Optoelectronic Co., Ltd.
  • Tube Chip Color：Full Color
  • IP Rating：IP65
  • Pixel Pitch：3.91mm
  • Pixel Configuration：1R, 1G, 1B
  • Display Function：Video Display
  • Average Power Consumption：300W , m²

Base Info

  • Model NO.：P3.91
  • Pixel Density：65536dots,Sq.M
  • Scanning Mode：1,16 Scan
  • Display Type：LED Video Display
  • Application：Advertising
  • Certification：CE, RoHS, CCC
  • LED Encapsulation：SMD1921
  • Module Size：250X250mm
  • Cabinet Material：Die-Casting Aluminum
  • Control Method：Synchronous
  • Waterproof IP：IP65
  • Transport Package：Flight Case or as Required
  • Specification：CE, FCC. ROHS, 3C
  • Trademark：PRT
  • Origin：Shenzhen China
  • HS Code：8528591090
  • Production Capacity：3000sq. M,Month

Description

P3.91  full Color LED Screen/Curtain SpecificationPixel pitch3.91mmPixel Configuration1R1G1BLED componentSMD1921Size of module250mm x 250mmResolution of module64 x 64dotsSize of cabinet500mm x 1000mm x 75mm or 500 mm x 500mm x 75mmResolution of cabinet128 x 256dots or 128 x 128 dotsMaterial of CabinetDie-casting AluminumWeight of Cabinet14.5KGS or 8.5kgsBrightness>6000cd/sq.mDensity65536 dots/sq.mBest viewing angle140° /140°Pixel Configuration1R1G1BBest viewing distance3-30MMaximum power consumption800W/sq.mAverage power consumption250W/sq.mDriving method1/16 scanControl methodSynchronizationGray scale65536Colors256*256*256Color temperature3200-9300kUniformity97%Working voltageAC220V/110V±10%Working temperature-20ºC~+50ºC±10%Working humidity10% ~ 90%MTBF10,000 hoursFrame frequence50/60HzRefresh frequence>1920HzIP gradeIP65Life Span100,000 hoursData transafer methodRJ45Pratical standardCCC  TUV-CE  ETL etc.Effectivce Communication
Distance(without relay)Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KMAccepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Our service:

  1. Guarantee
    (1) We guarantee all our displays, modules, parts for two full years. During this time, we will replace or remand our goods for free if there is something wrong with them.
    (2) After two years we will provide maintenance for a lifetime and charge for the raw materials only.

    2. Technology Training
    (1) We provide the technology training for free, which contains the operation training and maintenance training in our factory,or through video,internet
    (2) We will send our engineers to your country by negotiation if you need

    3. Maintenance and Consultation
    (1) We provide full maintenance for a lifetime and charge for the raw materials only.
    (2) We also provide lifetime consultation by E-mail, call, skype,teamviewer or other ways for free.

    4. Documents and Certification
    (1) We provide the operation manual, software, test report and so on.

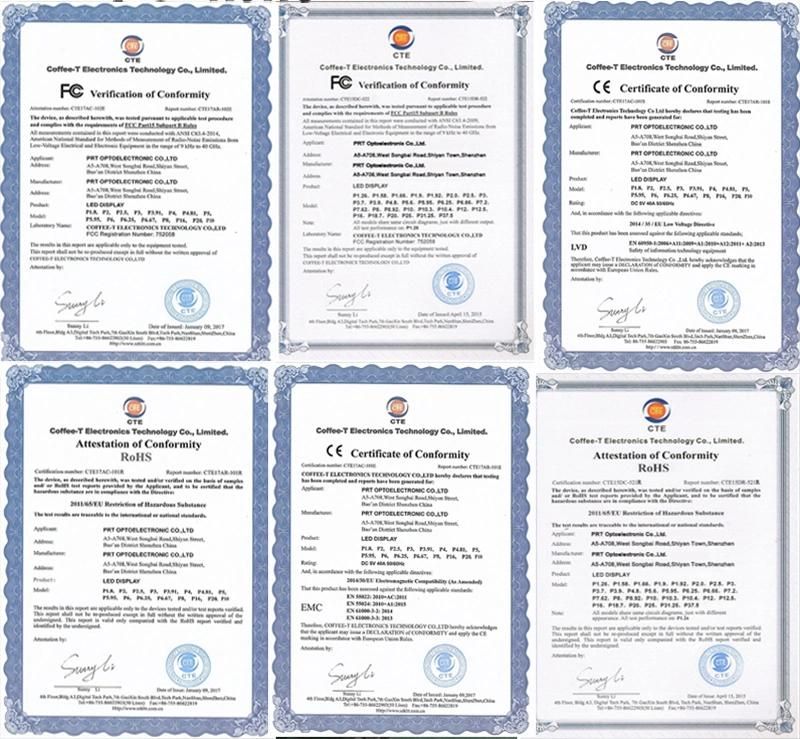

    (2) We can also provide all kinds of certification such as CE,FCC,ROHS,UL and so on.

    5. CAD Drawing and Fixing
    (1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
    (2) We will send our engineers to your place if we are expected after our negotiation.

    6. Additional service
    (1) We provide you the forwarding information, and some other information such as flight box, structure information for your reference for free             (2)Arrange the shipment,ensure you can get the goods in time and safety
 Our warranty:
         1. Normally, PRT provide two years warranty,during this time,we will provide free parts for replacement of any problem belonging to us during this period.
  After 2 years, we provide spare parts for replacement based on certain charge.
        2. our products are produced according to international standard CE,ROHS,FCC,and with a strict control system,during production,we will test and check at each process,and confirm everything is ok before delivery.
