LED Display

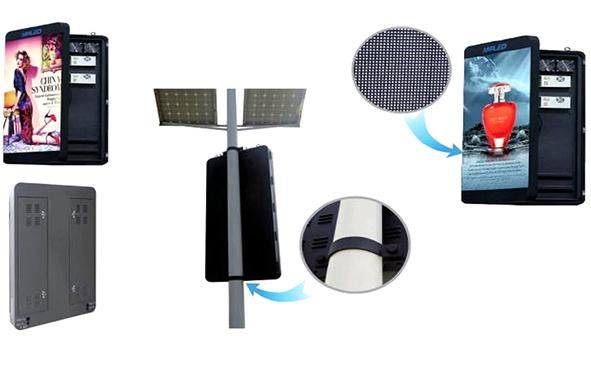

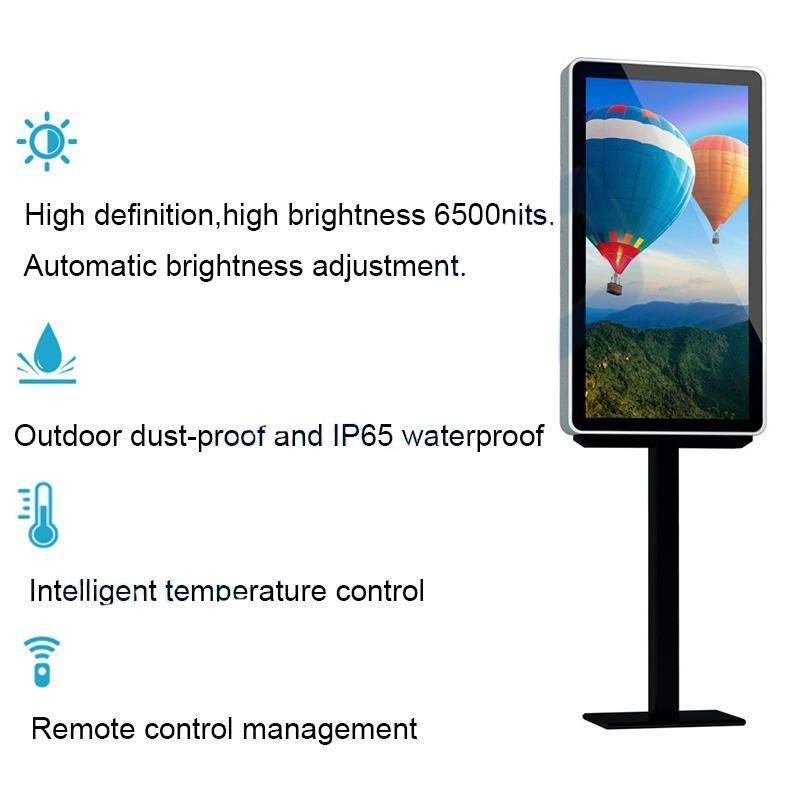

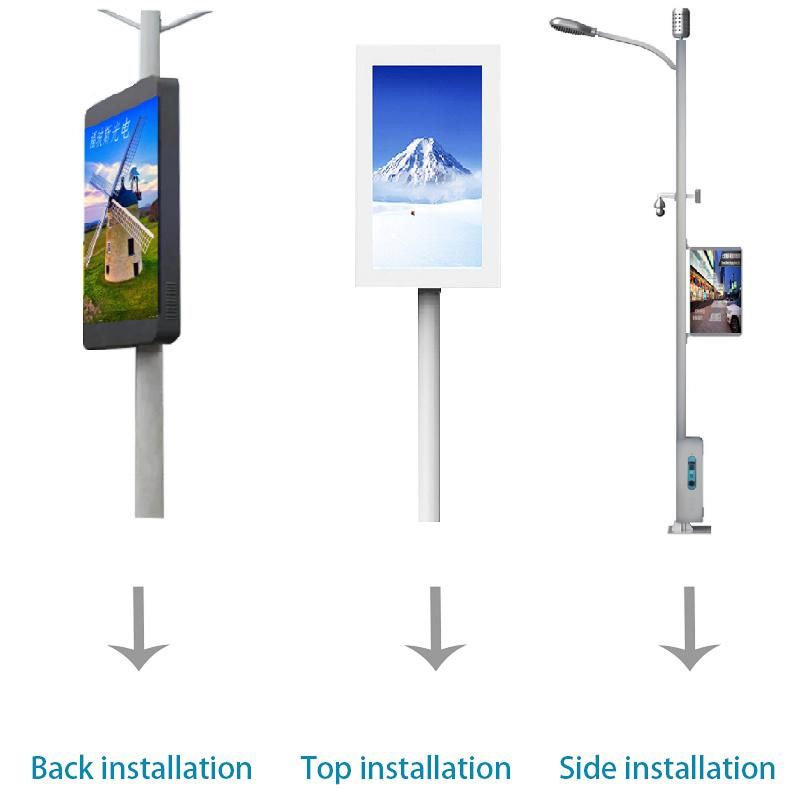

P6 Street Mounted LED Display Screen Pole Display with 4G Integrated Control

Envision Display Technology Co., Ltd.
  • Tube Chip Color:Full Color
  • IP Rating:IP65
  • Pixel Pitch:2.5,3,4,5,6
  • Pixel Configuration:1R, 1G, 1B
  • Display Function:Video Display, Image & Text Display, Text Display, Market Display
  • Average Power Consumption:300W , m²

Base Info

  • Pixel Density:10000 dot , m²
  • Scanning Mode:1,4 Scan
  • Display Type:LED Video Display
  • Application:Advertising
  • Certification:CE, RoHS, CCC
  • Warranty:3 Years
  • Life Time:More 100,000(80%)
  • Refresh Rate:1920Hz or 3840Hz
  • Brightness:6000CD,M2
  • Humidity:10%-95%
  • LED Lamp:Nationstar or Kinglight
  • Control Card:Sysolution or Nova
  • Operating Temperature:-30~60 Celsius Degree
  • Cabinet Material:Die-Cast Aluminum

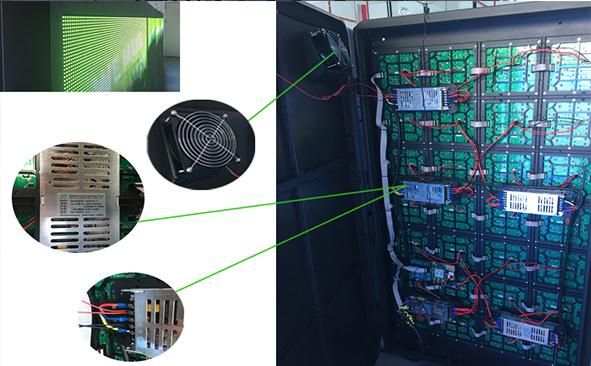

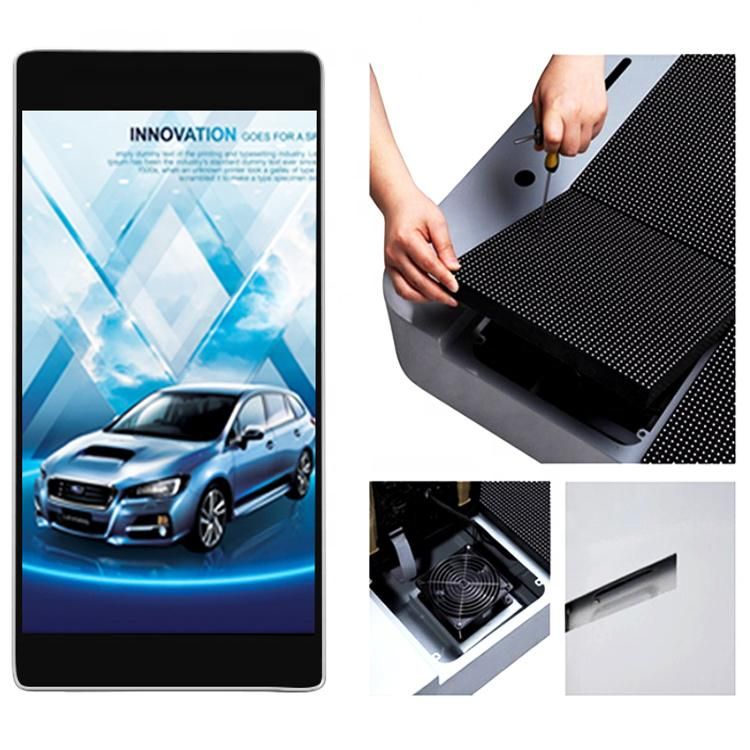

  • Maintenance:Front and Rear
  • Voltage:AC110-240V
  • Transport Package:Wooden Case, Flight Case and Carton
  • Specification:customized size
  • Trademark:Envision
  • Origin:China
  • HS Code:8528591090
  • Production Capacity:50000,Year

Description

Standard Caninet Size

Custom

Cabinet Weight

35KGS

Brightness/Adjustment

6500cd/m², Level 16- Automatic / Level 100-Manual operation

View Angle

≥120°(Vertical),≥120°(Horizontal)

Best View Distance

6-60m

Grey Scale

Within 65536 Step

Frame Frequency

≥60Hz

Refresh Rate

≥1920Hz

Signal Input Source

Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI

Scan Mode

1/8Scan

Display Color Qty

16777216

Continuous Working Time

>24(Hrs)

Screen Lifespan

>100,000(Hrs)

MTBF

>5000(Hrs)

Max. power consumption

950W/sqm

Ave. power consumption

320W/sqm

Out of control pixel rate

≥3/10,000(discrete distribution)

Control Distance

100M(Ethernet) 500M(Multi-fiber) 10KM(Sigle-fiber)

Flatness

Screen Surface≤0.5mm,Pixel Pitch≤0.3mm

Operation Temperature

-10ºC~+50ºC

Working Humidity

10%~98%RH

Storage Temperature

-40ºC~+85ºC

Software Connection

Standard Computer Connection,Compatiable With Windows,Unix,Novell

Working Valtage

200~240 V

Temperature Rise

Metal≤40K,Insulation≤65K , After Heat Balance

IP Grade

IP65
