• Model NO.：LW-FO 25
• Pixel Density：1600 W,M2
• Scanning Mode：Static Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC
• Brightness(Nits)：up 4500
• LED Type：DIP346
• Pixel Density(/M2)：1600
• Color Depth(Nits)：16384
• Module Size(mm)：200X200X28.5
• Cabinet Size(mm)：1200X1000X154
• Cabinet Weight(Kg)：70kg
• IP Grade：IP65,IP54
• Compliant Standard：Ce RoHS CCC FCC
• Transport Package：Cartons or Wooden Paskage or Flight Package
• Specification：CE, ROHS, CCC
• Trademark：LED World, OEM, ODM
• Origin：Shenzhen, Guangdong, China
• HS Code：853120000
• Production Capacity：2500sq. M,Month

Item
PH25 Outdoor LED display
Pixel Pitch(mm)25mmPixel density(/m2)1600LED TypeDIP346Viewing angle:H:120°,V:60°Brightness(nits)≥4500Drive MethodStaticColor Depth(nits)16384Refresh Rate(Hz)3000Module Size(mm)200×200×28.5Cabinet Size(mm)1200×1000×154Cabinet MaterialIron Sheet MetalCabinet weight(kg)70Voltage110/240VAverage.power(W / m2)200Max.power(W / m2)600IP GradeIP65/IP54Operating temperature/humiditytemperature:-20ºC~ 50ºC humidity:10~90%RHStorage temperature/humiditytemperature:-40ºC~ 60ºC humidity:10~90%RHLifetime(h)≥50000Compliant StandardCCC,CE,RoHS,FCC
Packing & delivery: Wooden/cartoon cases
Warranty:2 years

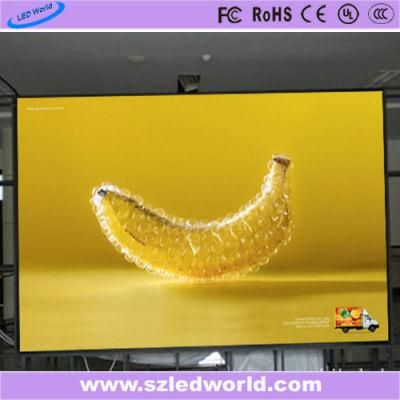

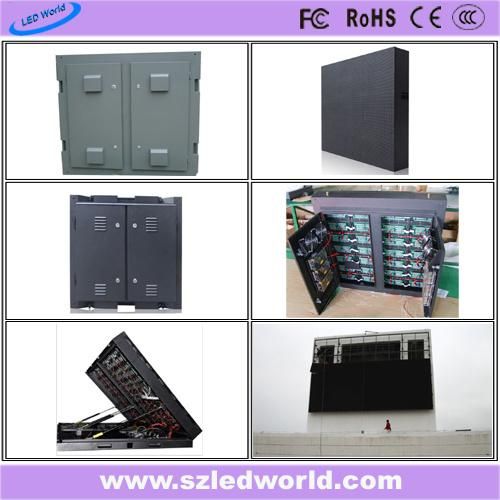

product detail:

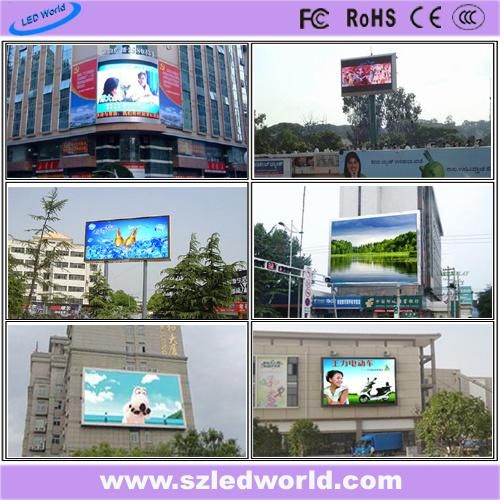

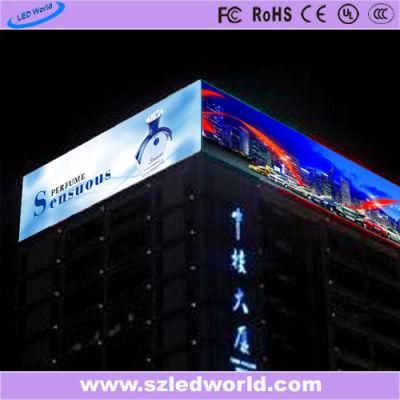

project case:

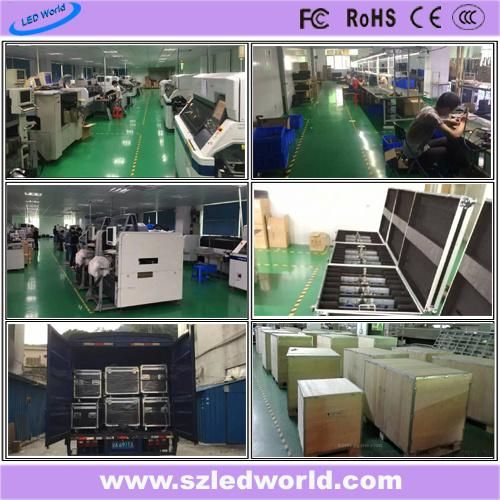

workshop and package:
