• Model NO.：DD-65EE25N
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS
• Size：65inch
• Resolution：1920X1080
• Color：16.7m
• Viewing Angle：178,178
• Brightness：2500nit
• Response Time：8ms
• Transport Package：Wooden Box
• Specification：CE, ROHS
• Trademark：DEDI
• Origin：Shenzhen, China
• Production Capacity：5000units,Year

 Main specifications

   Panel size

65 inch

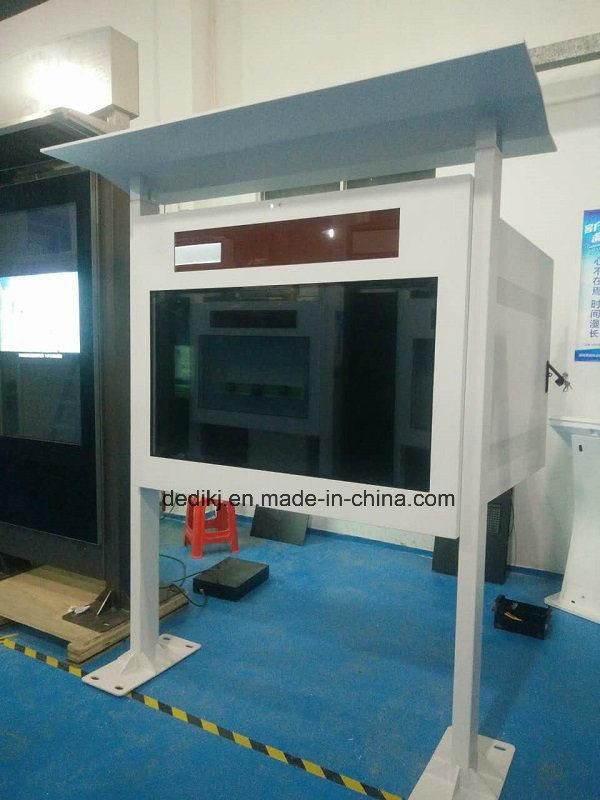

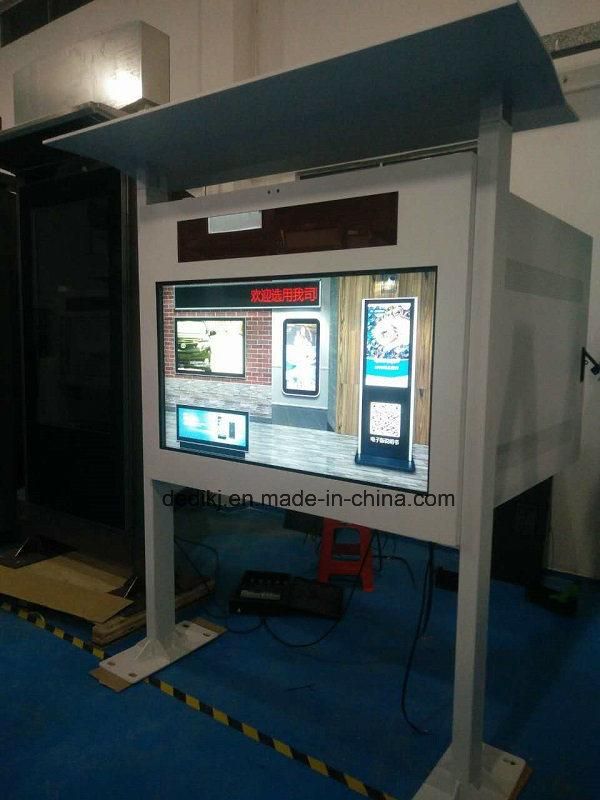

Housing

Vertical design

Body material

Zinc Coated Steel

Dimension

1640x1017x330mm

Maximum Resolution

3840*2160

Resolution of PCB

1080P

Display color

16.7M

Brightness

2500cd/m2

Contrast

3000:1

Visual Angle

178/178

Response time

5ms

Detailed Functions

Panel Details

Panel Brand

With Samsung/LG

Panel Size

65 "( 42-82 Inch Optional )

OS Details

Product Color

White,black, Silver color is customized.

CPU

Android:  RK3288,cortex-A17,Quard core (Quad-core version optional.),

PC all in one : CPU I3 I5 I7

ROM ( internal memory )

Android: 8GB

PC all in one : 500G HHD or 128G SSD

RAM

Android: 2G

PC all in one: 4/8Gb DDR3 controller

OS

Android 4.4/5.1/6.1

I3 I5 I7

Decoding Formats

Video Format

MPG,MPG-1,MPG-2,MPG-4,AVI,MP4,MOV,WMV,RM,RMVB,etc.

FHD 1080P Video

YES

Picture Format

JPG, BMP,PNG, GIF etc.

Text

TXT

Audio Format

support MP3,WMV,WAV APE, FLAC,ACC ,OGG,M4A,3GPP

Interfaces

VGA Output

1(optional)

HDMI Output

1(optional)

AV-in

1(optional)

SD/ TF card slot

1(optional)

USB

YES ( two )

L/R audio input

1 (RCA*2)

L/R audio output

1 (RCA*2)

Speaker

Speaker*2×8W(9Ω)

3G / WIFI Module

Included(Android version )

RJ45

Included(Android version )

Additional Functions

Split Screens,Time and Date,Cloud Streaming,Wifi,LAN ,Update remotely,Weather Function,

Live Broadcast,Controlling Software,etc.

Optional Functions: 3G(if it doesn't has!)

Accessory

Power supply cable, user manual, keys,adapter

Temperature Details:The machine operating temperature: -20ºC  ~ 50ºC ,Storage Temperature: -20ºC  ~ 60ºC
