• Model NO.：P5 flexible led display screen
• System Operating Platform：WIN2000
• Display Type：LED Video Display
• Application：Stage Performance, Advertising
• IP Rating：31
• Certification：CE, RoHS, CCC
• Product Name：LED Panel Display

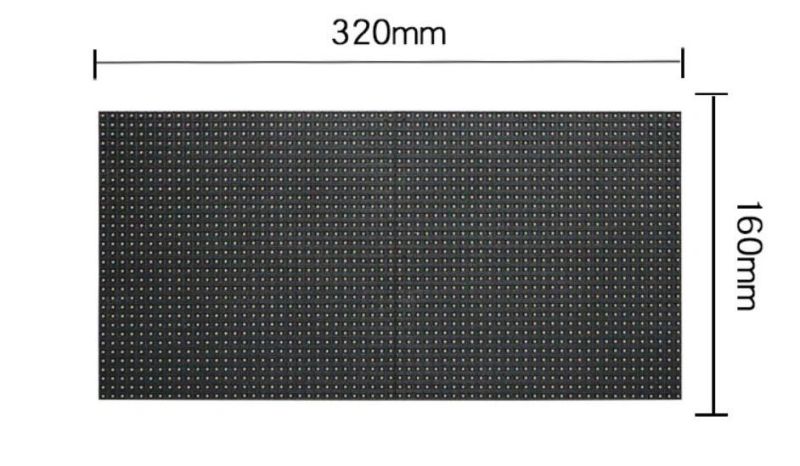

• Panel Size：320mm*160mm
• Cabinet Size：640mm*640mm
• Brightness：1600CD
• LED：Epistar
• Drive Type：1,16 Scan
• Hub Connection：75
• LED Specification：SMD2121
• Warranty：Two Years
• IP：31
• Encapsulation：Kinglight,Nationstar
• Drive IC：Mbi5124,2037
• Control Card：Nova, Linsn, HD
• Working Temperature：-25-+55
• Life Span：100000 Hours
• Transport Package：Wooden Case ,Flight Case
• Specification：CE, SGS, CCC, FCC
• Trademark：JIACAI
• Origin：Quanzhou, Fujian, China
• HS Code：8528591090
• Production Capacity：5000sqm,Month

Basic Info.

Model NO. P5 flexible led display screen System Operating Platform WIN2000 Display Type LED Video Display Application Stage Performance, Advertising IP Rating 31 Certification CE, RoHS, CCC Product Name LED Panel Display Panel Size 320mm*160mm Cabinet Size 640mm*640mm Brightness 1600CD LED Epistar Drive Type 1/16 Scan Hub Connection 75 LED Specification SMD2121 Warranty Two Years IP 31 Encapsulation Kinglight/Nationstar Drive IC Mbi5124/2037 Control Card Nova, Linsn, HD Working Temperature -25-+55 Life Span 100000 Hours Transport Package Wooden Case /Flight Case Specification CE, SGS, CCC, FCC Trademark JIACAI Origin Quanzhou, Fujian, China HS Code 8528591090 Production Capacity 5000sqm/Month

Product Description

5MM Stage LED Screen detail:



















wholesale 5mm indoor advertising flexible led display screen price

China LED Display Manufacturers Wholesale High quality, high brightness rental LED screen,Die-casting Aluminum Cabinet,indoor LED Display for fixed installation.

Flexible led display features:

1.Super light and thin die-casting aluminum cabinet;

2.High refresh rate

3.Noiseless design;

4.Fine and smooth picture;


5.Seamless connection between cabinet;

6,High brightness

7.Fast installation and dismantlement.

8,Application: stage rental events, exhibition, wedding, advertising, meeting room,ect.


LED Panel Display Specification



Item
Model NO.	P5
Pixel Pitch	5mm
Pixel Configuration	1R1G1B
LED Type	SMD2121
Density	40000 dots/m2
Brightness	1600CD
Color Temperature	6500-9500K
Scan Method	1/16

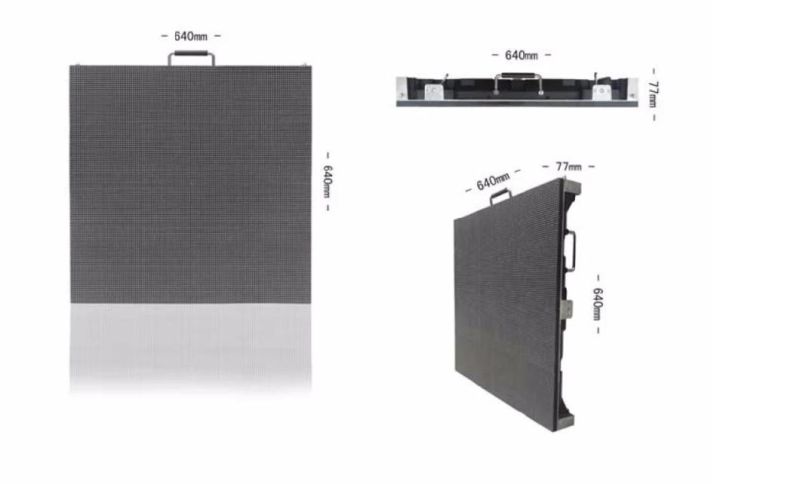

Cabinet Size	640x640mm
Module Resolution	64x32
Cabinet Resolution	128x128
Cabinet Weight	7.2Kg/cabinet
Max. Power Consumption	700W/m2
Ave. Power Consumption	400W/m2
Best View Angle	H:140 Degrees, V:120 degrees
Refresh Rate	1920-3840Hz
Gray Scale	16bit
Best View Distance	>5m
Protection Level	IP31
Cabinet Material	Die-casting Aluminum
Operation Voltage	110-220V AC  50-60Hz
Working Temperature	-20-+50 degrees celsius
Working Humidity	10%-90%
Signal Input Source	VGA, DVI, HDMI, SDI, HD-SDI
Control Distance	Ethernet cable:100m, Multi-mode optical fiber:500m,singel-mode optical fiber:20Km

Flexible led display screen application:









Our service
 1. Your inquiry related to our products or price will be replied in 24hrs2. OEM&ODM, any your customized lightings we can help you to design and put into product3. Distributorship are offered for your unique design and some our current models4. Protection of your sales area, ideas of design and all your private information5. Top quality+Reasonable price+Responsible After Service=Successful & Win6. Jiacai can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
 Trade Terms
 1. Package: Anti-shaking wooden package, Air flight case or Carton package2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery3. Shipping freight are quoted under your requests4. Shipping port: Xiamen, China5. Warranty time: 2years6. Delivery time: 3-15 working days
