Full Color Outdoor LED Advertising Screen with High Brightness (P10, P8)
PRT Optoelectronic Co., Ltd.- IP Rating：IP65
- Pixel Pitch：10mm
Base Info
- Model NO.：P10-SMD3535
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display
- Average Power Consumption：350W , m²
- Pixel Density：10000 dot , m²
- Scanning Mode：1,4 Scan
- Display Type：LED Video Display
- Application：Advertising, Stage Performance, Rental
- Certification：CE, RoHS, CCC
- LED Encapsulation：SMD3535
- Module Size：320X160mm
- Module Resolution：32X16dots

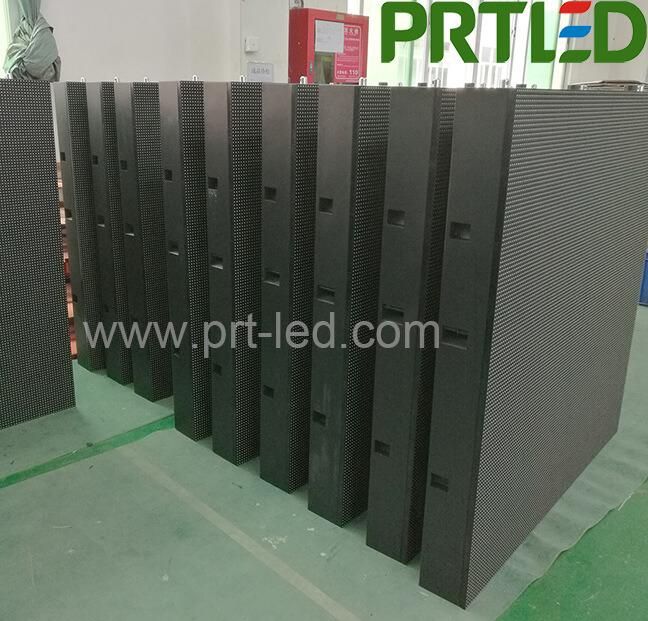

- Cabinet Size：960X960mm
- Transport Package：Wooden Case or as Required
- Specification：CE, FCC. ROHS, 3C
- Trademark：PRT
- Origin：Shenzhen China
- HS Code：8528591090
- Production Capacity：1000sq. M,Month
- Package size per unit product：96.00cm * 96.00cm * 15.00cm
- Gross weight per unit product：38.000kg
Description
P10 Outdoor full Color LED Screen SpecificationPixel pitch 10mm Pixel Configuration 1R1G1B LED component SMD3535 Size of module 320mm x 160mm Resolution of module 32 x16dots Size of cabinet 960mmx 960mm Resolution of cabinet 96x96dots Material of Cabinet Iron with back doors Weight of Cabinet 35 kgs /pc Brightness >6000cd/sq.m Density 10000dots/sq.m Best viewing angle 140º /140º Best viewing distance 10-100M Maximum power consumption <800W/sq.m Average power consumption <300W/sq.m Driving method 1/2 scan Control method Synchronization(connecting with computer) Gray scale 65536 Colors 256*256*256 Color temperature 3200-9300k Uniformity 97% Working voltage AC220V±10% Working temperature -20ºC~+50ºC±10% Working humidity 10% ~ 90% MTBF 10,000 hours Frame frequence 50/60Hz Refresh frequence >19200Hz IP grade(front/rear) IP65/IP54 Life Span 100,000 hours Data transfer method RJ45(DVI) Practical standard CCC TUV-CE ETL etc. Effective Communication
Distance(without relay) Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
