6, 000nits Brightness Nationstar LEDs P10 Wall-Mounted Billboard LED Display
Shenzhen Bako Vision Technology Co., Ltd.- Tube Chip Color：Full Color
- Display Function：Video Display
- Pixel Pitch：8mm
- Pixel Configuration：1R,1G,1B
- Pixel Density：15,625 Dots,Sqm
- Scanning Mode：1,8 Scan
Base Info
- Model NO.：BOF-B-4
- System Operating Platform：WIN XP
- Display Type：LED Video Display
- Application：Advertising
- IP Rating：IP54
- Certification：CE, RoHS, UL, CCC, ETL
- Material：Steel,Aluminum
- Usage：Outdoor LED Billboard
- Warranty：2 Years
- Gray Scale：16bit
- Brightness：6500 Nits
- Feature：Energy Saving
- Transport Package：Plywood Case
- Specification：320*160mm
- Trademark：Bako Vision
- Origin：China
- HS Code：8528591090
- Production Capacity：8000sqm Per Year
Description
Basic Info.
Model NO. BOF-B-4 System Operating Platform WIN XP Display Type LED Video Display Application Advertising IP Rating IP54 Certification CE, RoHS, UL, CCC, ETL Material Steel/Aluminum Usage Outdoor LED Billboard Warranty 2 Years Gray Scale 16bit Brightness 6500 Nits Feature Energy Saving Transport Package Plywood Case Specification 320*160mm Trademark Bako Vision Origin China HS Code 8528591090 Production Capacity 8000sqm Per YearProduct Description
6,000nits brightness nationstar leds P10 Wall-mounted Billboard Led Display
Billboard Led Display Product Description
High protection level
High brightness
60% Energy Saving
Lower Temperature
Billboard Led Display Parameters:
| BOF-B-3 | BOF-B-4 | BOF-B-5 | BOF-B-6 | BOF-B-8 | |
| Pixel Pitch | 3.2mm | 4mm | 5mm | 6.67mm | 8mm |
| Pixel Configuration | SMD1921 | SMD1818 | SMD2727 | SMD2727 | SMD3535 |
| Pixel Density | 97,656 pixels/m² | 62,500pixels/m² | 40,000pixels/m² | 22,376 pixels/m² | 15,625 pixels/m² |
| Module Size | 192*192 | 320*160 | 320*160 | 320*160 | 320*160 |
| Panel Size | 960*960*150 | 960*960*150 | 960*960*150 | 960*960*150 | 960*960*150 |
| Panel Resolution | 300*300 | 240*240 | 192*192 | 144*144 | 120*120 |
| Panel Material | Steel/Aluminum | Steel/Aluminum | Steel/Aluminum | Steel/Aluminum | Steel/Aluminum |
| Weight(sqm) | 65/45 | 65/45 | 65/45 | 65/45 | 65/45 |
| Contrast Ratio | 2000:1 | 2000:1 | 2000:1 | 2000:1 | 2000:1 |
| Brightness | 6500 nits | 6500 nits | 6500 nits | 6500 nits | 6500 nits |
| Refresh Rate | 1920 Hz | 1920 Hz | 1920 Hz | 1920 Hz | 1920 Hz |
| IP Rating | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 |
| Scan Method | 1/16 Scan | 1/8 Scan | 1/8 Scan | 1/10 Scan | 1/4 Scan |
Billboard Led Display Features:
Energy-Saving Technology
Cutting edge "cold display" technology
60% power lower than normal
50% tempearture less than normal
Fast Installation and Easy Maintenance
Fast lock system guarantees a quick and easy installation
Conventional Rear access
Outdoor Rated
IP65 rating Brightness adjustable for day and night
Selected LED for 7/24 work mode
Durable and Qualified Components
The most durable and qualified components are selected
Deliberate designs on waterproof and ventilation system

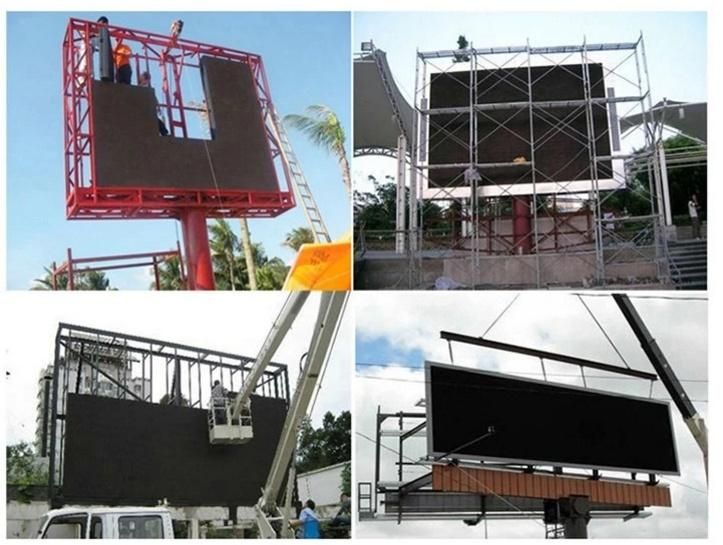

Installation:

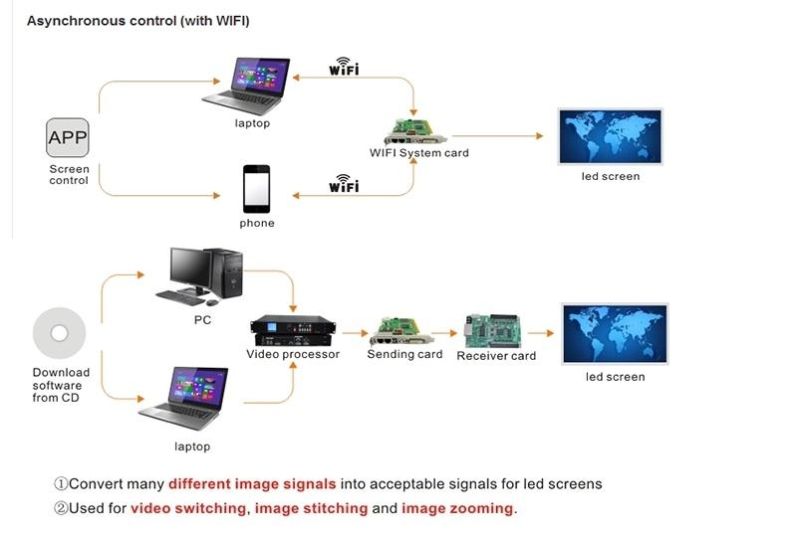

Control:

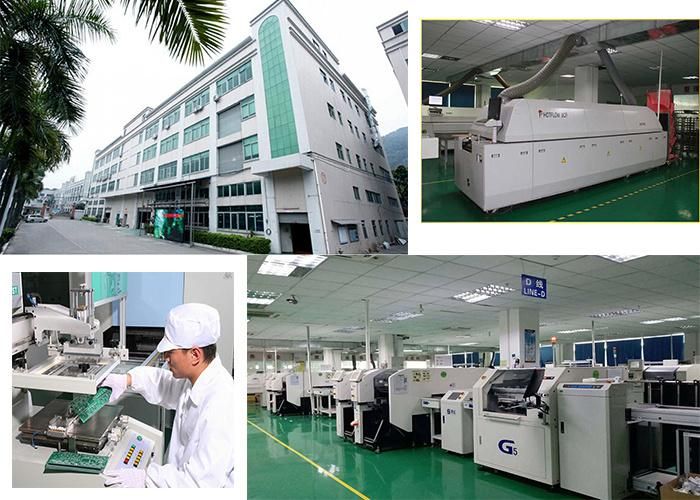

Company Introduction:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005,a world class manufacturer of technologically advanced LED displays,it is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION product lines have include I/O rantal,I/O fixed, UHD fine pitch, transparent screen,advertising poster,foldable screen… meanwhile, based on our experienced R&D team,and comprehensive management , we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
Our Services
1.Reply enquiries in 24 hours.
2. Provide unique and professional solutions based on customer's requirement.
3.Market research and forecast for customer.
4)Protection of your sales area,ideas of design and all your private information
5)Top Quality+Reasonable Price+Responsible After Service
