• Model NO.：K6160-2
• System Operating Platform：Windows
• Display Type：LED Video Display
• Application：Stage Performance, Advertising
• IP Rating：IP65
• Certification：CE, RoHS, CCC, ETL
• Cabinet Materiel：Steel
• Drive IC：Mbi5124
• LED Lamp：SMD2727
• Brightness：6500nits
• Refresh Rate：1920Hz
• Module Size：192*192mm
• Control System：Novastar
• Transport Package：Wooden Case
• Specification：768*768mm
• Trademark：KEASYLED
• Origin：China
• HS Code：8528591090
• Production Capacity：10000000 M2 , Year

Technical  SpecificationsNOProduct nameoutdoor P6 led display1Pixel Pitch(mm)6mm2Pixel configuration1R1G1B/  3Pixel density27,777 dots/m24Brightness 6500cd/m25Module size(W*H)192*192mm6Module Resolution (W*H)32*32dots7Module weight500g8Cabinet size (W*H)640mm×640mm9Drive ICMBI512410Drive mode1/8scan11Viewing Angle(V/H)120ºC12Grey Scale65536 degree13Life time>100,000 Hours (50%)14MTBF>50,000 Hours15Operating VoltageAC110V/220V±10%17Screen Power ConsumptionMax: 1400w/m2; Average:460w/m218Input Power Frequency50/60Hz19Operating temperature -30--60ºC20Humidity10%-95%21Refresh Rate≥1920HZ22Control MethodSynchronized with computer monitor23Color Temperature6500K-9500K24LED control systemLINSN,Nova-star,Colorlight is selectable25Control Distance100 m (no repeating); Optical fiber transmission: 500m- 15km26Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI27Systems Operating PlatformWindows Xp / Windows 7 / windows 8 /8.1 / windows 1028Working Humidity    10%-90%RH29Control System    Synchronization or Asynchronization30Warrenty   2 Years31Working Environment    OutdoorNote: The above parameter is just for reference. Change can be made by customer requirement

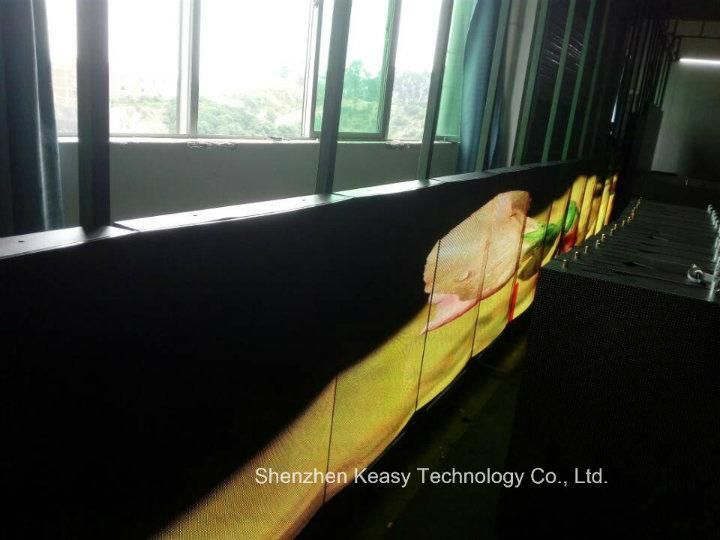

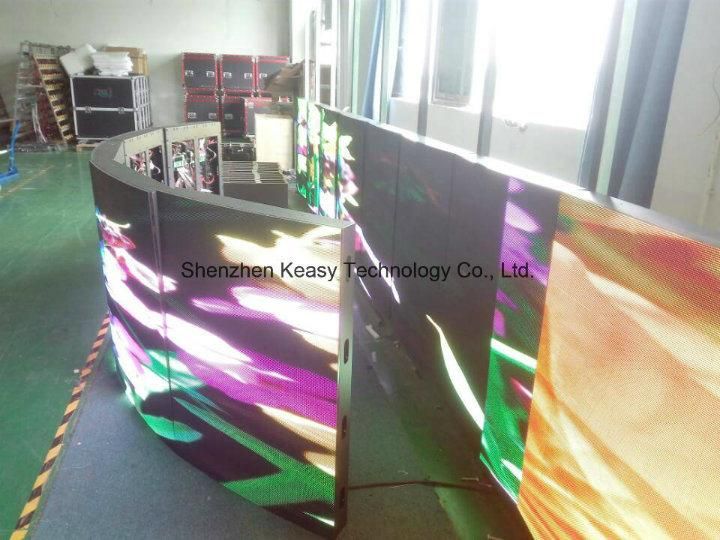

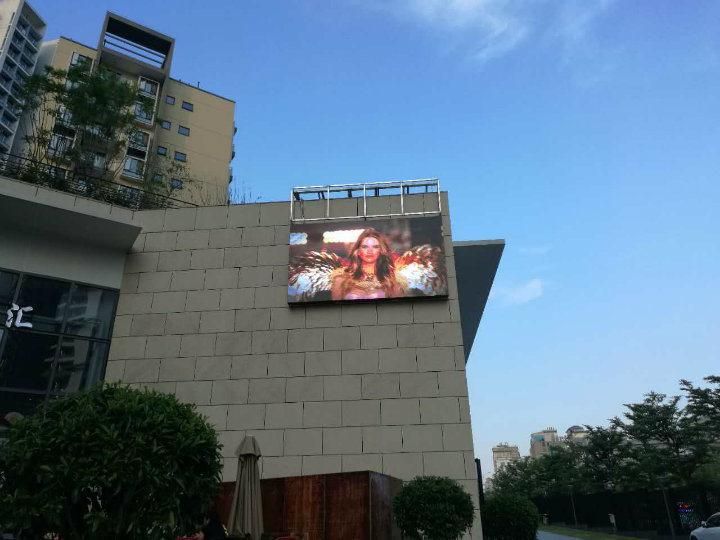

Project pictures:









Applications:
 Business Organizationssuper market, shopping mall, office building, industrial park, exclusive agency, chain shop, hotel, restaurant, travel agency, pharmacy, etc.Financial Organizationsbanks, security company, insurance company, post office, hospital, school, etc.Public Placessubway, airport, train/bus station, gas station, toll station, bookstore, park, exhibition hall, stadium, museum, convention center, ticket center, HR market, lottery center, plaza, commercial building, parking lot, etc.Entertainmentsmovie theater, fitness hall, country club, night club, massage room, bar, cafe, Internet bar, beauty shop, golf course, casino, etc.


Our services:

1.Your inquiry about our products or the price will be replied within 24 hours!

2.We provide 2 years for warranty and lifelong maintaining, you will appreciate our warm after-sale service.

3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!



Trade Terms:

1.Packing: Wooden case

2.Shipping port: Shenzhen. China

3.Shipping freights are quoted according to your requests

4.Delivery time:20 working days

5.One year warranty, lifelong maintaining. In the Maintenance period, free of all maintenance charges.
After Maintenance period, only charge the material cost fees.
