High Resolution P3 Black SMD Indoor LED Display for Advertising (IF3)
Shenzhen Ledful Electronics Co., Ltd.- Tube Chip Color：Full Color
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Pixel Pitch：3mm
- Pixel Configuration：1R,1G,1B
- Pixel Density：111111 Dots,Sqm
- Scanning Mode：1,32
Base Info
- Model NO.：IF3
- System Operating Platform：WIN XP
- Display Type：LED Video Display
- Application：Stage Performance, Advertising, Shopping Guide
- IP Rating：IP43
- Certification：CE, RoHS, CCC, FCC,ISO9001:2008
- LED Chip：Epistar
- Warranty：3 Years
- Certificate：CCC Ce RoHS ISO
- Life Span：100000 Hours
- Control System：Nova
- Input Voltage (AC)：110V , 240V
- Grey Scale：16bit
- Screen Dimension：Customized
- Cabinet Material：Iron
- Service Access：Front,Rear
- Refresh Rate(Hz)：3840
- Viewing Angle(H/V)：160,160
- Cabinet Weight：11kg ,24ib (Iron)
- Working Temperature：-20 Degree~ +60 Degree
- Blind Spot Rate：<0.0001
- Transport Package：Flight Case or Plywood Boxes or as Your Request.
- Specification：960x960mm
- Trademark：LEDFUL
- Origin：Guangdong, China (Mainland)
- HS Code：8528591090
- Production Capacity：2000 Sqm,Month
Description
Parameter-IF3Pixel Pitch(mm) 3 Cabinet Weight 11kg /24Ib (Iron) Pixel Matrix Per Sq.m 111111 Power Con. (Max / Avg) 550 / 138 w/sq.m Pixel Configuration SMD2121 Refresh Rate (HZ) 3840 Brightness (nits) 1000 Service Access Front / Rear Scan 1/32 Grey Scale (bit) 16 Module Dimension 192x192mm / 0.63x0.63ft Viewing Angle (H/V) 160 / 160 Cabinet Dimension 576x576mm / 1.89x1.89ft IP Rate IP43 Cabinet Resolution 192x192 Input Voltage (AC) 110V / 240V
★Excellent heat dissipation and noiselessness
★High-performance metal plate cabinet design
★Macro molecular flexible mask with glare-less surface on LED modules
★High definition and could be adjusted with various pixel pitch, so it can meet the request of the clients according different application environments.
★Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light to make LED display great performance.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

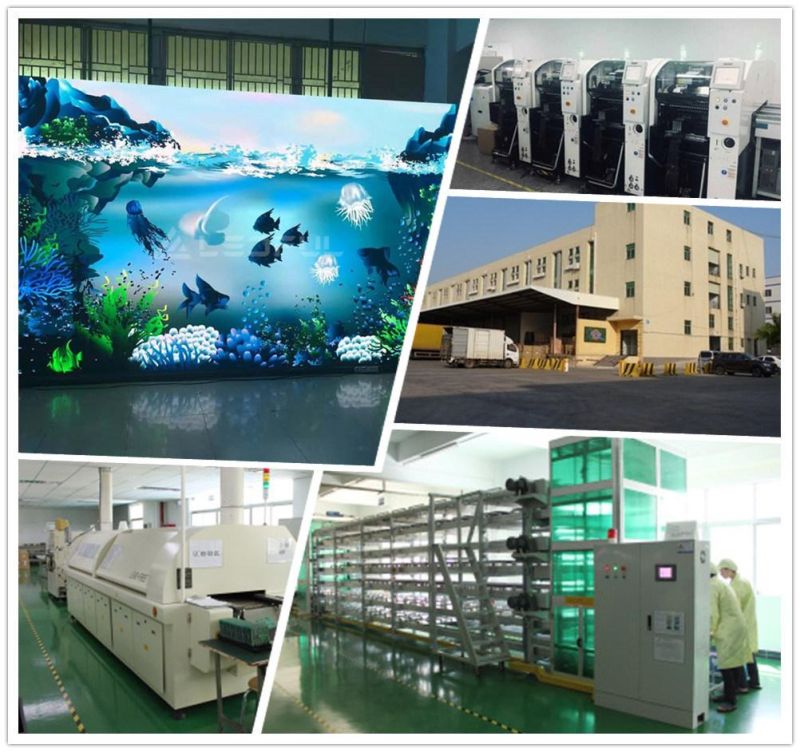

Our Factory
How We Do
One-stop solution provider. More designs and more solutions
Wireless control, 4G, Wifi, Cluster control.Truss hanging, stacking, touring, LED ceiling, video floor
Irregular shaped, flex, curved, round, sphere, cubic, customized.Focus on the improvement and innovation of rental LED cabinets
High efficient and enthusiastic team to make reliable LED display .Our partners are Media Companies, Stage Designer, Project Manager,
Pro Audio, Light and Video companies, AV Rental Equipment companies,Advertising Companies, Entertainment, Show, Event, Rental Cooperation, etc.
Professional, High Efficient and Caring
Why Choose LEDFUL
Deep Customized & OEM.Listen to you, think more for you.
Lifelong maintenance with reasonable price.Clear cost initially to save your time and money.
Provide with innovative and satisfying products.Excellent product quality, quick and professional services
Always ready for your any change on LED display details.Recommend the best proper solution for your LED project.
Catch things what you missed before LED display production.Take good care of each detail for your products, packages,shipping
Best Balance of Quality & Price
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
Our Service1. Pre-sales Service
A. Quick Response to Inquires and Demands
B. Technical Solution with Quotation and Specification
C. Professional Salesman and Engineers Recommendation
2. In-sales Service
A. Installation Guidance and User Manual
B. Software Control on site or Remote Support
C. Training and Important Notice
3. After-sales Service
A. Timely Solution for Any Questions
B. Spare Parts Is Sent Together with LED Display
C. Software Upgrade and Hardware Maintenance lifetime
4. Warranty | Maintenance
LEDFUL guarantee all our LED displays for 3~5 years. We will be responsible for repairing LED display including LED modules, power supply, receiver cards under warranty and supply technical support.
5. Design | Drawing
LEDFUL design the CAD drawing on how to fix up the LED display for free and some other expert suggestion. We will send our engineers to your place if we are expected after our negotiation.
6. Installation | Control
LEDFUL provide the operation training and maintenance training for free in the factory. Or we can send our engineers to your site by negotiation. Manual, control solutions, software, etc is provided together.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
Warm Welcome to Contact Us
Shenzhen LEDFUL Optoelectronics Co.,Ltd
Mobile/ +86 13165657821
Website: http://ledful.en.made-in-china.com
Add: Building C, Huifa Industry Park,Fuyong,Bao'an,Shenzhen,China
