• Model NO.：p6
• Pixel Density：27777DOT,M2
• Scanning Mode：Static Scan
• Display Type：LED Video Display
• Application：Cultural Square, Shopping Mall, Park
• Certification：CE, RoHS, FCC, SGS
• Product Name：P16 Outdoor LED Display
• IC：Mbi 5124,5153
• Color Temperature：6500-7000K
• Refresh Rate：1920Hz
• Display Contrast：2500:1
• Frame Rate：60Hz,S
• Service Life：100000h
• Use Voltage：AC 90-240V
• Cabinet Size：Customized
• Maximum Power Consumption：1000W,M2
• Transport Package：Flight Case ,Wooden Case ,Carton
• Specification：192*192 mm
• Trademark：Honghui
• Origin：Shenzhen, China
• HS Code：8528591090
• Production Capacity：3500 Sqm ,Month

        Outdoor Full Color P6/P8/P10 Curve LED Display for Billboard1HD small pixel LED displayP1.5625 /  P1.667/  P1.923/  P2             2Hot rental LED displayP3 /P3.91 /P4 /P4.81 /P5.95 3Outdoor fixed LED displayP4/P5 /P6 /P8 /P10 /P16 /P204LED Control SystemNova Star / LINSN /Colorlight /Listen 5LED Nation Star /Epistar /Kinglight6IC MBI5124 IC 7Power supply Meanwell / G-energy 9Cabinet kind Iron /Aluminum /Die-casting /Fiber Aluminum            1Pixel Pitch 6 mm 2Cabinet Size cutomized3Pixel density 27,777 dots/m24Color temperature6000K--8000K5Viewing angleH:140;V:1406Dead LED lamp rate≤0.1‰7Non-Flatness<0.2mm8Module interval<0.2mm9Packaging Gross Weight(KG)15-20kg (Estimated data)10Packaging dimensionup to cabinet size(6cabinet in one case)11Maximal power/m2 800W/m212Brightness adjusted256 grade by auto-optic/color &8 grade by hand13Input signalRF,S-video,RGB,RGBHV,YUV,YC&Composition,etc14Life-span ≥1 00,000 hours15MTBF 5,000 hours16Frame frequency25 - 60 Hz / s17Refresh rate≥2,000 Hz  / s18Single Input(with video processor)HDMI, DVI, VGA, RF, S-Video, RGB, RGBHV, YUV, YC&Composition, etc.19Control Distance120 m (no repeating); Optical fiber transmission: 0.5km- 10km20Systems Operating PlatformWindows XP, Win 7, Win8, Win8.1, Win10

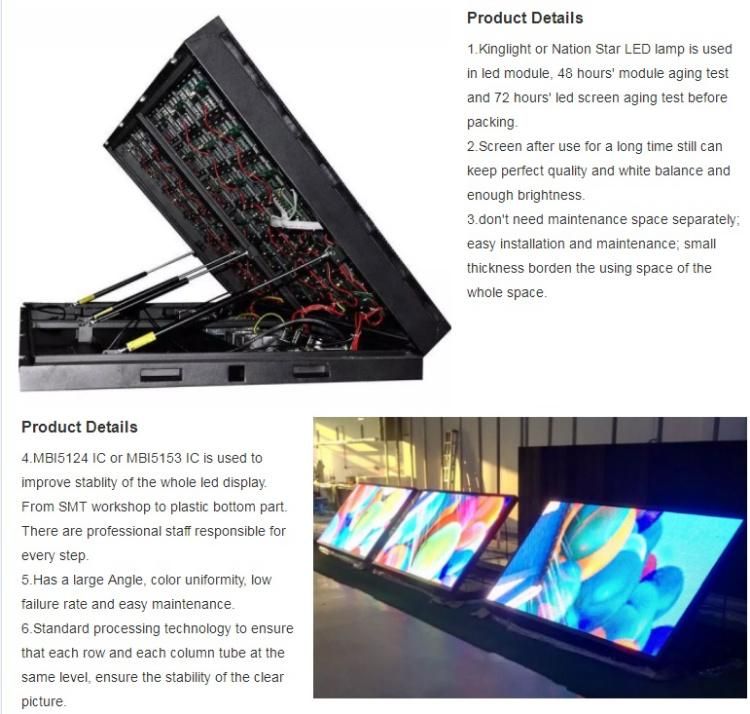

Product Details

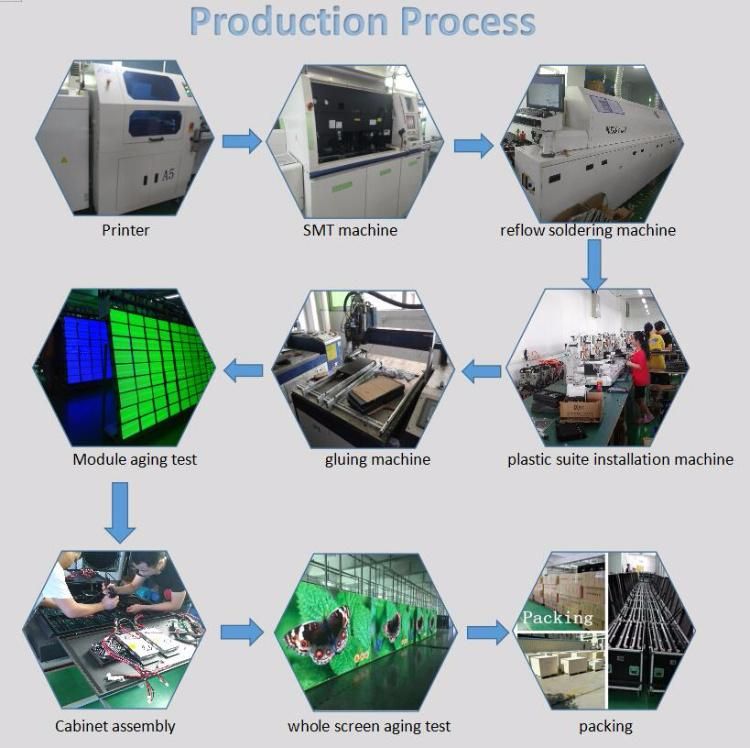

Production process

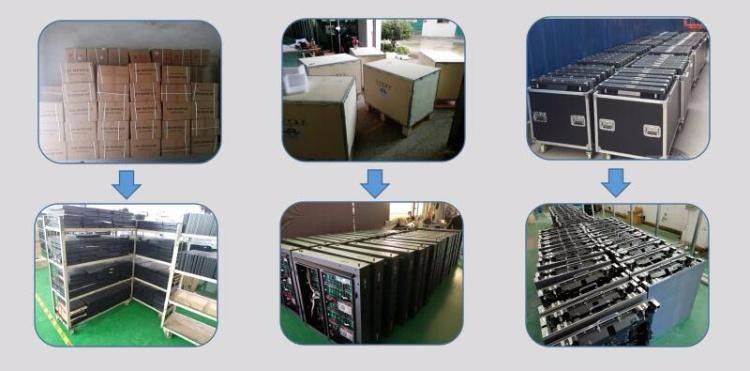

Package

Carton	Indoor or outdoor led display module
Wooden case	Indoor or outdoor fixed led display cabinet
Flight case	Indoor or outdoor rental led display cabinet

Certificates




Our Factory and Our Service

Factory: 1st-3rd floor of the whole factory
1st: SMT Workship and screen assambly workship
2nd: office and meeting room
3rd: module aging room, module workship and warehouse.



Service:
1.Pre-sale service:
Reply inquiries in 24 hours.
Unique and professional solutions will be provided based on customer's requirement
Show clients around the factory when coming to visit, video call is also ok if no time to come but want see the factory.

2.In-sale service:
Tracking report in producing.
Quality test report for every order.
Photos and videos as per customer's requirement.
Free spare parts be provided.

3.After-sale service:

Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

Free technician training.

Installation manual be privided, if there are something need help in installation or operatiing the screen, engineer will be arranged to guide remotely;
if remote help can not solve, engineer can come to your city to help

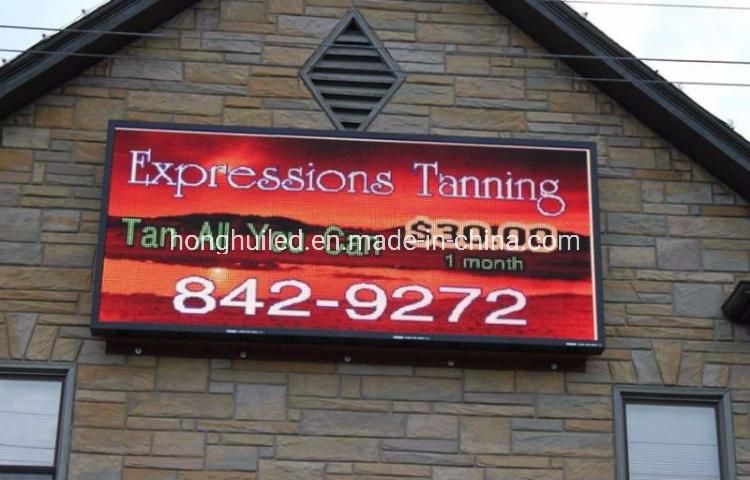

Application





FAQ

Question 1: How can I trust your HONGHUI LED factory ?

Answer : We specialized in led since 2009, it is over 8 years. In the past 8 years, we develop so well. Tomorrow and future, we will largely expand our LED market, you will see it . Welcome to try our LED sample quality . We do have100% confidence in our LED product.

Question 2: What is the warranty of your led display?

Answer: We have warranty of 2-5 years.

Q3:Is it easy to install this led display ?

Answer : Installation manual book or video will be provided to you. If you still have problem on it, we will arrange professional engineer to guide you remotely or to your place help you.

Q4: What's your payment term? How long is your delivery time ?

Answer: We accept T/T, ALIBABA Trade Assurance, Western Union and Cash. At least 30-50 % deposit in advance, and the balance should be paid before delivery.
