• Model NO.：16mm
• Pixel Density：3906dots,Sqm
• Scanning Mode：Static Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：256X256mm
• Module Resolution：16X16dots
• Cabinet Size：1024X1024X150mm
• Cabinet Resolution：64X64dots
• Protection Grade：IP65
• Screen Brightness：7500nits
• Ave. Power Consumption：230W,Sqm
• Certificates：Ce
• Service：Rear , Front
• Controller：Nova,Linsn
• Transport Package：Wooden Case
• Specification：1024x1024mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

NO.ItemParameter1ModelF162Pixel Pitch(mm)163LED Configuration1R1G1B4LED TypeDIP3465Screen Resolution3906dots/sqm6Module size(mm)256x2567Module resolution(dots)16x168Scan methodStatic constant current drive9Cabinet size(mm)1024x102410Cabinet resolution(dots)64x6411Cabinet materialIron / Aluminum12Brightness(cd/sqm)≥750013Viewing angleH:120°/  V:50°14Grey Scale16bit15Refresh rate(Hz)≥350016Ave. power consumption (W/sqm)23017Max. power consumption(W/sqm)75018IP gradeF:IP65 / R:IP5419ControllerNovastar / Linsn20MaintenanceRear service/ Front Service21Color(T) >28122Input Voltage(V) AC 110V-220V +/-10%23Frame frequency(Hz) 6024Working humidity 10~95%RH25Working temperature -30ºC~60ºC26Certificates RoHS / CE / CCC

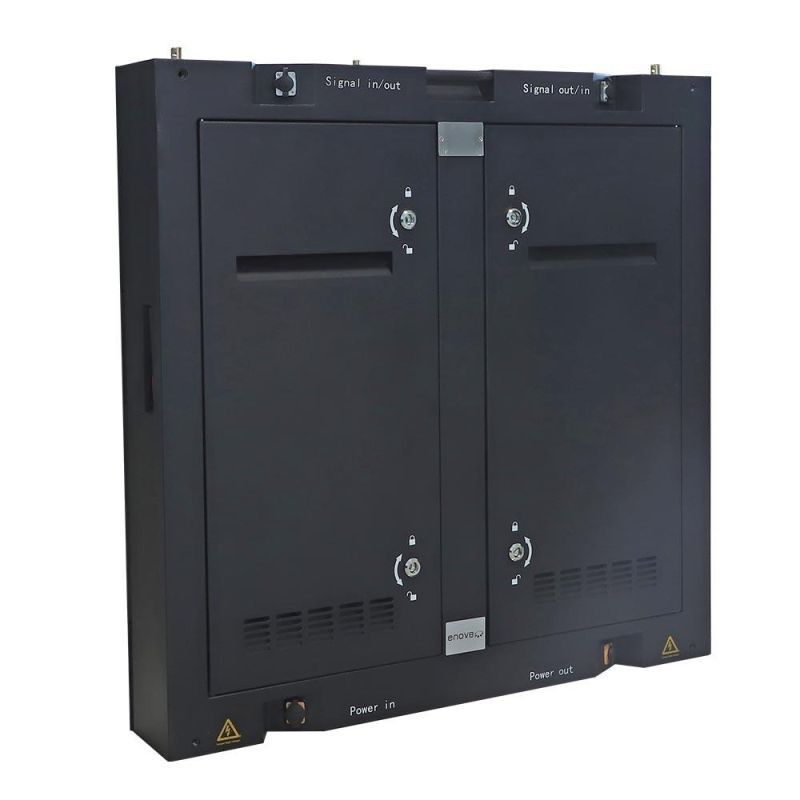

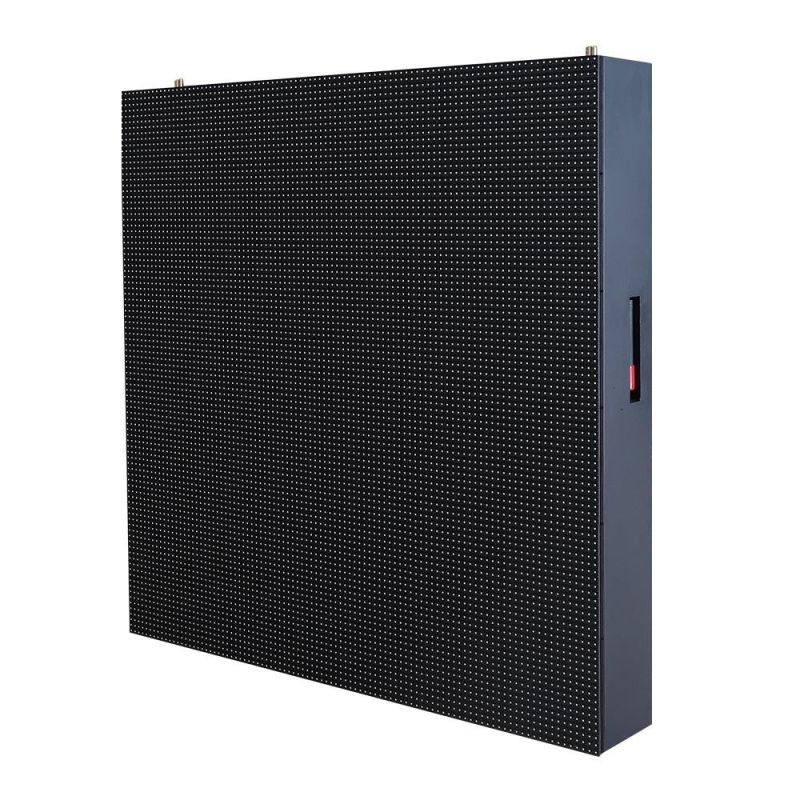

LED Display panel photo:

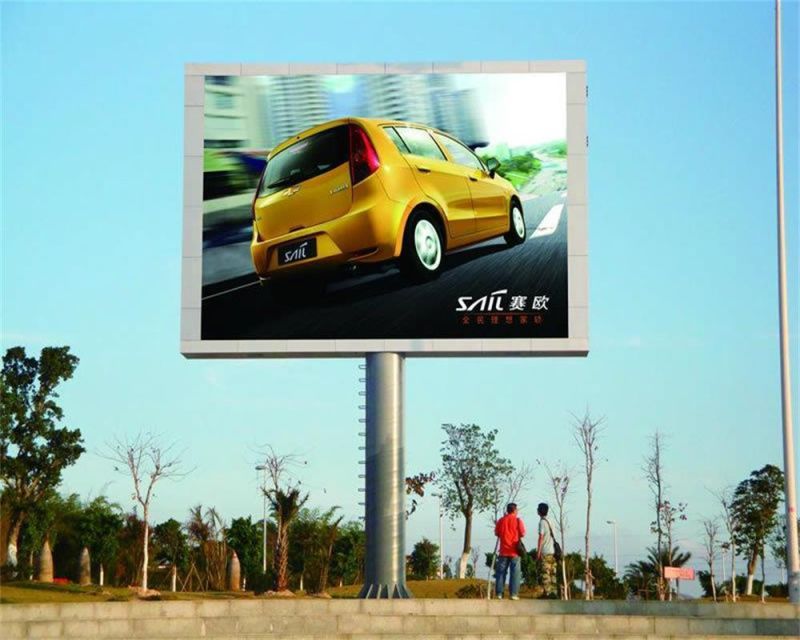

Unipole standing on the roadside :

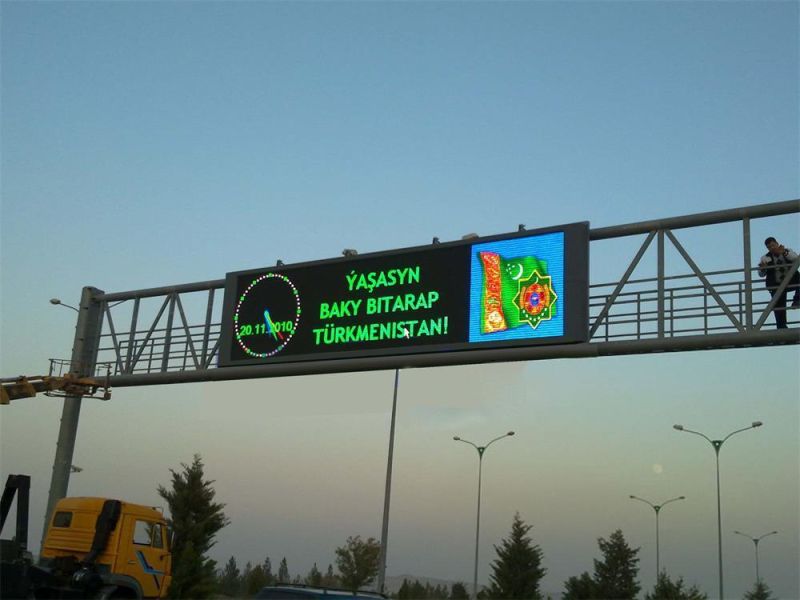

Brige LED screen in the centor of road :

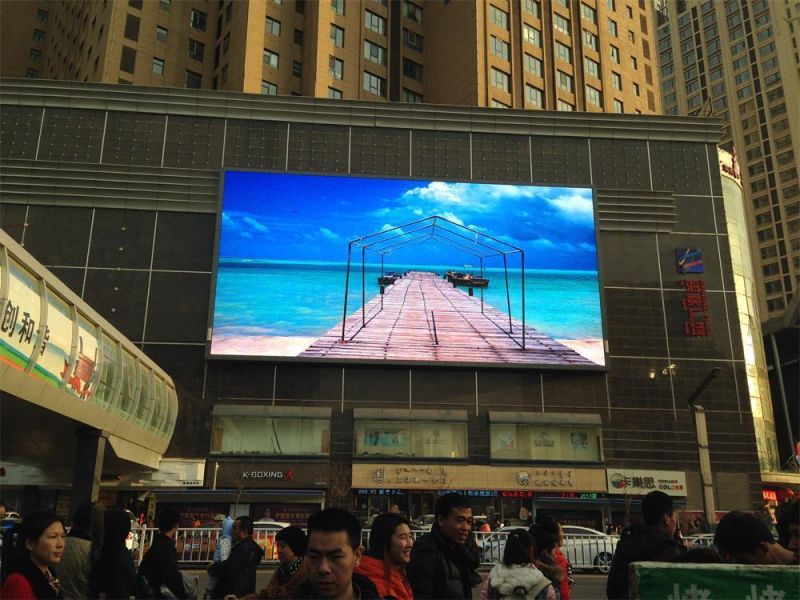

Wall -mounted on the building :

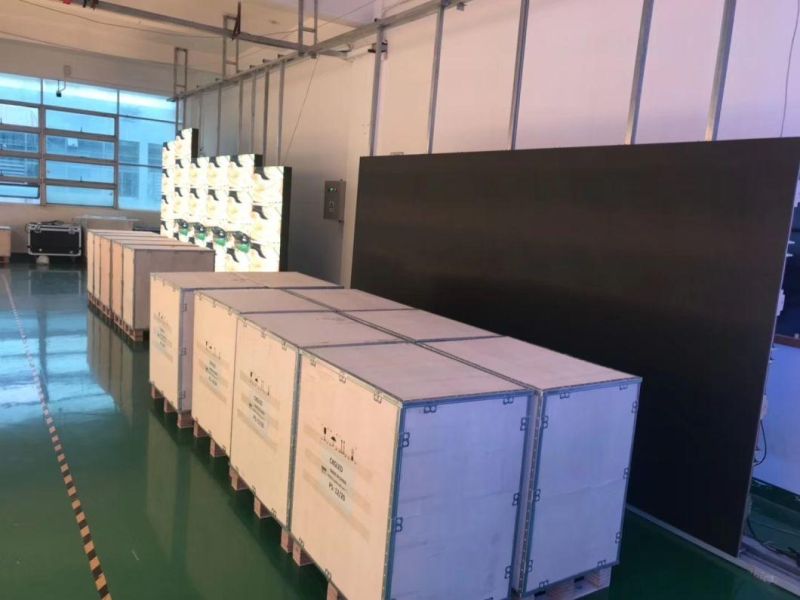

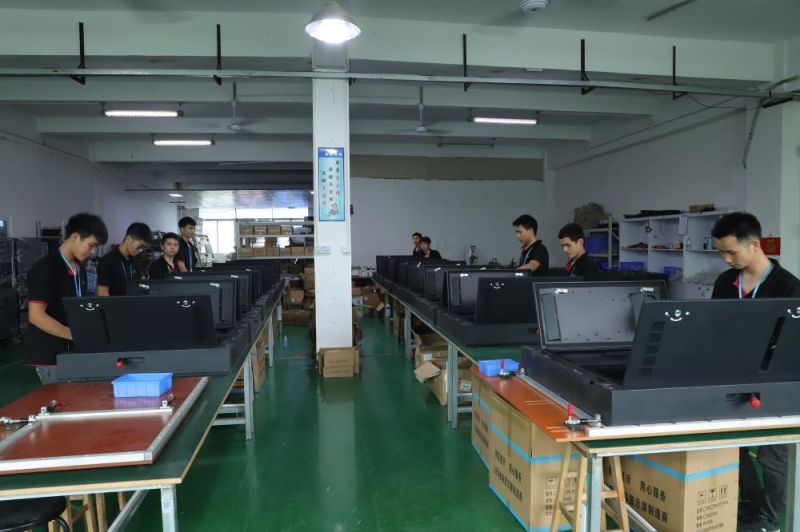

Factory photos :





Package:

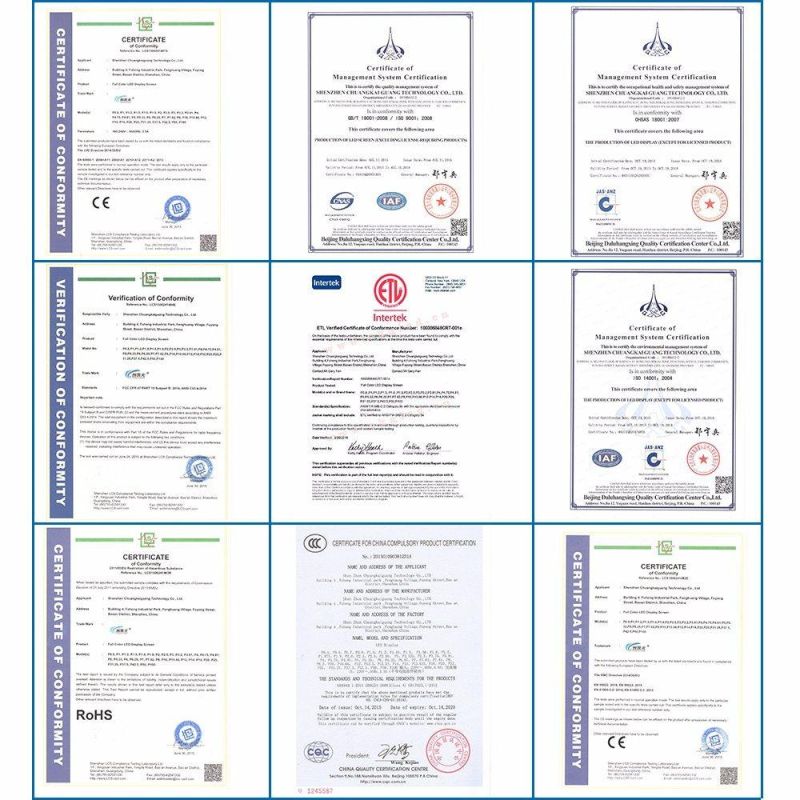

Certificates:
